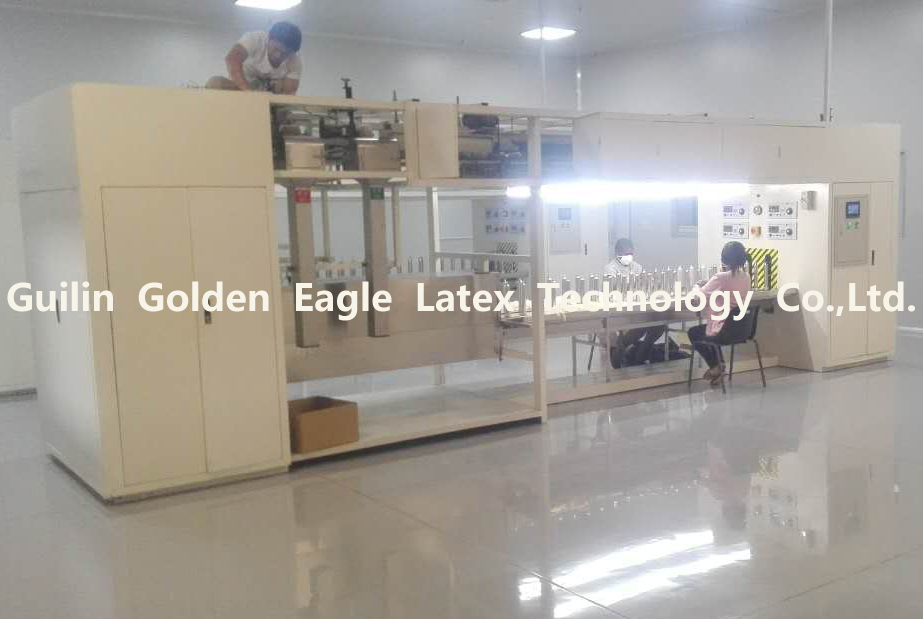

Condom Dry Type Electric Testing Machine

Condom Dry Electric Testing Machine Technical parameters:

1. Double chain transmission structure.

2.Intelligent mould with memory function.

3. High pressure testing in individual over-long region at head and body part.

4. Adopt braking electric motor to separate the qualified and the rejected.

5. Testing data can be shown and saved on computer.

6. Overall Integrated design, can be work once powering on.

7. Overall installed capacity: 6.2KW.

8. L7.3m x W1.7m X H2.3m

9. Maximum testing capacity: 270 condoms per minute.

10. With below 0.2 of the pinhole process average value and 98% of the product passing rate after testing, Below 30% of the false rate.

11. With common button control and touch screen control for clients to choose.

Technical Characteristics for Condom Dry Electric Testing Machine (Twice testing):

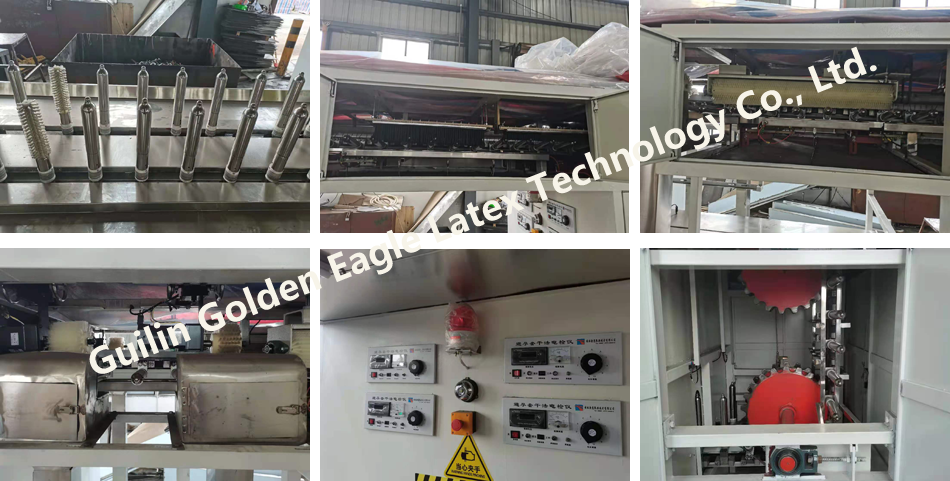

Guilin Golden Eagle Latex Technology Co., Ltd. is based on the business philosophy "Golden Eagle aims lofty&far-reaching", and has always been in persistent pursuit of innovation breakthrough, and keeping pace with the times. After constant exploration and practice, based on the great success of the first and second generation of condom dry electric testing machine with energy conservation and environmental protection, recently the company solemnly launches the third generation of the condom dry electric testing machine. It’s made up of high pressure module, testing control module, intelligent mould and computer control etc. It adopts modern advanced computer programming controller, and use imported braking electric motor separation, and ensures the machine steady running, reliable and accurate detection. It improves the quality assurance of the testing products to a new height.  The pinhole leakage AQL value is well below the requirement of national standard. At the same time, the false rate is better than the wet electric testing machine recently used.

The third generation of condom dry electric testing machine is totally powered by electricity. No compressed air, water and steam is required. Its motor power is only 1.1KW. It creates favorable conditions for companies in energy conservation and emission reduction, safety and environmental protection and production cost decrease. Also it has the advantages of light weight, small occupation, easy installation, convenient adjustment and maintenance etc.

About Us

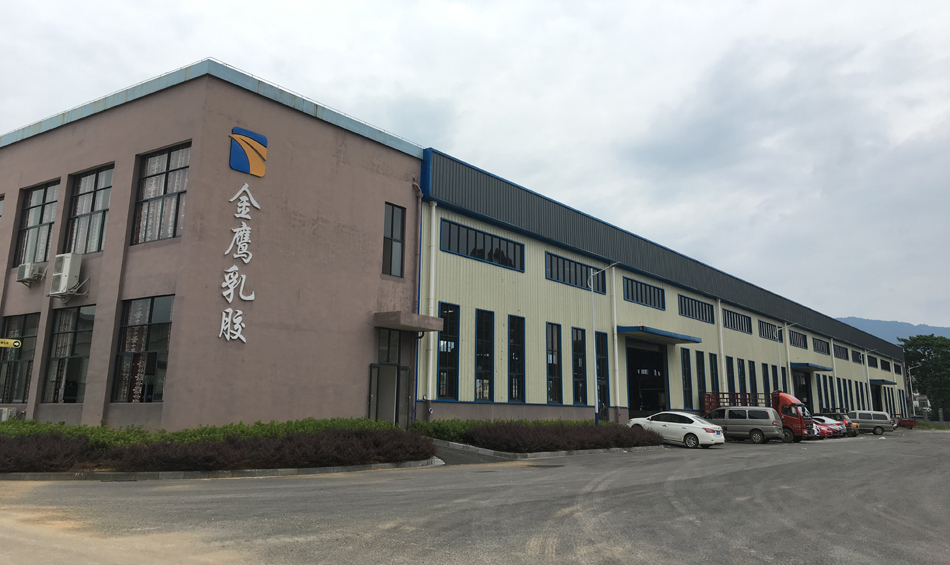

Guilin Golden Eagle Latex Technology Co., Ltd. founded in 2004, is the first latex professional technical company in China, specialized in latex product production, production training, equipment design, process design, manufacture and installation of equipment, enterprise management consulting. In the year 2012, Golden Eagle is elected the vise chairman unit of China Rubber Industry Association Latex Branch, and at the same time, Mr. Huarong Cao, the general manager, is elected the vise chairman of China Rubber Industry Association Latex Branch. We have the right to operate foreign trade.

Over the past seventeen years, we have designed, made and installed more than 200 production lines of medical gloves, nitrile gloves, condoms, labour protection lined latex-dipped gloves, and condom dry type electric testing machines. Successfully provided technical services for dozens of latex manufacturers, including many well-known domestic latex manufacturers, and there are also newly established latex enterprises.Even more to the point, in recent years, the latex production line and testing equipment independently developed by our company have been exported to South Africa, Uzbekistan, Iran, Kazakhstan and other countries, and have been won critical acclaim. It has been proved that the latex product whole set equipment developed by Golden Eagle are favored by many enterprises all over the world.
