250W BIPV Customized Double Glass Mono Black Solar Panels On Buildings
Main Features
1. Solar power generation, supply clean energy for green buildings.
2. Completely according with national standards for building materials.
3. Higher strength, wind resistance, strike resistance, safer.
4. Sound insulation, heat insulation, effectively resist outside environment intrusion.
5. Intelligentized & humanized, regulating light, comfortable and convenient.
6. Provide a new aesthetics decoration effect for modern construction.
7. Integrating multiple functions, energy conservation and cost reduction.
8.Half-cut cell technology, increase power ouput, reduce cracking risks, impove module reliability.
Performance parameters
| 250W BIPV Customized Double Glass Mono Black Solar Panels On Buildings | ||
| Model | DDN250 | |
Electrical parameters | maximum power Pm (Wp) * | 250 |
| power tolerance (%) | ± 5 | |
| maximum power voltage Vmp (V) * | 23 | |
| maximum power current Imp (A) * | 10.86 | |
| open circuit voltage Voc (V) * | 27.25 | |
| short circuit current Isc (A) * | 11.75 | |
| maximum system voltage (V) | 1500 | |
| Efficiency(%) | 19.2 | |
| working temperature (℃) | -40~85℃ | |
| temperature coefficient of Pm Tk (Pm) | -0.3%/K | |
| temperature coefficient of Voc Tk (Voc) | -0.39%/K | |
| temperature coefficient of Isc Tk (Isc) | +0.06%/K | |
Mechanical parameters | fault structure (mm) | 2mm tempered glass + 0.76PVB + Mono cells + 0.76PVB + 2mm tempered glass |
| cable | 4mm2/1200mm | |
| product dimension | 1360mm*1036mm*5mm | |
| product weight | 15kg | |
| wind loads resistance | 2.4KN/m2 | |
| Cells No. | 84(6*7*2) | |
Benefits from Rixin solar :
1). Enjoy our Excellent quality, competitive price, prompt delivery and on-time service
2). High efficiency, high safety, High stability ,high reliability
3). Customized design is available, OEM is welcomed
4). Optimized Packaging to protect product during loading and delivery .
5). Strong productive ability and quick delivery .

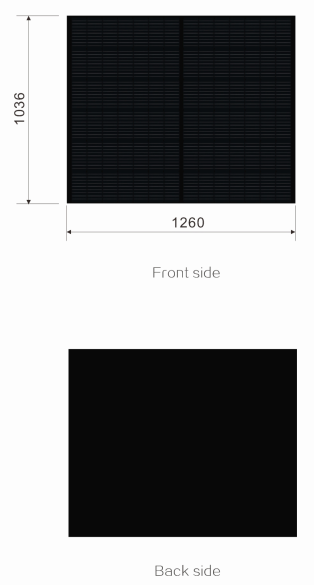

Drawing(mm)
Quality Warranty
30-year power output guarantee
50-year operation lifetime
