1100 Straight Line Double Side Lock Bottom Folding Gluing Machine
Folding And Gluing Machine Characteristics
1. Driving by V-ribbed belt,ensure smooth and accurate running.
2. Inverter driving,stable and power saving.
3. Use electric adjust,easy operate.
4. Automatic continuous feeding,use multiple belt with vibrating motor ,to keep the feeding stable.
5. Automatic counting and kicking,quantity can preset.
6. Conveyer pressure adjustable according to the box to ensure best quality.
7. The machine is configured with remote control,Remote troubleshooting, update the program.
Folding And Gluing Machine Parameter
| Model | HF-GBL1100 |
| Suitable material | Card board210gsm-850gsm,E,F,N flute corrugated board |
| Max method | Automatic continuous feeding |
| Max mechanical speed | 400m/min |
| Overall dimension | 19700*1950*1900mm |
| Weight | 11.5T |
| Glue type | Cold glue |
| Power consumption | 30.5KW,380V 50HZ |
| Compressed air | 6 bar,10 m3/h,60 L |
| Inching speed | 30 m/min |

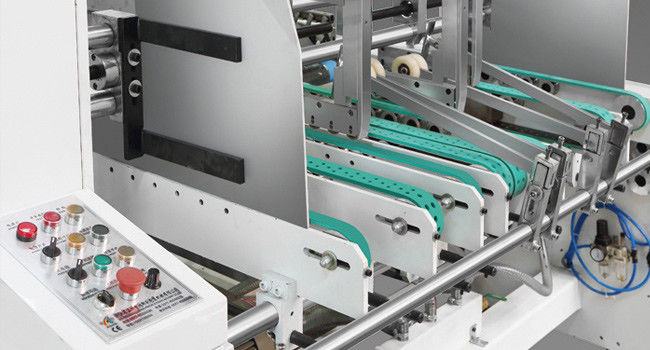

Main units
 |
Equipped with vibrating motor. With ,low noise,with front adjustable wheels,max working capacity can be achieved. Feeding knives and left and right registers fixing bar are controlled up and down by pneumatic system easily.
|
 |
Bottom locked unit
Lock-bottom assembly mechanism with high elastic hookers is of deal design,fast and easy operation.
|
Standard & Optional configuration list
| Configuration | Units | Standard | Optional | |
| 1 | Feeder section | √ | ||
| 2 | Paper Alignment Section | √ | ||
| 3 | Pre-fold Section | √ | ||
| 4 | Crash lock bottom section | √ | ||
| 5 | Upper paste barrel equipment | √ | ||
| 6 | Down pasting equipment(R+L) | √ | ||
| 7 | Gluing system | √ | ||
| 8 | Grinder device | |||
| 9 | Plasma treatment system | √ | ||
| 10 | Folding and closing section | √ | ||
| 11 | Trombone section | √ | ||
| 12 | Press section | √ | ||
| 13 | Table (one) | √ | ||
| 14 | 4-6 corner | √ | ||
| 15 | monitor | √ | ||
| 16 | Double-sided adhesive | √ |
Machine configuration
| Main motor | Siemens |
| PLC | Siemens |
| Inverter | Siemens |
| Touch Screen | Siemens |
| Driveing Bearing | NSK |
| Main axis | Taiwan chrome plated steel bar |
| Wall thickness (right +left side) | 20mm tempered |
| Feeding belt | NITTA |
| Plain belt | NITTA Japan |
| Low voltage apparatus | Schneider(Rely,Button,Circuit Breaker,a.c. contactor) |
| servo system | Delta Taiwan For 4&6 corner box |
| Gluing system | KQ for 4&6 corner box |
| Encoder | Panasonic |

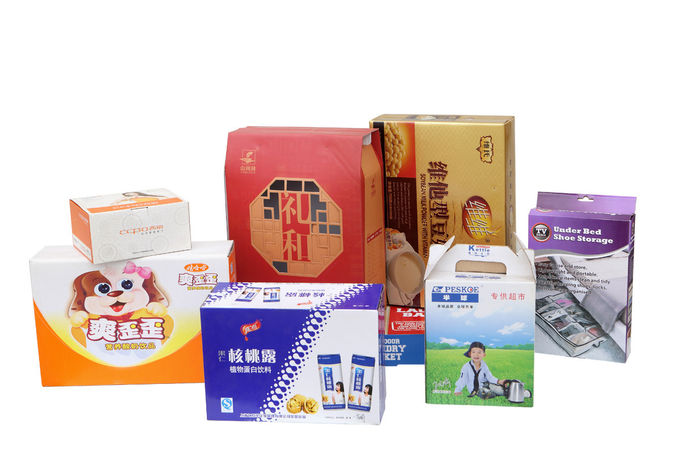

Finished Product
