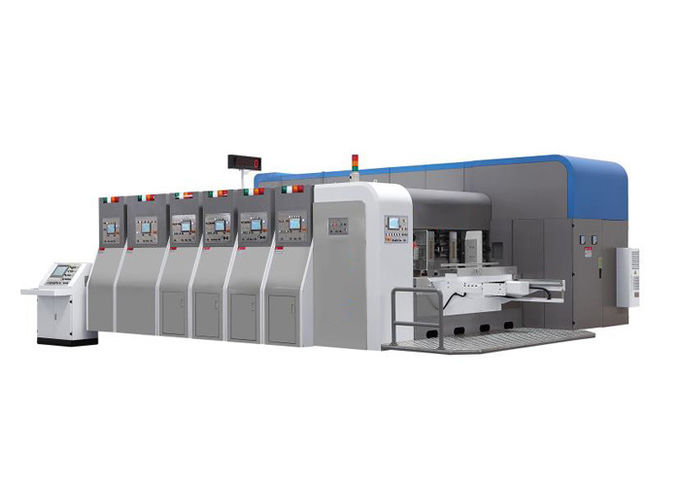

1200 Four Color Carton Box Flexo Printing Machine With Slotting Die Cutting Gluing Strapping

Machine Introduction of Flexo Printing Machine

1. Choose high-quality materials and accessories. All drive rollers are made of high-quality steel, plated with hard chrome, and surface ground.
2. Imported transmission gears , which are hardened and ground, with hardness >60 HRC.
3. Automatically return to zero and automatically reset.
4. The automatic oil balance device keeps the oil of each unit at the same level.
5. Independent computer control, can store previous orders, the number of stored orders can reach 9999. Quick change of orders and more convenient operation.
6. Emergency stop switches are set in each unit, which can stop the movement of each unit internally to ensure the safety of operators.

Parameter Flexo Printing Machine


Main units

Leading edge paper feeding unit   ⑴ It can feed paper continuously or at intervals (with counter). ⑵ Sun provides the most advanced system, which can adjust the paper feeding stroke and reduce the pressure of the paper pulling roller.

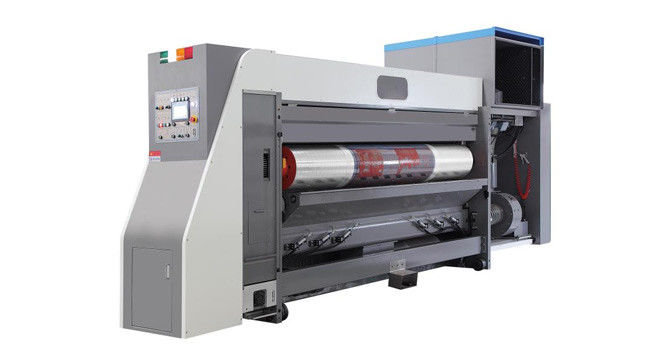

Printing unit ⑴ The printing roller is made of high-quality steel, the surface is ground and hard chrome plated. ⑵ Balance correction, stable operation. ⑶ Plate hanging on the reel adopts locking devices on the left and right sides to make the plate hanging accurately aligned.

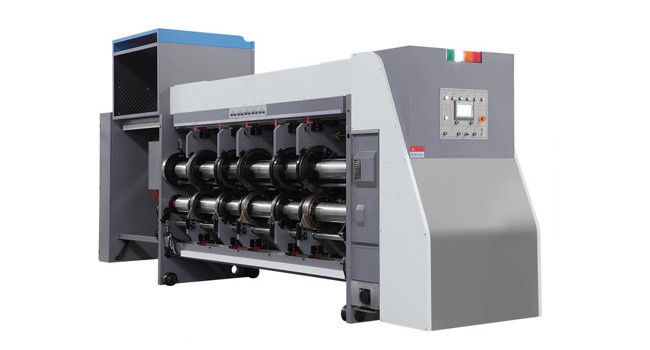

Slotting unit ⑴ The creasing shaft is made of solid steel, polished, and the surface is plated with hard chrome. ⑵ The first set of creasing roller, the cardboard after pre-press is not easy to be crushed.

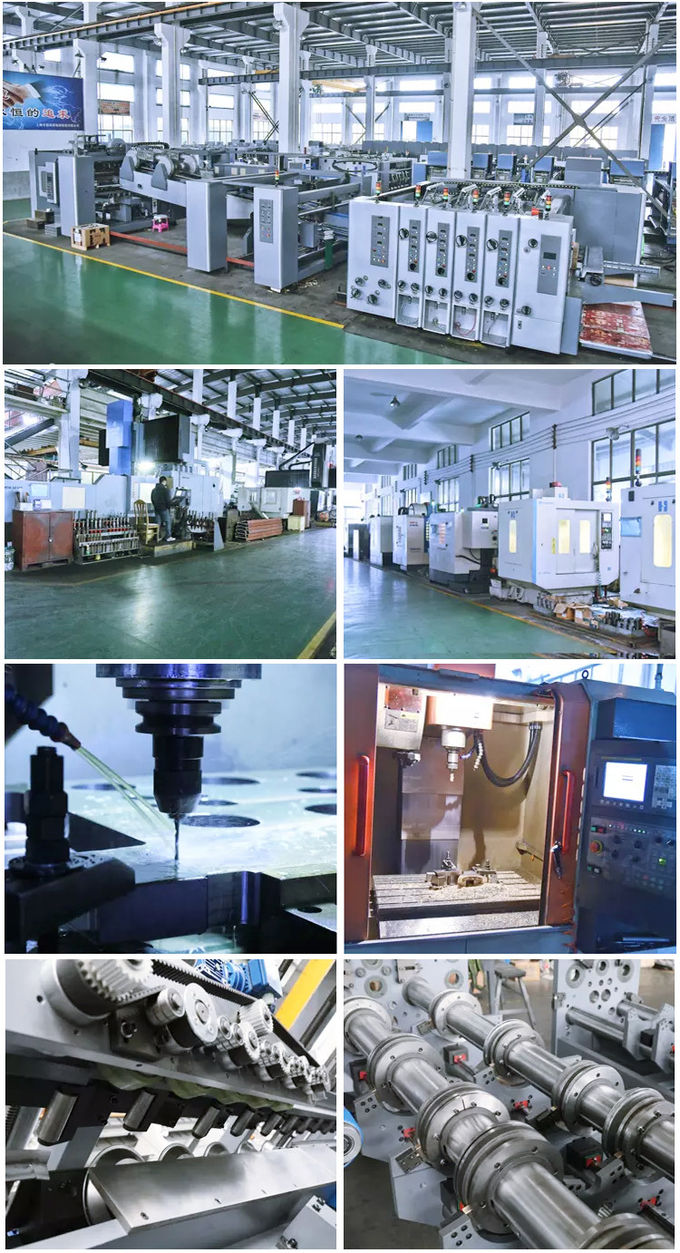

Our Factory
