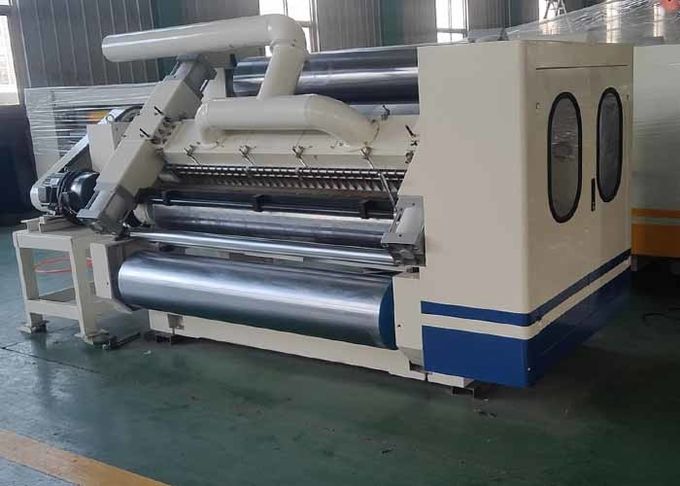

Corrugated Board Gimbal Transmission Fingerless Single Facer Corrugated Machine
Introduction of Single Facer Corrugated Machine
Single facer machine is one of the important equipment of corrugated box production line. It is used to produce 2 / 3 / 5 / 7 layers of corrugated board, and then to make corrugated box. It plays a very important role.
1. Gimbal driver system. Individual immersion oil gear type drive box, separating dynamic vibrations improve running stability, easy and fast for maintenance.
2. Gluing roller: surface is embossed with netting design and chrome plated.
3. Adjustment of upper corrugated roller, pressure roller and glue roller controlled by pneumatic system.
4. With preheating and preconditioning rollers.
Single Facer Corrugated Machine Parameter
| Max. machine speed | 100m/min |
| Economic speed | 80m/min |
| Max. working width | 1600mm |
| Steam temperature | 160—210 centigrade |
| Power requirements: | 220V, 50Hz |
| Diameter of corrugated roller | 280mm |
| Diameter of Press roller . | 320mm |
| Diameter of preheater roller | 300mm |
| Diameter of Glue roller | 215mm |
| Diameter of doctor roller | 105mm |
Machine Details
1. Corrugated diameter is 320mm, 48CrMo high quality alloy steel; Adopt independent gearbox, universal joint drive structure.
2. Surface of glue roller is ground, then with 25 line rut type net dot,then plating chrome
3. Surface of glue balance roller is ground then plating chrome
4. Cylinder control of the Lifting Up-down. Glue circulating system(storage tank+glue pump).
