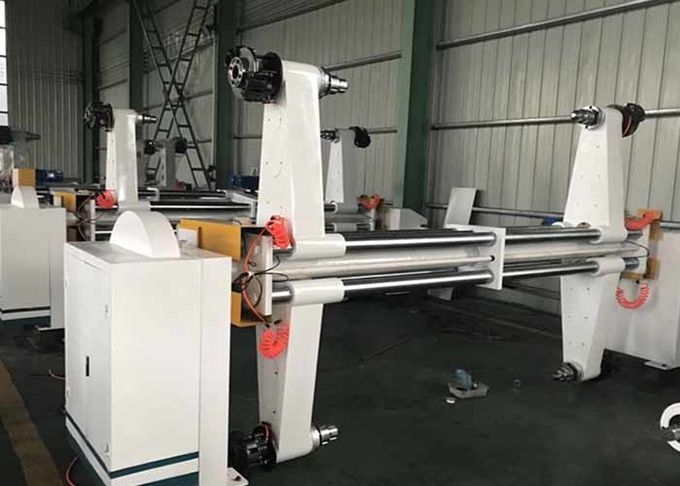

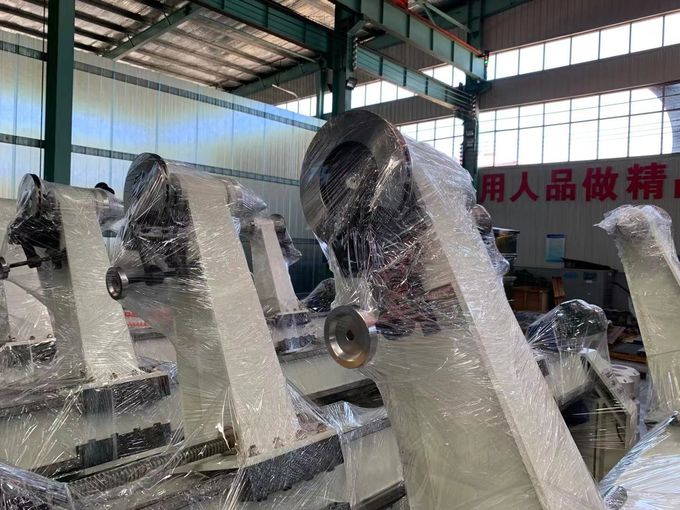

Automatic Electric Mill Roll Stand Corrugated Machine Box Production Line
Electrical Shaft-Less Mill Roll Stand Function
1. The symmetric structure can load two paper roll at the same time and can be used as non-stop working for paper exchanging.
2. Adopt electric way to clamp, loose, move to middle, left and right etc.
3. Brake adjustment adopts butterfly disc system.
4. It adopt two-level automatic self-inflating paper clamp; 3 inch.
| Width | 1400-2500mm |
| Paper roll dia. | φ350-φ1500mm |
| Single side hold weight | 2T |
| Pressure | 0.6-0.9Mpa |
| Total power | 4.0kw |
| Voltage | 3ph380v 50Hz |
Machine Introduction
 |  |
 |  |
Swing type
Max. paper roll dia.: 1400/ 1600 /1800mm
length: 800-1400mm
Clamping paper roll, moving right-left, arms up-down and paper roll rotation is motorized operated.
Support two paper rollers in the meantime, one is working, and another is for spare part.
Adopts “Spring clutch”.
Paper tension controlled by pneumatically operated disc brake, setting the tension easily.
