Corrugated Board Production Line Mill Roll Stand Hydraulic Stand Paper Clip Equipments

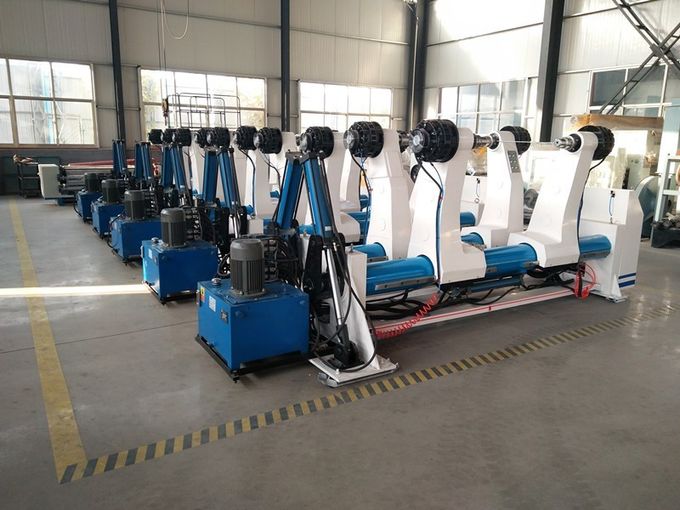

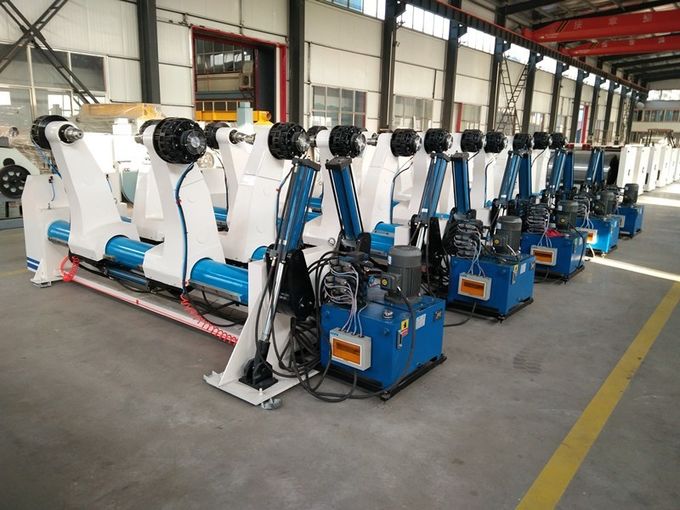

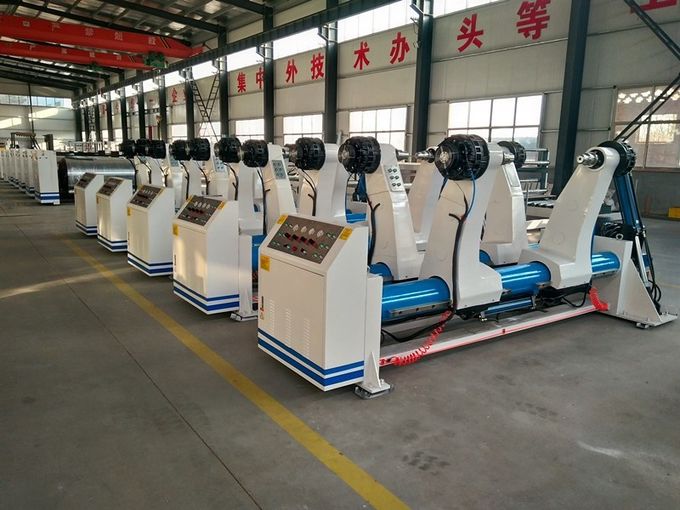

Features of Hydraulic Shaft Less Mill Roll Stand
1. Symmetrical structure, can carry two craft paper at one time, which can work without brake.
2. Reel paper lift-lower, clamp, loosen, movement, contraposition operated by hydraulic pressure. feeding craft / reel paper quickly.

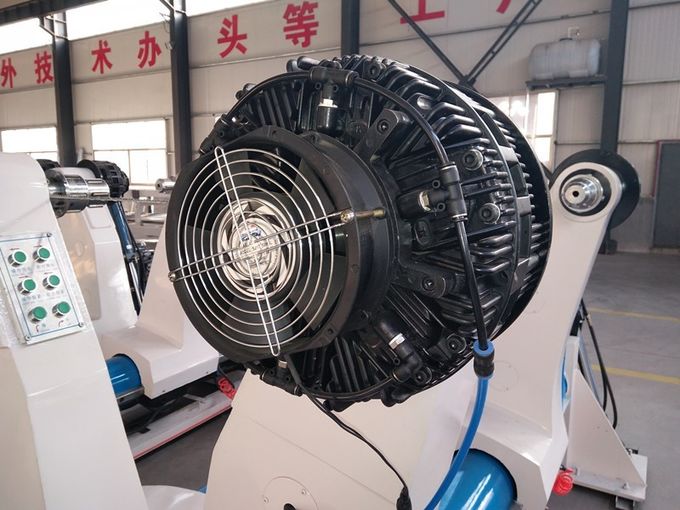

3. Brake: pneumatic brake
4. Double Level Auto Expander, Expander head:3/4 inch Double Level.
5. Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
6. Brake adjustable adopts multipoint braking system.
7. Every stand matched two sets paper car , and they can paper on the both sides at the same time.
8. tooth jammed with dual-stage head and jammed the first three four inches dual-stage.
Parameter of Hydraulic Shaft Less Mill Roll Stand
| Name | Main Parameter | |
| 1 | Expiry width | 1800mm |
| 2 | Action mode | Electric action of up and down |
| 3 | Clamp paper range | Max:1600--1800mm Min:900mm |
| 4 | Clamp paper Dia | Max:1400mm Min:400mm |
| 5 | Singlearm Max load | Max weight: 1500kg |
| 6 | Clamp motor | Work power:0.75kw 4pcs |
| 7 | Lift motor | Work power:2.2kw 1pcs |
| 8 | Voltage | As customer’s required |
Hydraulic Shaft Less Mill Roll Stand Introduction
 |  |
 |  |
Main Parts
| Name of main parts | Brands or place of origin | material |
| Main shaft | Day steel production | diameter242mm |
| Swing arm | Production by own | Resin sand gray ironHT200 |
| wallboard | Jigang prduction | Q235AWelding parts |
| bearing | HRB OR C&U | |
| teeth chuck | 3-4inch shared | |
| Main electrical appliance | Siemens |
