HANLYMA HL520 hdd machine

ID:21111867016

Category: Manufacturing & Processing Machinery Engineering & Construction Machinery

EXW Price:US$ 45000.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

hddhdd machineDrilling MachinesMine Drilling Rigdrilling rigtrenchlesshorizontal directional driller

Payment Method:

T/T

Product Category

Manufacturing & Processing Machinery > Engineering & Construction Machinery

Trademark

HANLYMA

Product Package

Nude pack

Specification

20 Tons

Place of Origin

Liuzhou, Guangxi, China

Port

shenzhen

HL 520 Horizontal Directional Driller

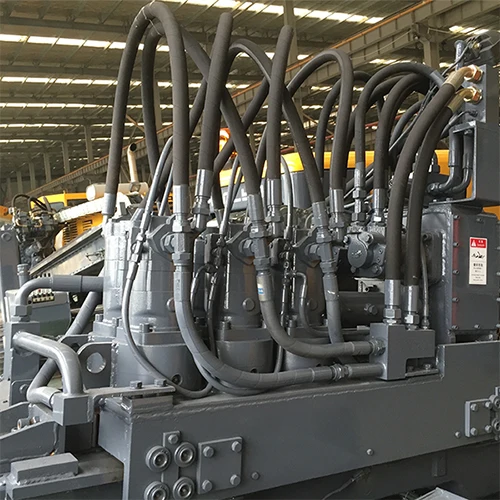

With the used of high quality hydraulic system components, HL520B provides an advanced automatic drill pipe changing function and electron-hydraulic control technology and offers many exceptional features with higher benefit-to-cost rate.

Diesel engine: CUMMINS turbocharging engine provides 112kw power, reliable performance and low oil consumption, applicative for most severe environment.

Drill pipe changing system: Eletron-hydralic control pipe changing system help the operator one slight press to finish all the hard drill pipe changing work.

Clamp: Opening design clamp could be observed directly and make drill pipe changing easier.

Drill pipe box : Equipped drill pipe box contain 50 pieces pipe for the auto changing pipe system.

The power unit: Rack and pinion system with fast /slow speed, can provide stable and powerful force.

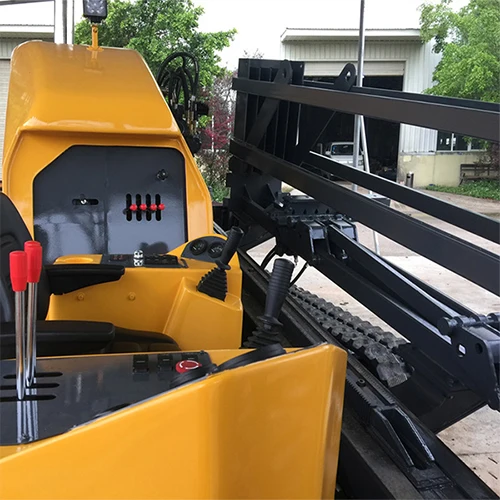

Operating table: Rotatable chair and ergonomics layout design of operating table provide a comfortable operation.

Engine Cover: Fiberglass reinforced palstic engi cover could be lift, making maintenance a easy work.

Specification

Item	value
Engine rated power	105kW
Engine speed	2200r/min
Pullback(max)	200kN
Thrust(max)	200kN
Fluid reamer Diameter	250 mm,350 mm,400 mm,500 mm,600 mm,700 mm,800 mm
Mud station Total Volume	3 M2 (L)
Spindle torque(Max)	6500 Nm
Total Weight after load full rod	9t
