HANLYMA HL530 hdd machine

ID:21111867017

Category: Manufacturing & Processing Machinery Engineering & Construction Machinery

EXW Price:US$ 45000.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

hddhdd machineDrilling Machinesdrilling rigMine Drilling Rigtrenchless

Payment Method:

T/T

Product Category

Manufacturing & Processing Machinery > Engineering & Construction Machinery

Trademark

HANLYMA

Product Package

Nude pack

Specification

30 tons

Place of Origin

Liuzhou, Guangxi, China

Port

shenzhen

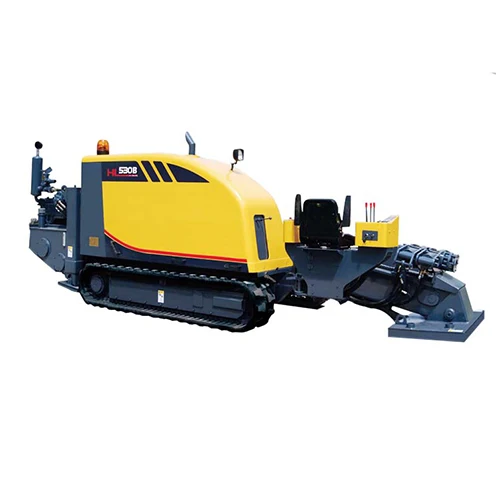

HL530 hdd machine

HL 530B, Horizontal Directional drilling is a new dialing machine which developed independently based on well absorbing the domestic, overseas superior technology of the similar product and it unites the domestic market demand.

The machine is characteric of novel design, perfect performance, handsome shape, elaborate works, and boats high performance price ratio. The hydraulic system uses the variables system, with more convenient and comfortable operation. Adopting several patent technologies, the machine is nice in overall size and good performance. It is more suitable for soft earth conditions and narrow area to operate. And it is convenient to shipment.

FEATURES AT A GLANCE

Diesel engine: D6114 diesel engine having strong power can adapt to the poor working condition with reliability and low
oil-wear.
Main arm：the uplifting main arm and the tilting feet make big approach and left angle when walking.
Legs：The design of fully-isolated running motor and leg base to connect more gourd, particularly suitable to operate on the
condition of soft ground.
Clamp：Opening design clamp could be observed directly and make drill pipe changing easier.
Engine Cover：Engine cover: Fiberglass reinforced plastic engine cover could be lift, making maintance a easy work, and
streamlined shape can look back easily.
Console : Adopts man-machine design, instrumentation layout focus ,design operating table provide a comfortable operation.

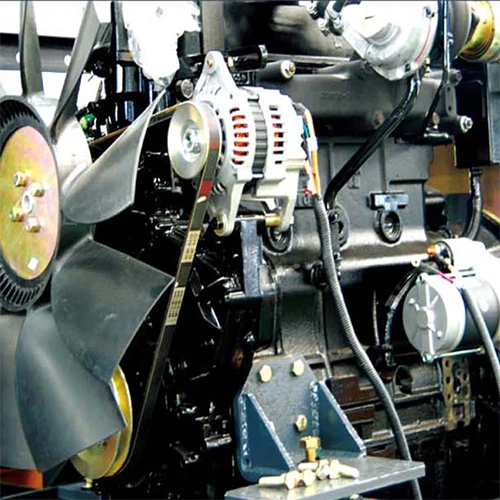

Power and cooling system

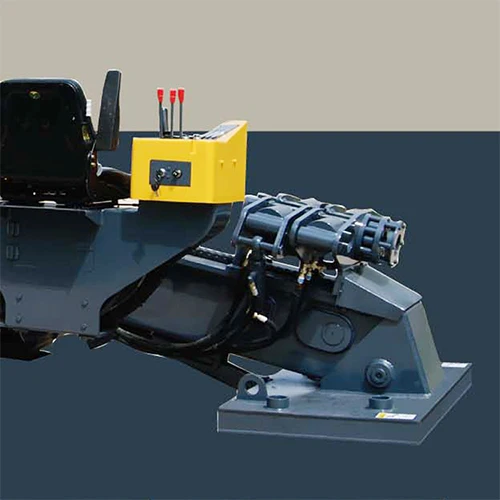

Anchoring device

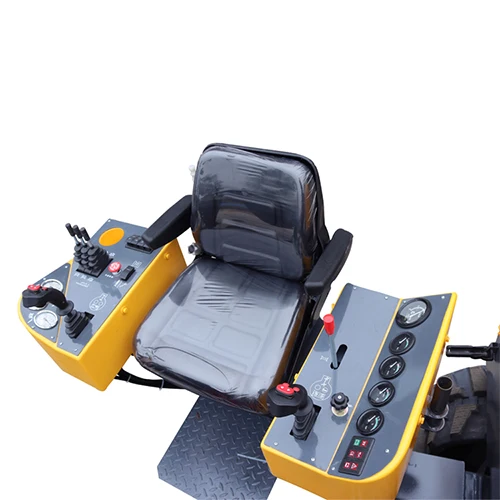

Console

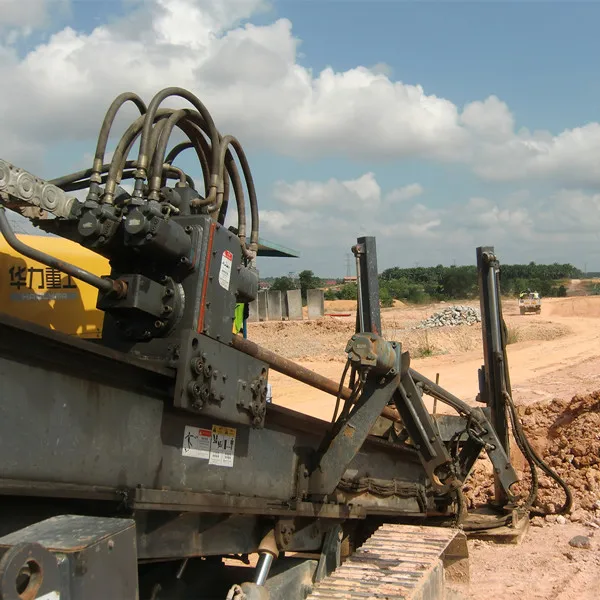

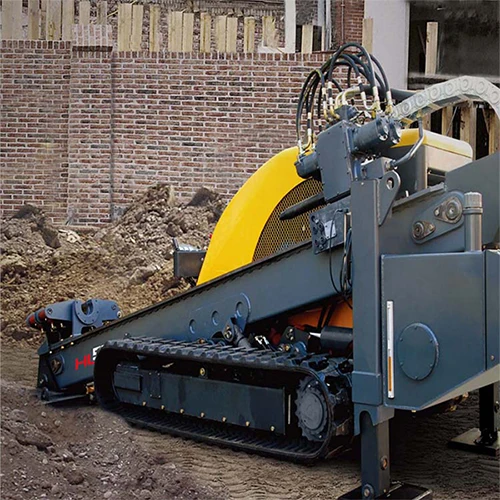

Crawler and push-pull device

PRODUCT SPECIFICATIONS

No.	Item	Data
1	Operating weight	9900KG
2	Working state shape size of the whole machine	6230x2130x2200 mm
3	Size of walking state of the whole machine	6110x2130x2200 mm
4	Pullback(max)	300KN
5	Thrust(max)	190KN
6	Spindle torque(max)	11000N.m
7	Spindle speed	0-95 r/min
8	Incidence angle	10-24°
9	Moving speed	2.6km/h
10	Diameter of drill rod	73mm
11	Length of dill rod	3m
12	Specif cation of back reamer	220mm-940 mm
13	Max pressure	8Mpa
14	Max flow rate	320L/min
15	Mud Mixing station structure	Separation
16	Volume	3m3"

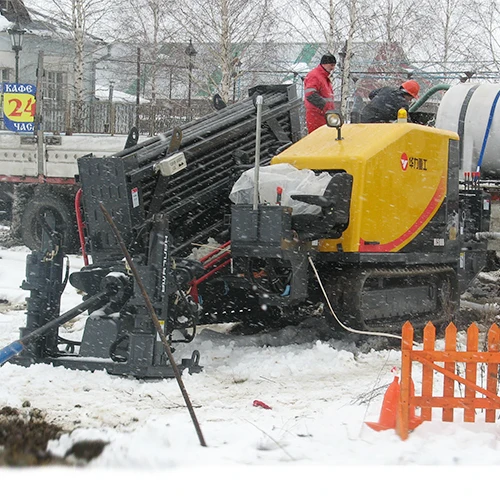

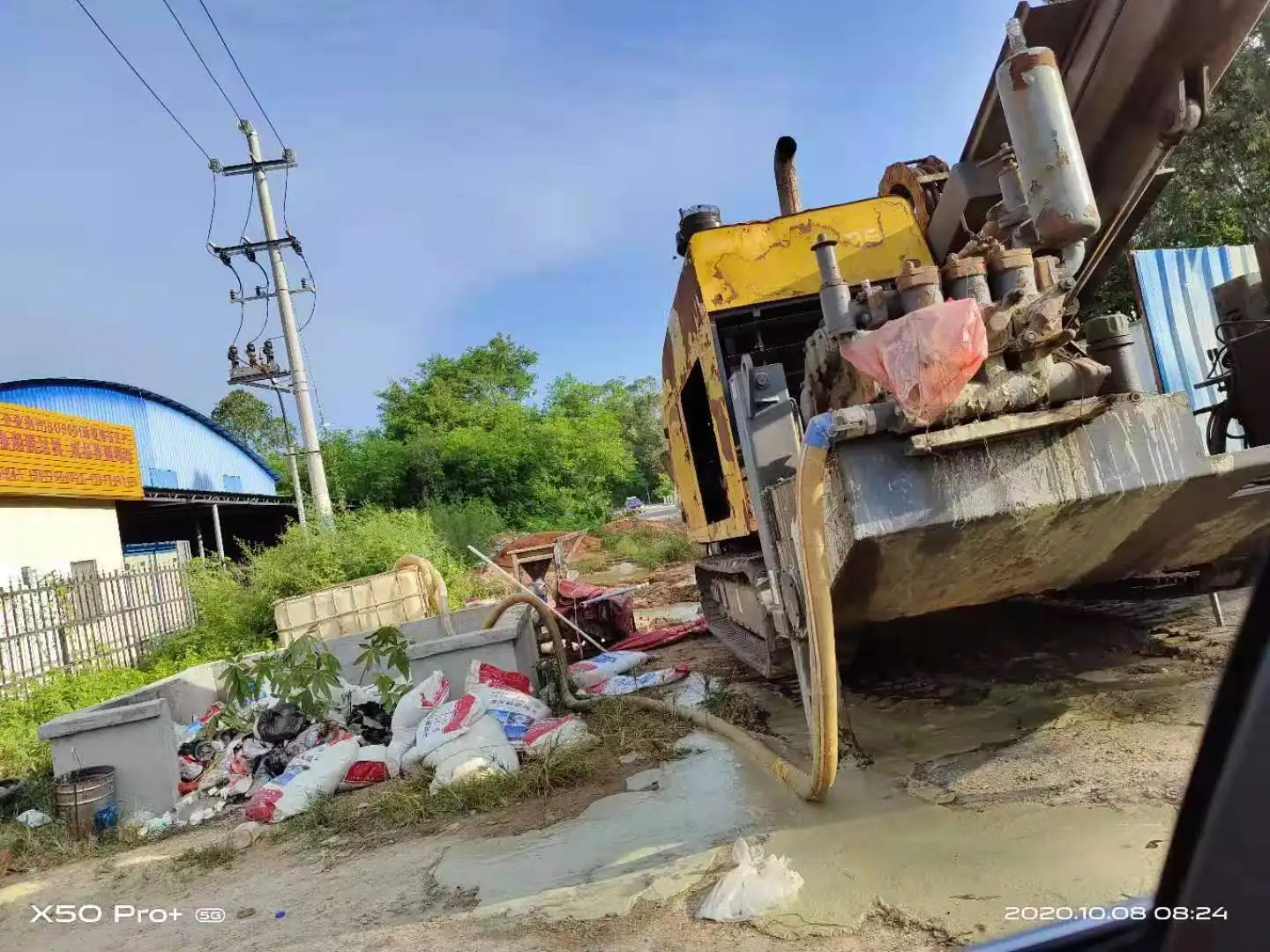

Successful Project
