Pulp & Paper Industry Equipment Spiral Dryer Screen Wire Mesh Fabric for Drying Paper in Paper Mill

ID:21122269054

Category: Manufacturing & Processing Machinery General Industrial Equipment

FOB Price:US$ 100.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

Spiral Dryer Screen

Payment Method:

L/CT/TD/PPaypal

Product Category

Manufacturing & Processing Machinery > General Industrial Equipment

Trademark

Product Package

wooden case

Specification

Place of Origin

Port

SHANGHAI

Paper Machine Clothing Spiral Dryer Screen

Pulp & Paper Industry Equipment Paper Making Polyester Large Loop Middle Loop Small Loop Spiral Dryer Screen Wire Mesh Fabric for Drying Paper in Paper Mill

Technical Parameter

Style	Sing loop size (mm)	Diameter (mm) Spiral loop filament	Diameter (mm) String	Strength (N/CM)	Width (mm)	Weight (kg/m2)	Air perm (m3/m2h)
super large loop	4.8 x 10	0.9	1.1	2300	3.03	1.64	21000±1000
large loop	3.8 x 7.0	0.68	0.9	2000	2.45	1.40	18000±1000
medium loop	3.5 x 6.0	0.68	0.9	2000	2.45	1.31	16000±1000
small loop	3.2 x 5.2	0.5	0.8	1800	1.87	0.97	14000±1000

Other technical parameter

1.Shink percentage : under 135oC ,< 1.5%;under 150oC,< 2%.
2.Dimension varation :length :length < 20m,error +4cm;length > 20m,error +5cm;
width error:±1cm.
3.Shrink percentage:< 1%.
4.Width of edging material:3.0~4.0cm.

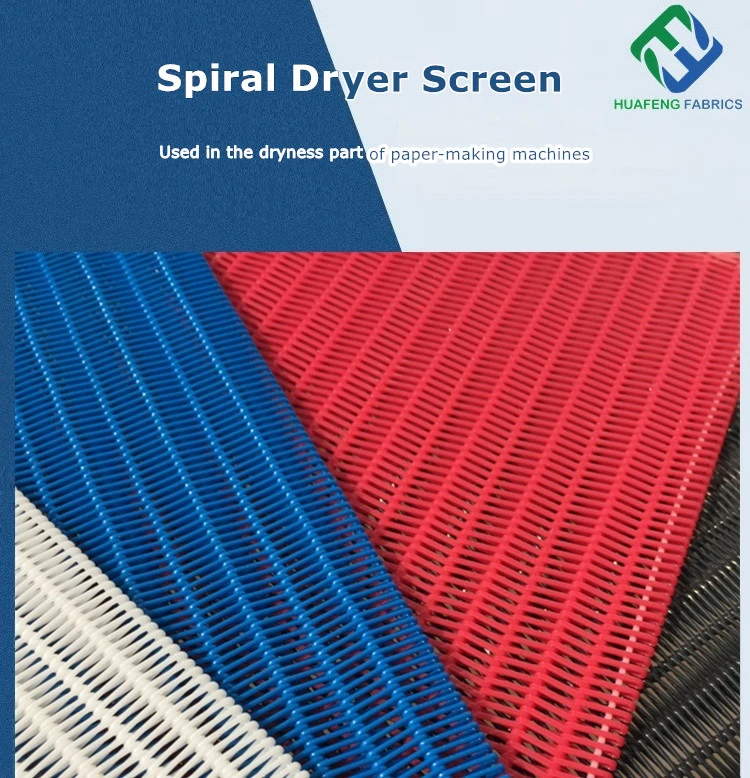

Sprial Dryer Screen specification

The sprial dryer screen is a high-breathing fabric applied to the dryer section of the long-wire paper machine and the board machine. It is made of various plastic synthetic fibers as the main raw material, and is processed by weaving and heat setting. Special resin treatment is carried out as needed, and the joints of the net are also advanced. This fabric has heat resistance, abrasion resistance and high air permeability. It has obvious effects on saving energy and increasing vehicle speed. The dry mesh is highly adaptable and can be used from tissue paper to cardboard.

Spiral dry mesh is made by using the latest international non-woven technology and equipment. mainly used in the dryness part of paper-making machines, drying process of printing and dyeing and other industrials.
Polyester is one of the most advanced drying and filter materials in the world. The polyester spiral dry mesh produced by our company uses high-quality hydrolysis-resistant polyester monofilament, which is been formed, woven, finished and shaped.

Feature
1) - Polyester spiral link dryer fabric belt with high strength,good permeability,so this fabric belt is also used for
high-pressure press-filter water,horizontal belt washer,pulp-liquor separator and mesh belt coal-washer etc.

2) - This fabric belt is widely used in all kinds of industries,such as printing and dying,food,salt industry,pharmacy,environment
protection etc.

3) - Polyester spiral link dryer fabric belt is also used in papermaking industry,such as paper pulp drying,forming,and paper
making sewage treatment etc.

Pulp & Paper Industry Equipment Paper Making Polyester Large Loop Middle Loop Small Loop Spiral Dryer Screen Wire Mesh Fabric for Drying Paper in Paper Mill

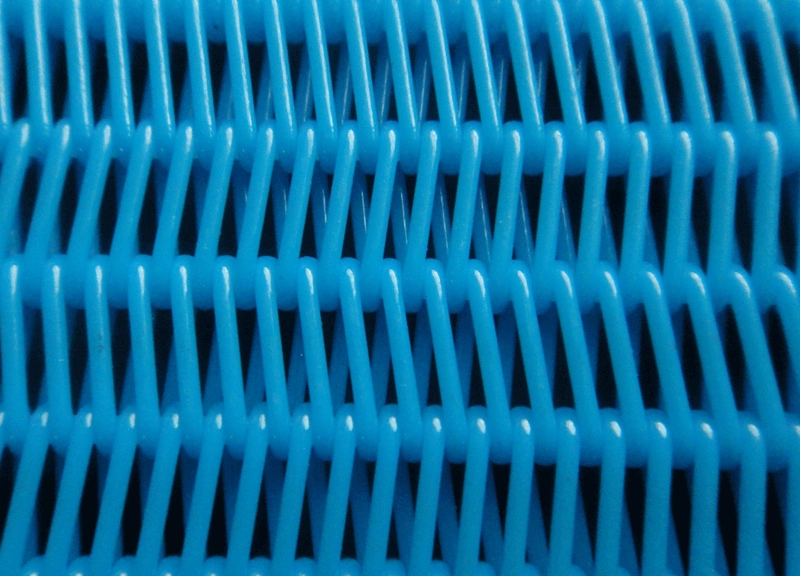

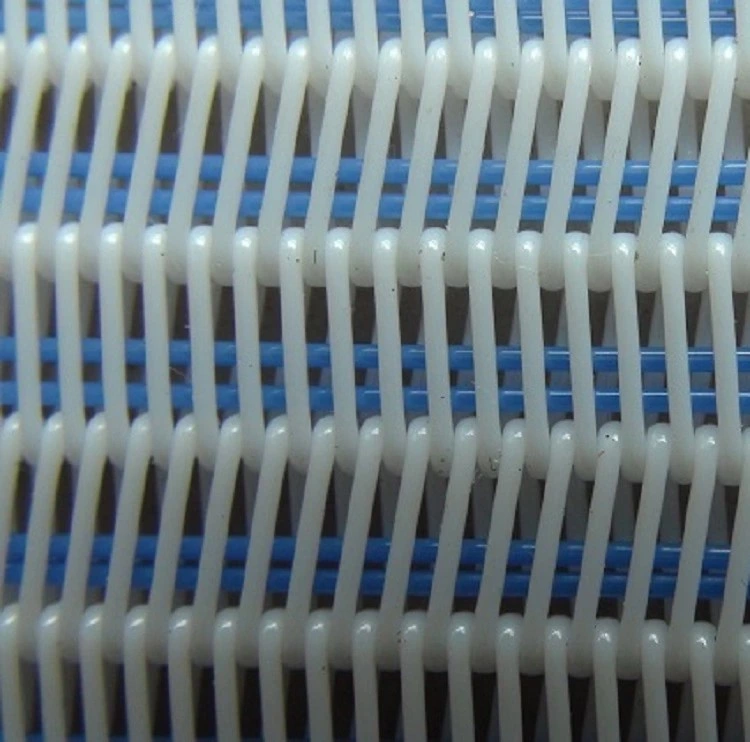

Polyester spiral dryer screen

Polyester spiral dryer screen can be divided into three type:

1.Small loop, suitable for fine paper .

2.Midium loop, suitable for board & packing paper .

3.Large loop, suitable for board & packing paper .

Features

1. Long service life, wear resistance and low net consumption.
2. High fatigue resistance, acid and alkali resistance.
3. The surface is flat, the tensile strength is high, the gas permeability is good, and the heat transfer efficiency is high.
4. Easy to install and use, no trace on the interface, not easy to deform during use.

Use

Generally, the drying part of the paper machine adopts a double-row drying cylinder arrangement.The upper and lower drying
cylinders are equipped with a dry screen, it will presses the paper against the surface of the drying cylinder and leads the paper
runs around the dryer.By using the temperature of the dryer to evaporate the moisture on the surface of the paper, and then takes
the wet air away with natural ventilation or necessary mechanical ventilation, so the paper is dried.

Maintenance

If the paper pulp contains a large amount of waste paper, then the cleanliness of the dry web is very important. Some impurities
can adhere to the dry web so that the ability to evaporate water is limited. Make the paper web thinner and even appears paper
holes. It is recommended to clean it in time with high pressure or with professional cleaning equipment.
