Double Girder Overhead Crane
L/CT/TWestern Union
100/30Ton Customize Ladle Lifting Metallurgical Double Girder Overhead Traveling Crane for steel melting workshop
Product Description of 100/30Ton Customize Ladle Lifting Metallurgical Double Girder Overhead Traveling Crane
100/30 Ton Ladle Lifting Double Girder Electric Overhead Crane is composed of boxed bridge frame,crane travelling mechanism,lifting trolley and hook, cable and cable and electric control system.
The main hook employs a load tool as the lifting device to hoist steel ladle, the auxiliary hook cooperate with the main hook to accomplish pouring of molten steel and steel slag.
Use various speed system with speed ratio as 1:10 for main mechanisms such as hoisting, trolley traversing and crane travelling. Also we can choose the suitable speed under the customer requirement.
Product Technical Parameter Sheet of 100/30 Ton Ladle Lifting Double Girder Electric Overhead Crane
| Lifting weight | Primary handcart | T | 100 | |
| Secondary handccart | 30 | |||
| Span | 10.5-31.5m | |||
| Lifting height | Primary handcart | M | 18 | |
| Secondary handccart | 19 | |||
| Working class | A7 | |||
| Speed | Lift | Primary handcart | m/min | 6.8 |
| Secondary handccart | 9.5 | |||
| Travel | Primary handcart | 37 | ||
| Secondary handccart | 68 | |||
| Motor | Lift | Primary handcart | Type/kw | YZR355M-10/90×2 |
| Secondary handccart | YZR280M-10/55 | |||
| Travel | Primary handcart | YZR160L-8/9×2 | ||
| Secondary handccart | YZR160M1-6/6.3 | |||
| Cart | YZR225M-8/22×4 | |||
| Weight | Primary handcart | T | 66 | |
| Secondary handcart | 10.25 | |||
| Cart | 173 | |||
| Max wheel pressure | KN | 520 | ||
| Steel track | QU120 | |||
| Power supply | 3-phase A.C. 50Hz 380V | |||
Working condition:
1.Working tempreture:-10~+60°C,
2.Work class:A7-A8,
3.Power Source:3ph,380V,50HZ or other under customer requirement.
Safety feature:
1.Weight overload protection device,
2.Top quality long time bearing polyurethane materials buffer,
3.Crane traveling limit switch, Voltage lower protection function,
4.Emergency stop system,
5.Current overload protection system and so on!
Design and Development:
We strongly believe in Design and Development for the improvement of the products to save power and money. We have a wonderful team for Quality Assurance and set to achieve higher goals and conquer new horizons.

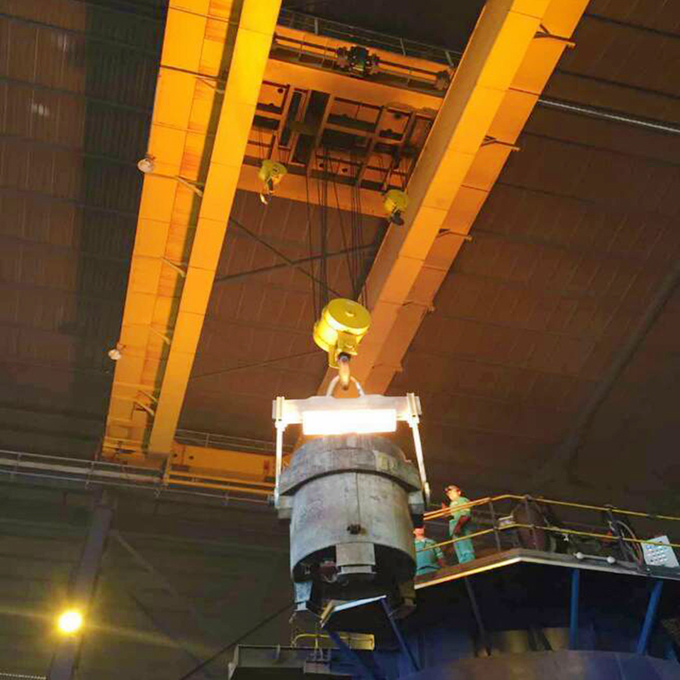

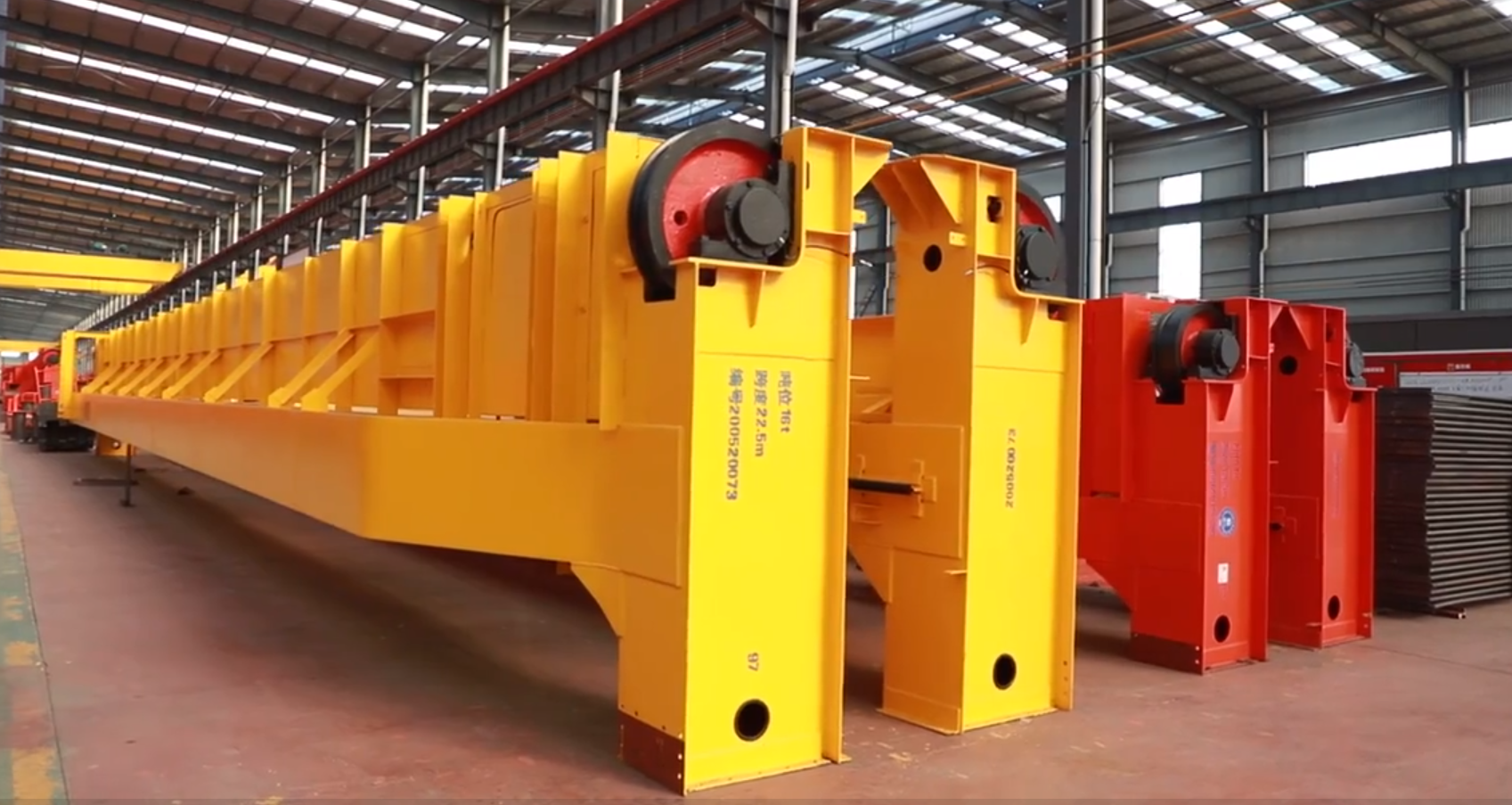

Photo of 100/30Ton Ladle Lifting Double Girder Overhead Crane:

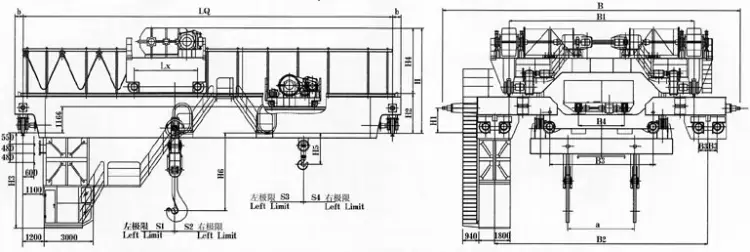

Sketch of 100/30Ton Ladle Lifting Double Girder Overhead Crane:

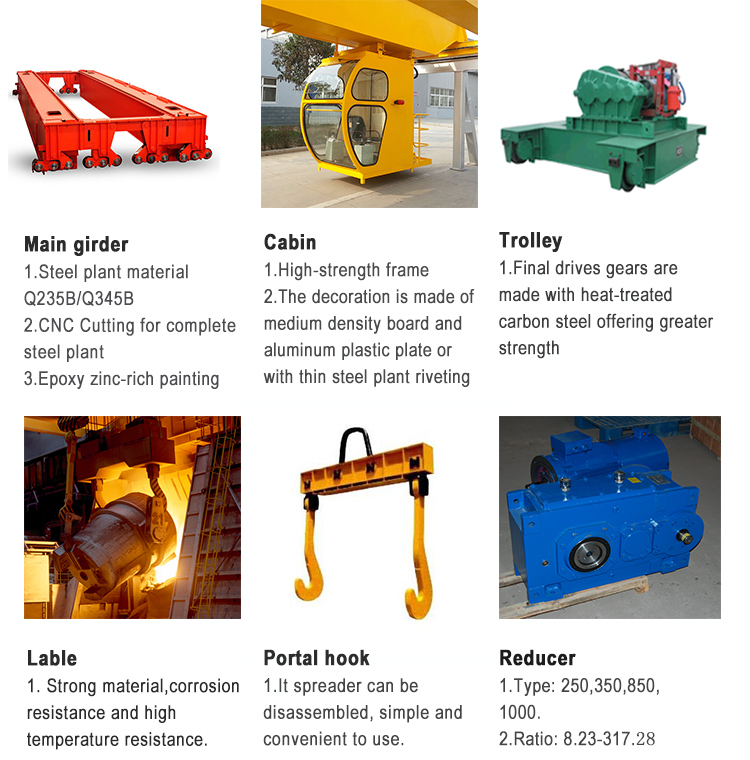

Main Parts of 100/30Ton Ladle Lifting Double Girder Overhead Crane:
