Heavy duty remote control box type double girder electric Rail mobile gantry crane

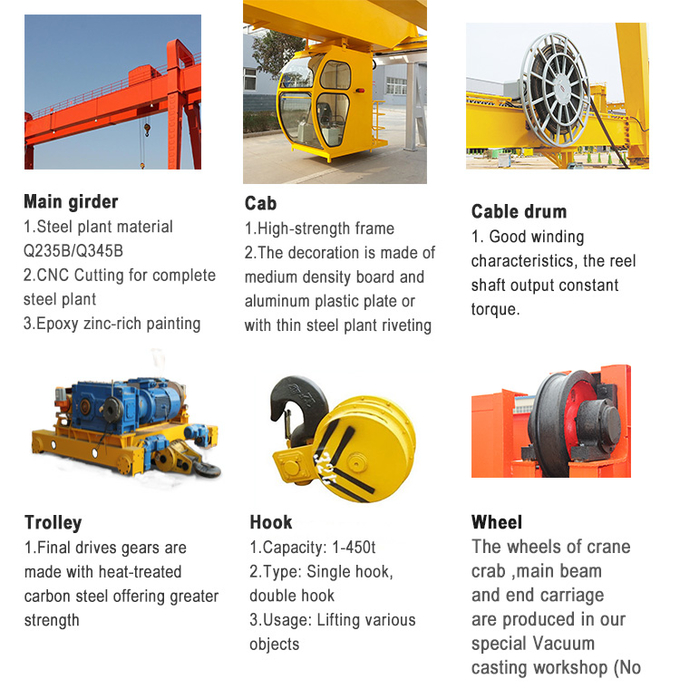

MG model Double beams gantry crane is a track traveling Medium-Heavy sized crane,it mainly consists of the skeleton structure, lifting trolley and cross traveling mechanism, long traveling mechanism, cabin,festoon cable and electrical control system. The trolley can move horizontally on a pair of rails on the main beam. The working class is A4 A5 A6 A7.

This product is a regular crane widely used in open-air warehouse and workshop, material yard, port,railway station,hydroelectric power station,logistics park and some other outdoor place, where it has a high frequency or more lifting times. It is prohibited for lifting melt metal, flammable, explosive, corrosion, overloading, dust and other dangerous operations.

Double girder gantry crane have A type, U type. Type A door crane is A general gantry crane, suitable for various workplaces.

Product features of A type Double girder hook gantry crane :

1.Double box beam with steel legs moving through the ground beam as crane travelling system

2.The camber of main beam will be designed as Span*1-1.4/1000.

3.Steel Material: Q235 or Q345

4.Shot-blasting Sa2.5 for main girder and supporting beam

5.Epoxy zinc rich high quality painting.

6.Electrification and outfitting

7.Brand: CHINT SIEMENS Schneider

8.Conductor power supply: Cable Reel or busbar.

9.Frequency conversion, double speed, single speed, and All hoist and crane movements are independent and can be run simultaneously different design duo to meet crane applications

Attention:

Safety is the most important issue for U type Double girder hook gantry cranes. To ensure the safety,It is prohibited to use the U type Double girder hook gantry crane in the combustible, explosive or corrosives environment.(Need explosion proof type Double girder hook gantry crane for this,You can contact us to get the information of explosion-proof gantry crane.).

Control method:

Pendant Control, remote control, cabin control

Design and construction rules:

All the standards which is required for the U type Double girder hook gantry crane is the Chinese standard

Painting:

Primer and finishing paint

Color: according to your demand.

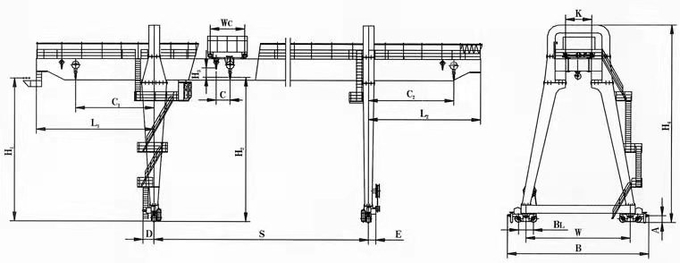

Product Structure

There are only some common models of U type Double girder hook gantry crane in the table, and various other models and parameters of rail container gantry cranes can be produced through customized design.
