10 Ton European Style Low Headroom Single Girder Bridge Crane With Wire Rope Hoist

10 Ton European Style Low Headroom Single Girder Bridge Crane With European Type Wire Rope Hoist

Product Description of European Type Single Beam Overhead Crane

European single girder overhead crane is a kind of new generation crane with intelligent feature. The lifting mechanism is European style ND steel wire rope electric hoist . The lifting speed is double. And Cross & long traveling use infinitely variable frequency motor which make the crane travel smoothly. The crane design is based on FEM,DIN, ISO standard, which is extremely safe, ergonomic, convenient, and efficient for material transport. Its compact size structure could save lots of space.As the core component of driving mechanism,reducer gear pair with hard tooth surface and high accuracy,together with steel reel,forged wheel and variable-frequency speed regulating system,which makes this type of crane become renewal product of traditional general bridge crane and applied in industry of  machinery production,assembling,petrochemicals, warehouse logistics,electric power construction,papermaking and railways.

Main Features of European single girder overhead crane:

1. The small wheel pressure and small volume can reduce the investment in the preliminary works such as the factory building.

2. Travelling mechanisms of crane and trolley adopt Europe three-in-one drive form,the harden gear face reducer has good performances in compact structure,low noise,no oil leakage and long service life.

3. With compact structure,low clearance,small dimension and large application scope,it can improve production efficiency.

4. Modular design has short design period and high generalization,which can improve the utilization of components.

5. Full variable-frequency control runs steadily without any impaction.Run with heavy load at low speed and light load at high speed,it can save energy and reduce consumption.

6. Real-time security monitoring while crane running.

7.Trolley of crane uses open compact winching structure,of which with medium and small tonnage also can use new hoist trolley.

Attention:

Safety is the most important issue for cranes. To ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).the following safety devices are equiped in Crane.

1. crane traveling limit switch.

2. Weight overload protection device.

3. Lifting height limit device.

4. Voltage lower protection function.

5. Emergency stop function.

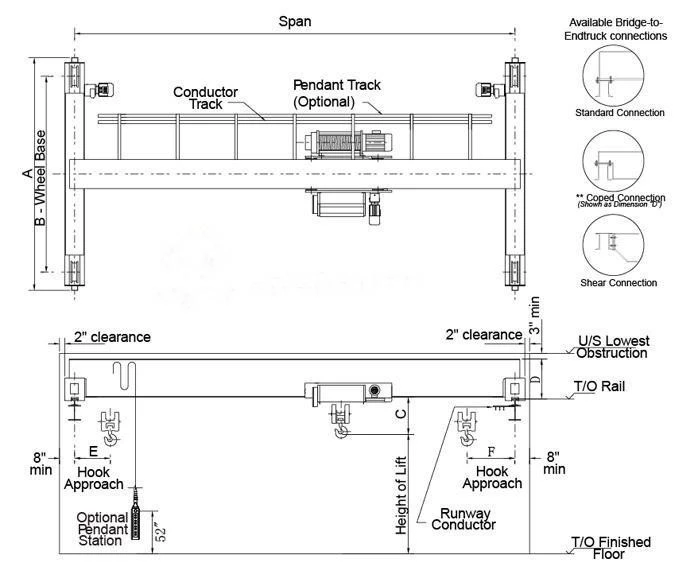

Product Structure
