Cone Crusher

Introduction of Cone Crusher:

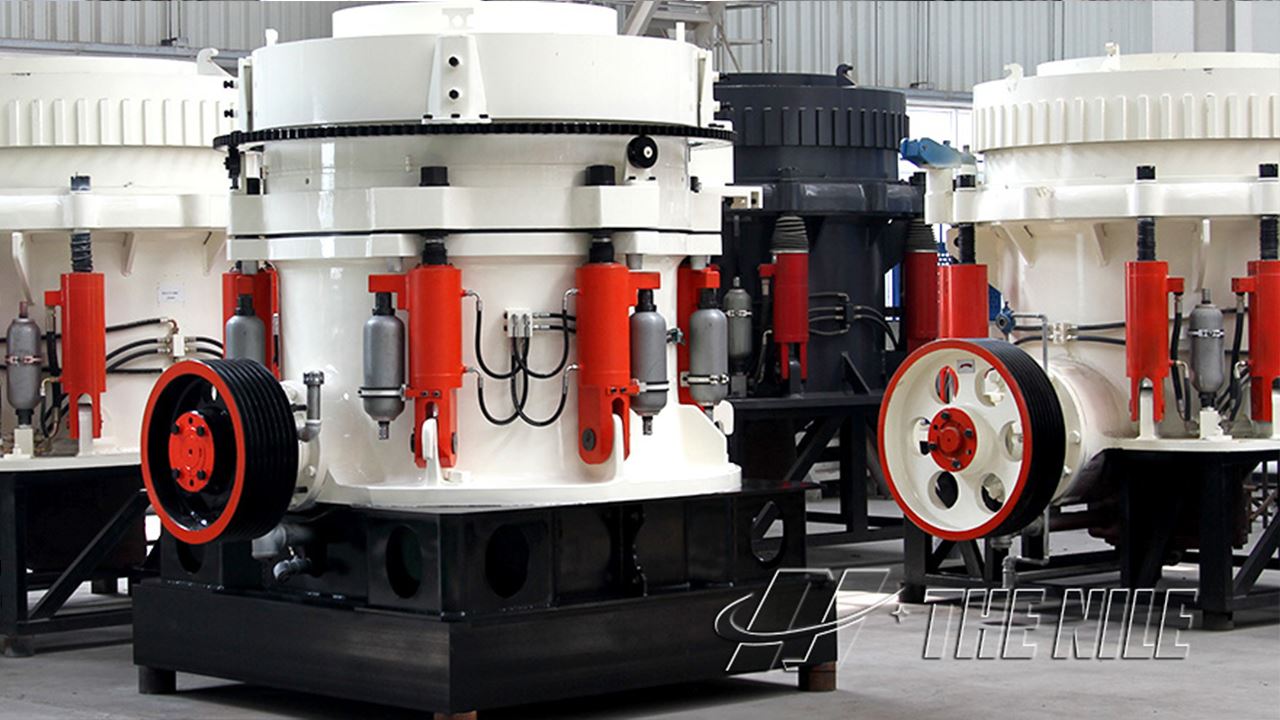

The multi-cylinder hydraulic cone crusher (high-efficiency hydraulic cone crusher) is a typical crushing device for medium and fine crushed hard materials.

Applicable fields: applied to mining, metallurgy, construction, chemical, electric power, transportation and other industries, able to break all kinds of hard stone and rock.

Applicable materials: various coarse, medium and fine materials with compressive strength not exceeding 350MPa, such as: river pebble, granite, basalt, iron ore, shale, limestone, coal gangue, quartz stone, diabase, marble, copper Ore, pebbles, etc.

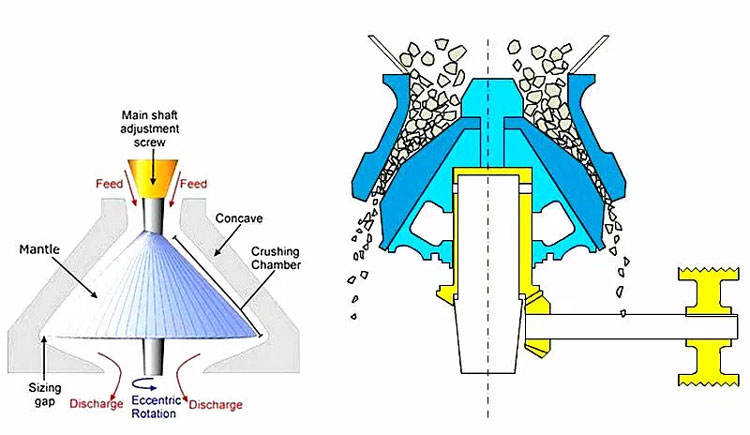

Working Principle of Cone Crusher:

When the cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and some times far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.
