Product Category
Oil & Gas > Piping and valves
Trademark
VT
I am a Buyer
OR
By clicking Sign in or logging in with Google or LinkedIn, I agree to the User Agreement and the Privacy Policy .
Business Type: Manufacturer
Main Products:floating ball valvetrunnion mounted ball valvetop mounted ball valve fully welded ball valvemulti-pass valve(three way/four way)Metal to metal seal HTHP ball valvecheck valvegate valve
ID:22040271856
Oil & Gas Piping and valves
MOQ:1.00 Piece(s)
Ball Valves
L/CT/TOthers

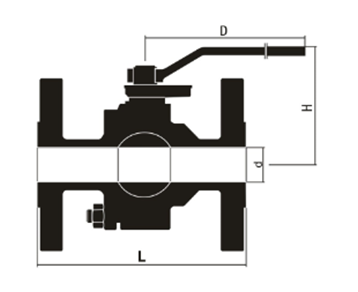

Floating Ball Valve Type
Full Bore Type Reduced Bore Type
Product Description
| Design standard | API6D、ASME B16.34、BS5351、ISO17292、DIN | ||
| Connection ends | RF、RTJ flange、butt-welded、thread、socket welded | ||
| Operation | manual、pneumatic、electric、gas-liquid interaction etc. | ||
| Nominal diameter | 1/2” – 8” (DN 15-DN 200) | ||
| Pressure range | CLASS 150 – CLASS 600 (Mpa 1.6- Mpa 10.0) | ||
| Materials | carbon steel、stainless steel、20#steel 、nickel alloy、cobalt alloy | ||
| Temperature | -196℃-540℃ | ||
| Application | petroleum、natural gas、chemical、petrochemical、power station、metallurgy、papermaking etc. | ||
Feature:
Locking Device
Blow Out Proof Stem
Anti-static Design
Fire-Safe Design
Middle Flange with No Leakage Design
Wrench with Valve Open/Close Indication
Unique Seat Sealing Design
