DJ Propeller

DJ Propeller

Vertical Long Propeller

Brief introduction:

DJ series is an updated bottom propeller especially developed for agitating the reaction still,it is suitable for big flow rate with low total head.It is a propeller to fulfill fluid agitation in the chemical process of polymerization,condensation,sulfuration,hydrocarbonylation,and is widely used in industries of chemical,petrochemical,food,medicine,agrochemical...

Long Shaft Agitator Parameters:

1. Flow rate:Q=300~50000 m3/h

2. Total head:H=2~0.5 m

3. Speed:n=80~780rpm

4. S.g.:γ ≤1.9

5. Temperature:T=0~180oC

6. Viscosity:v ≤600mm2/s

Long Shaft Propeller Features:

1. Hydraulic performance is optimized by CFD;Especially built a large experimental facility to guarantee the products performance.

2. High efficiency propeller;Safe and endurable driving structure;Stable and reliable sealing system.

3. Low speed and low linear speed design brings little damage to the crystals.

4. Heavy-duty shaft design ensures the stable operation of pump.

5. Independent double mounting cantilever structure allows the independent function of mechanical seal and front bearings,which brings the reliability of mechanical seal and driving system.

6. Various mountings to fit facilities of different sizes; Solved the problems caused by traditional mounting,unreliable driving and frequent maintenance.

7. Slight vibration,low noise,smooth operation and high efficiency.

Pump Agitator Structure:

1. Independent double mounting cantilever structure

2. Independent mechanical seal which is totally unattached to the radial bearings.

3. Special designed cartridge mechanical seal(Plan54+Plan32).

4. Updated complete structure with high efficiency propeller.

5. Various mountings to fit different requirements.

6. Motor,gear box and propeller are all settled under the reaction still(fully hung type)

7. Propeller is installed under the reaction still,while the motor and gear box is installed on the ground,connected by an universal joint.(half hung type)

Pumps for Alkali Industry Configuration:

For Petrochemical Industry Chemical Pumps Application:

1. Suitable for the agitation in the reaction still.

2. It is a propeller to fulfill fluid agitation in the chemical process of polymerization,condensation,sulfuration,hydrocarbonylation.

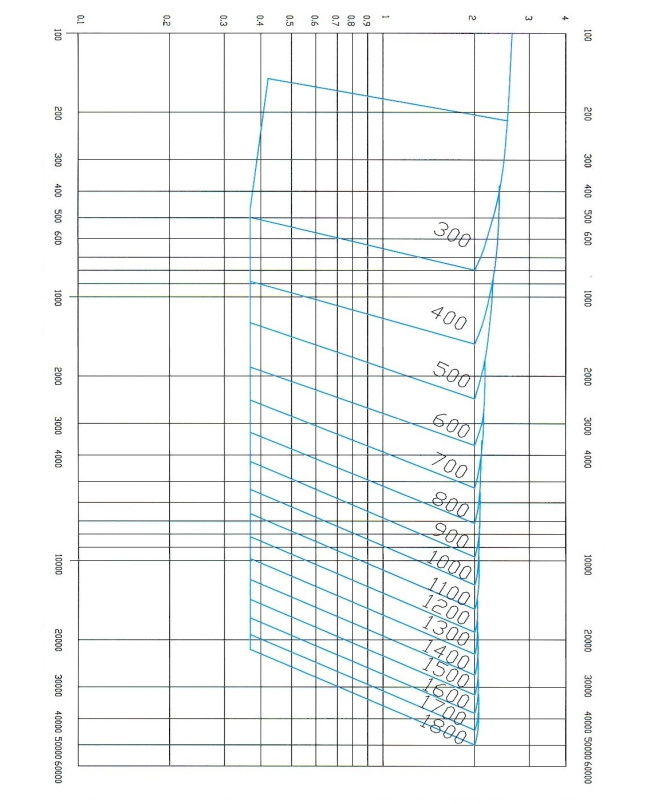

Pumps For Alkali Industry Performance:

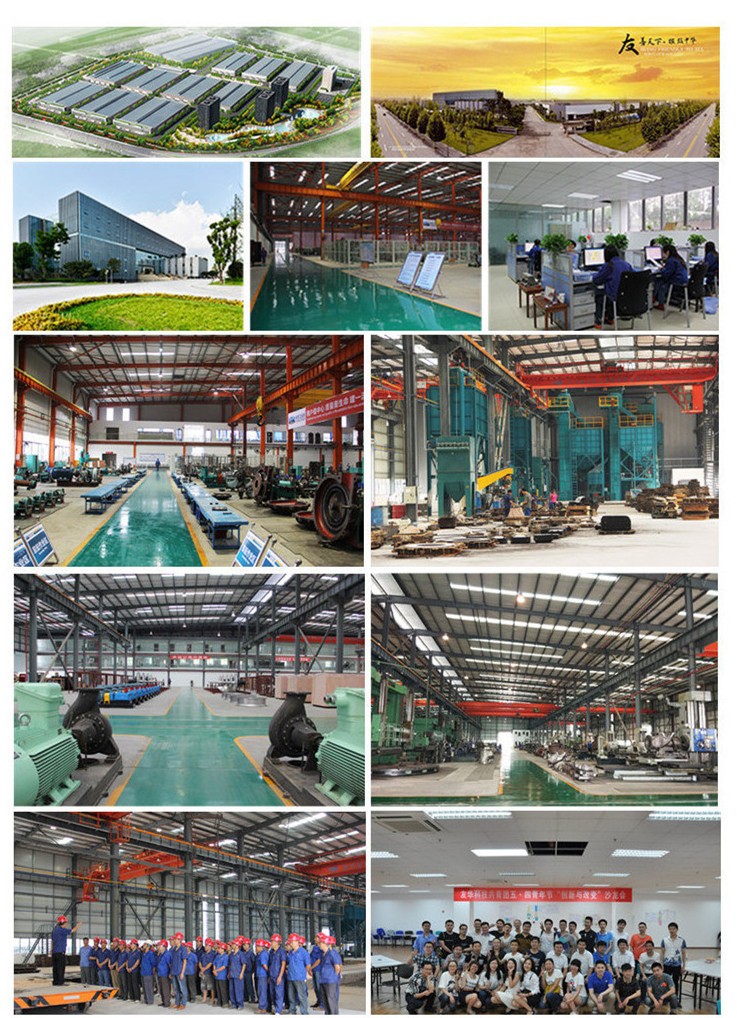

Zigong Pump/Best Seller Of Propeller Company View:
