Solar System DC12V 200ah Deep Cycle Battery factory manufacture

ID:22042674356

Electronics and Communications

FOB Price:US$ 184.050 / Piece(s)

MOQ:50.00 Piece(s)

Product Keywords:

Deep cycle batterysolar system batterysolar battery12v battery200ah battery

Payment Method:

Product Category

Electronics and Communications

Trademark

VCELL

Product Package

12V200Ah Solar Gel Battery: Standard PVC bag, Carton, Pallet

Specification

523*239*218*222mm

Place of Origin

China

Port

China port

Solar System DC12V 200ah Deep Cycle Battery factory manufacture

1. PRODUCT INFORMATION

SPECIFICATION

Model	12GEL200
Voltage(V)	12
Capacity(20°C)	200Ah @ 10HR-rate
Dimensions (L x W x H/T.H)(mm)	523239218*222mm
Weight(KG)	59.8
Teiminal	M8

DC12V 200ah Deep Cycle Battery

2. FEATURES AND BENEFITS

1. Designed floating charging service life: 15years (25oC)

2. Safety valve installation for explosion proof ,Sealed and maintenance free operation

3. By using strong grids, high purity lead and patented Gel electrolyte

4. Extremely low self-discharge characteristic

5. Wide operating temperature range from -20oC~55oC

6. Lead Aluminum calcium Tin alloy high energy, prevent corrosion

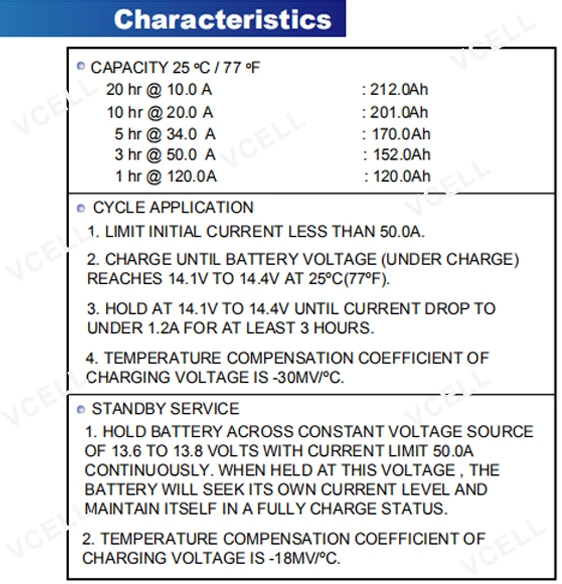

3. Characteristics

More technical datas about 12V200AH Deep Cycle Battery, welcome to contact us.

Solar System DC12V 200ah Deep Cycle Battery factory manufacture

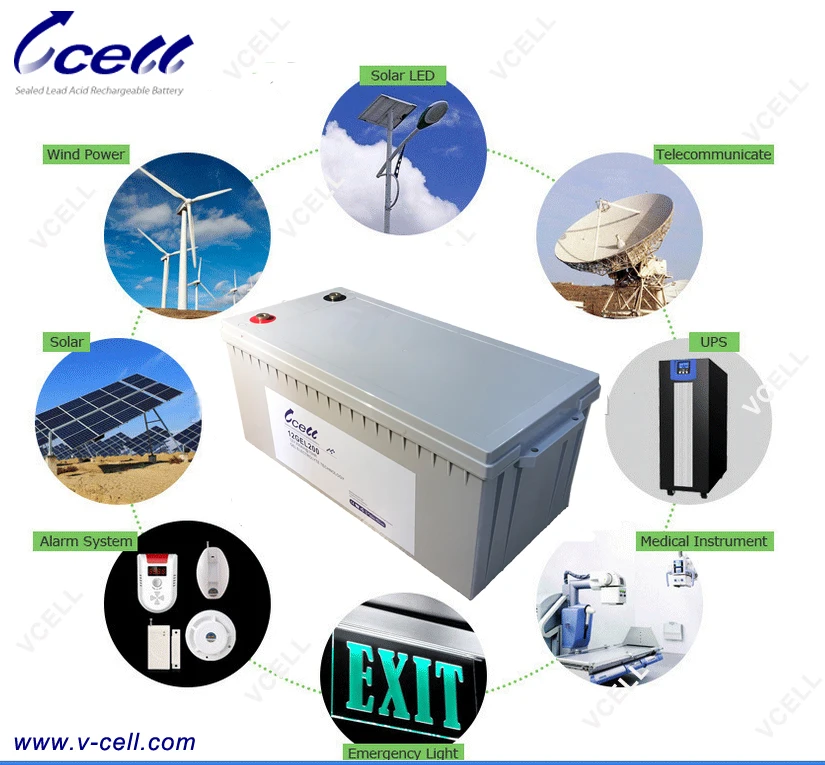

4. APPLICATION

1. Photovoltaic systems
2. Renewable Energy Systems
3. Railroad Utilities
4. Outdoor control Equipments
5. Electric Utilities
6. Solar/Wind/Hybrid power systems

7. DC power supply

8. Security and fire alarm systems

9. Emergency lighting systems

5. PRODUCT PHOTO

Solar System DC12V 200ah Deep Cycle Battery factory manufacture

Model: 12V 200Ah Deep Cycle Battery

Solar System DC12V 200ah Deep Cycle Battery factory manufacture

6. More related models for GEL series

Model	Nominal Voltage (V)	Rated Capacity @ 10HR (Ah)	Dimensions (in) mm				Weight (Lb) kg	Terminal Type
			Dimensions (in) mm
			Length	Width	Height	Overall Height
			Length	Width	Height	Overall Height
"GEL" SERIES, GEL & DEEP CYCLE FOR SOLAR (15-18 Year Design Life for Floating Charge or 650 Cycles @ 80% DOD)
12GEL38	12	38	(7.76)197	(6.54)166	(6.69)170	(6.69)170	(25.57)11.60	RT(M6)
12GEL45	12	45	(7.76)197	(6.54)166	(6.69)170	(6.69)170	(29.98)13.60	RT(M6)
12GEL50	12	50	(9.06)230	(5.43)138	(8.31)211	(8.50)216	(33.73)15.30	RT(M6)
12GEL55	12	55	(9.06)230	(5.43)138	(8.31)211	(8.50)216	(35.49)16.10	RT(M6)
12GEL65	12	65	(13.78)350	(6.57)167	(6.81)173	(6.81)173	(43.43)19.70	RT(M8)
12GEL70	12	70	(10.24)260	(6.61)168	(8.35)212	(8.58)218	(49.16)22.30	RT(M6)
12GEL80	12	80	(12.09)307	(6.61)168	(8.31)211	(8.46)215	(56.88)25.80	RT(M6)
12GEL90	12	90	(12.09)307	(6.61)168	(8.31)211	(8.46)215	(58.42)26.50	RT(M6)
12GEL100	12	100	(13.03)331	(6.81)173	(8.50)216	(8.74)222	(66.8)30.30	RT(M8)
12GEL120	12	120	(12.98)406	(6.81)173	(8.23)209	(9.33)237	(78.71)35.70	RT(M8)
12GEL135	12	135	(13.43)341	(6.77)172	(11.06)281	(11.30)287	(94.80)43.00	RT(M8)
12GEL150	12	150	(19.09)485	(6.69)170	(9.45)240	(9.45)240	(97.66)44.30	RT(M8)
12GEL180	12	180	(20.98)533	(8.15)207	(8.46)215	(8.62)219	(117.51)53.30	RT(M8)
12GEL200	12	200	(20.59)523	(9.41)239	(8.58)218	(8.74)222	(131.84)59.80	RT(M8)
12GEL230	12	230	(20.47)520	(10.55)268	(8.66)220	(8.82)224	(151.02)68.50	RT(M8)
12GEL250	12	250	(20.47)520	(10.55)268	(8.66)220	(8.82)224	(157.19)71.30	RT(M8)
2GEL100	2	100	(6.73)171	(2.83)72	(8.07)205	(8.43)214	(13.23)6	RT(M8)
2GEL200	2	200	(6.77)172	(4.37)111	(12.95)329	(14.37)365	(29.54)13.4	RT(M10)
2GEL300	2	300	(6.73)171	(5.94)151	(13.15)334	(14.37)365	(42.11)19.1	RT(M10)
2GEL400	2	400	(8.31)211	(6.89)175	(12.91)328	(14.37)365	(55.34)25.1	RT(M10)
2GEL500	2	500	(9.53)242	(6.85)174	(12.95)329	(14.37)365	(68.78)31.2	RT(M10)
2GEL600	2	600	(11.89)302	(6.93)176	(12.99)330	(14.37)365	(81.35)36.9	RT(M10)
2GEL800	2	800	(16.14)410	(6.93)176	(12.99)330	(14.37)365	(108.69)49.3	RT(M10)
2GEL1000	2	1,000	(18.70)475	(6.89)175	(12.95)329	(14.37)365	(133.82)60.7	RT(M10)
2GEL1500	2	1,500	(15.79)401	(13.82)351	(13.46)342	(15.08)383	(203.93)92.5	RT(M10)
2GEL2000	2	2,000	(19.29)490	(13.78)350	(13.58)345	(15.08)383	(270.73)122.8	RT(M10)
2GEL3000	2	3,000	(27.95)710	(13.90)353	(13.50)343	(15.04)382	(419.98)190.5	RT(M10)
6GEL150	6	150	(10.24)260	(7.09)180	(9.69)246	(9.92)252	(52.47)23.80	RT(M8)
6GEL160	6	160	(11.77)299	(6.77)172	(8.94)227	(9.09)231	(56.22)25.50	RT(M8)
6GEL180	6	180	(12.05)306	(6.61)168	(8.66)220	(8.90)226	(59.52)27.00	RT(M8)
6GEL200	6	200	(12.72)323	(7.01)178	(8.90)226	(9.06)230	(67.90)30.80	RT(M8)

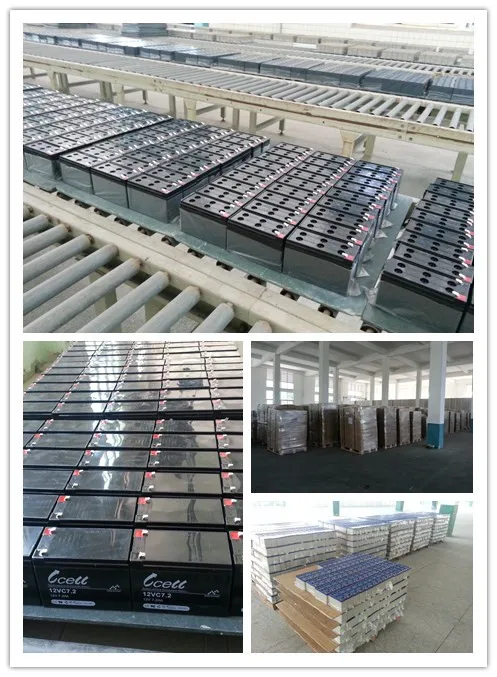

7. FACTORY VIEW

Solar System DC12V 200ah Deep Cycle Battery factory manufacture

Wuhan V-cell Energy Technology Co., Ltd.

Business Type:Manufacturer
