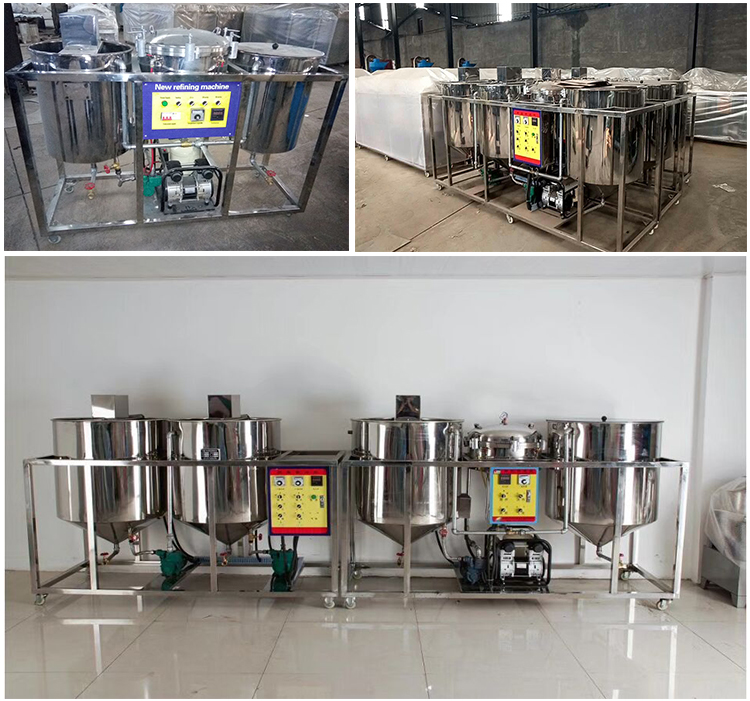

Product Application:

Small oil refinery machine is more suitable for household and small workshop, with the wide application for soybean oil refinery, peanut oil refinery, sunflower seeds oil refinery, cotton seeds oil refinery, canola oil refinery, linseeds oil refinery, rice bran oil refinery, coconut oil refinery, palm oil refinery, cator oil refinery, etc...

Structure of oil refining machine:

1.small edible oil refinery machine structure:

The machine is consist of hydration deguming&deacidification system, filter de-coloring, transmission system, oil liquid conveying system, transmission and lubrication system, electrical control system and machine frame.

2.hydration deguming&deacidification system of our small edible oil refinery machine:

This part is consist of mixer, deguming tank, gum outlet and transfer pipe

3.filter de-coloring system of our small edible oil refinery machine:

This part is consist of oil inlet, a sealing cover, cover handle, fine filter bucket, oil collecting tank, filter cloth,

and oil outlet.

4.transmission system of our small edible oil refinery machine:

This part is consist of speed control motor, motor controller, governor and power module

5.electrical control system of our small edible oil refinery machine:

This part is consist of miniature circuit breaker, motor controller, power supply module, contactor, relay,

potentiometer and knob.

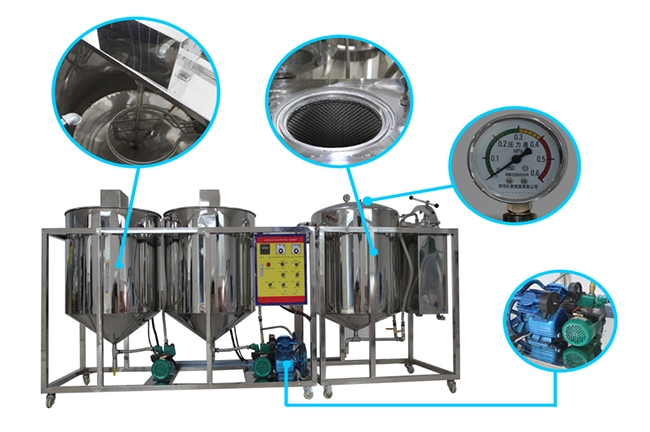

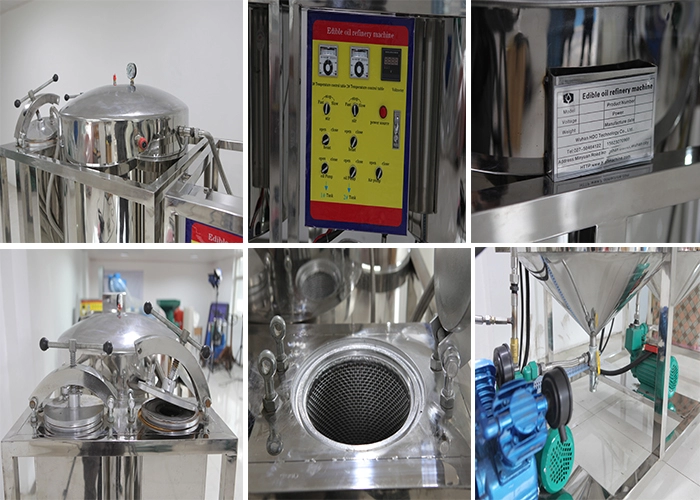

Details show:

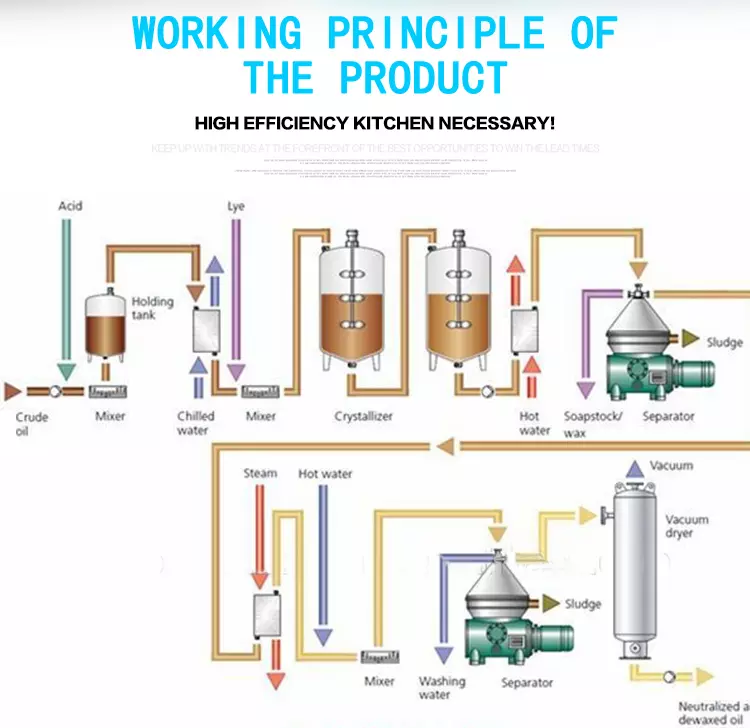

Working principle of il refining machine:

Detailed process of our small edible oil refinery machine:

Crude oil-→deguming and deacidification-→decoloring-→fine filtering-→final product oil-→process finished

Products parameter:

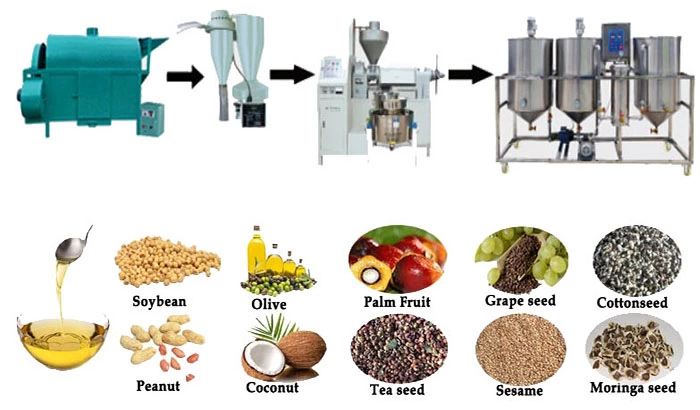

A small complete production line of edible oil:

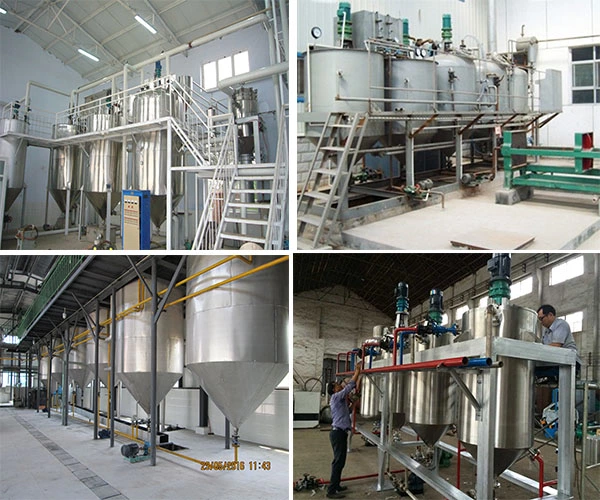

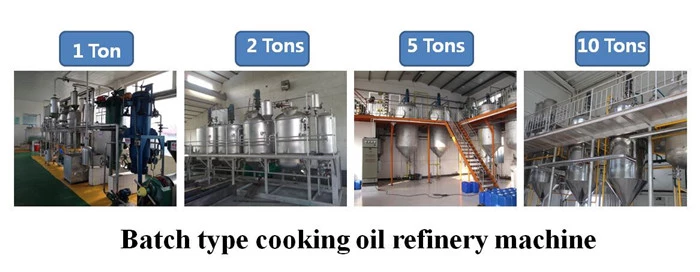

larger capacity edible oil refining equipment:

Terms and Conditions:

1. Payment: T/T 30% advance-payment, 70% balance before shipment

2. Delivery Time: Within 7 days after receiving payment

3. Shipping Term: FOB, CFR, CIF or according to your request

4.Packing Details: wooden case

5.Delivery details: within 15 days after the payment

Warranty Period:

* Free replacement of wearing parts in 6 months from the date of purchasing;

* Free replacement of main body in 12 months from the date of purchasing.

After-sale service:

1. Free replacement of wearing parts in 6 months from date of purchasing

2. We provide spare parts all year around at factory cost.

3. We provide technical solutions for clients at any time.

Our Company

Wuhan HDC  is a Professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. We have obtained rich experience and practice in palm fruit oil machine, vegetable oil pretreatment, prepress,extraction, sophisticated technology and equipment designs etc, owing wide international market in more than 130 countries and regions.
With more than 30 years of experience on oil making machine, we provide a comprehensive range of products
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English.

                 Our company                                                    Our team

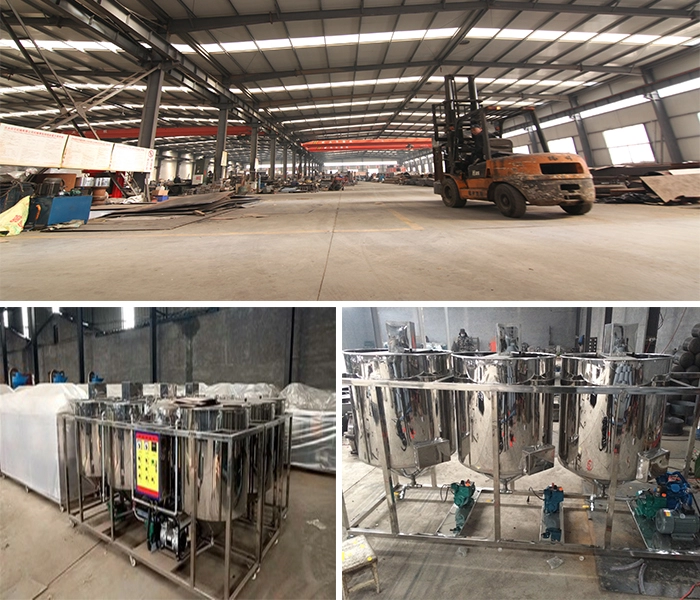

                                                                                Our workshop
