This series is a new series of intelligent multi-purpose solar charge controllers. Its innovative design makes it easy to install and quite user-friendly. Optimized charging and discharging management extends the service life of batteries considerably. Meanwhile, parameters are explicitly displayed. Most parameter values can be set to meet various applications.

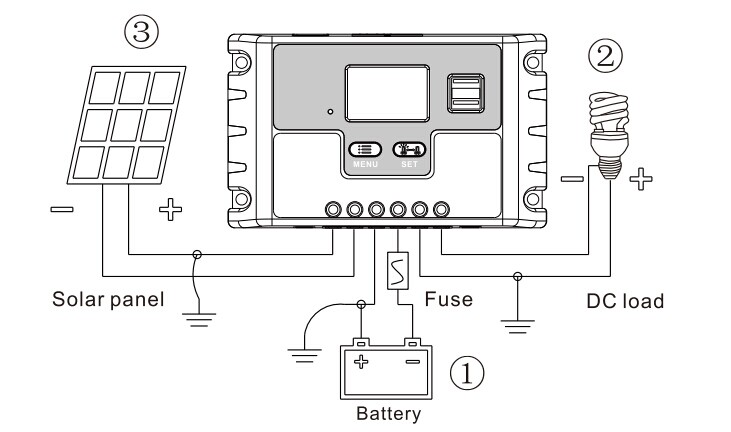

1.Connection diagram

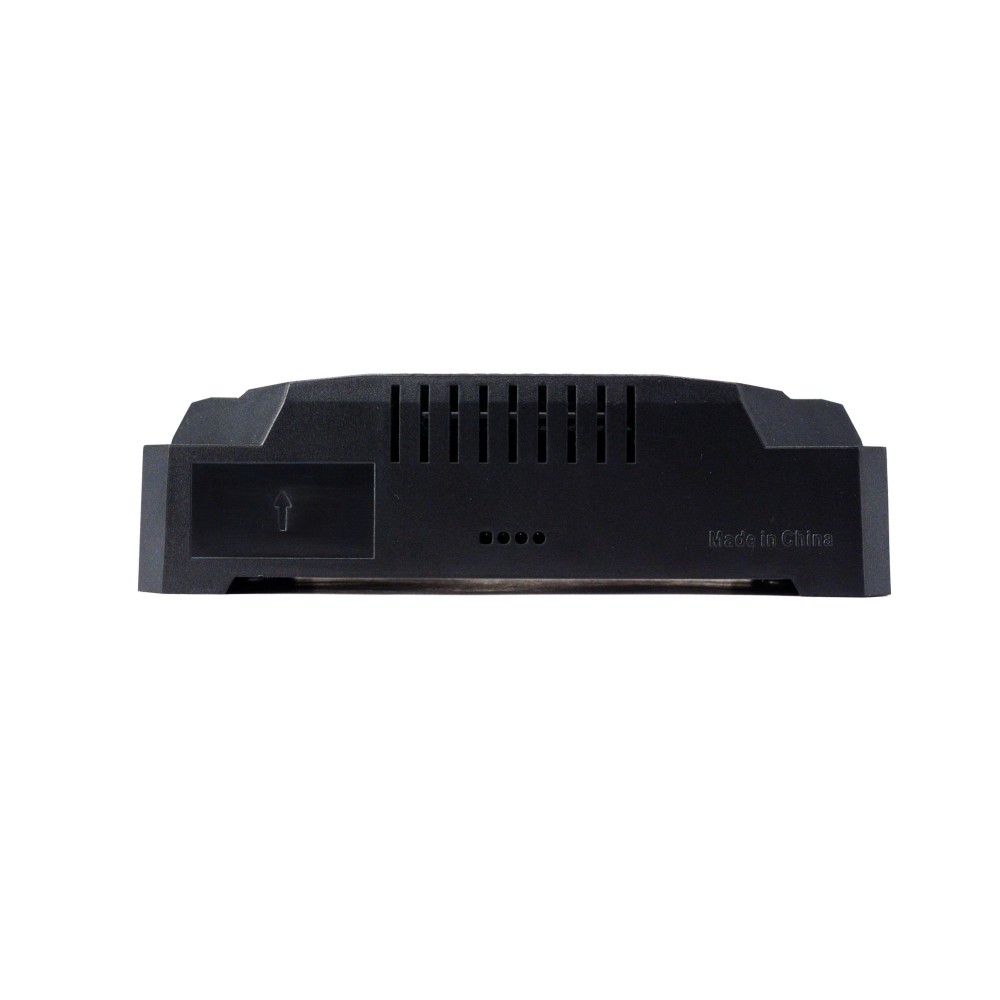

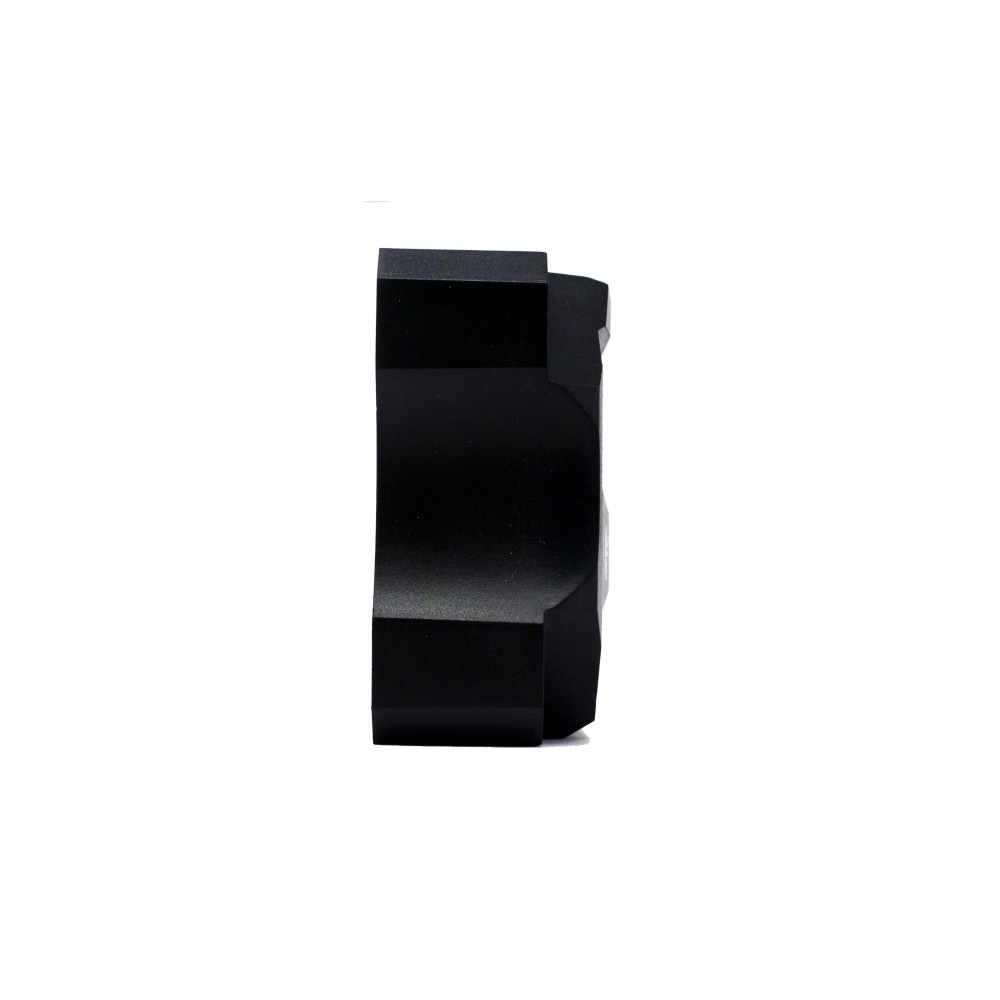

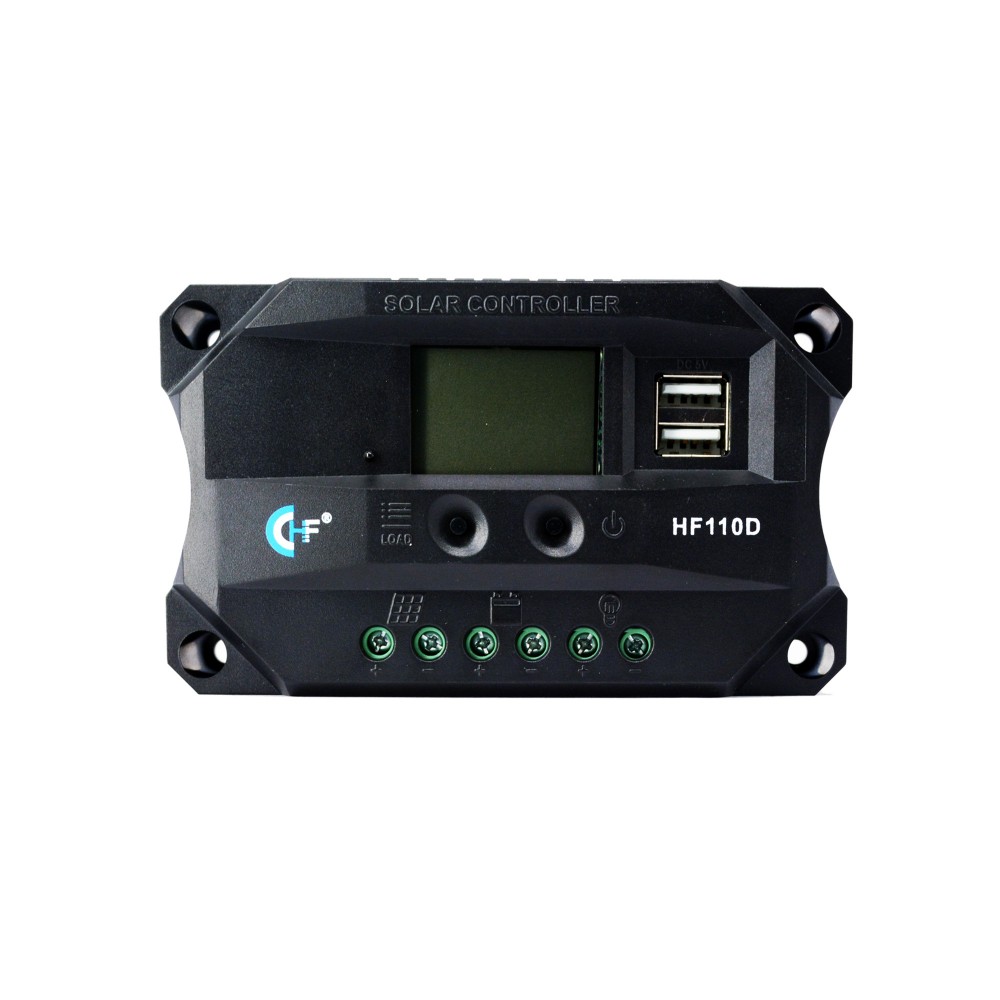

2. product details

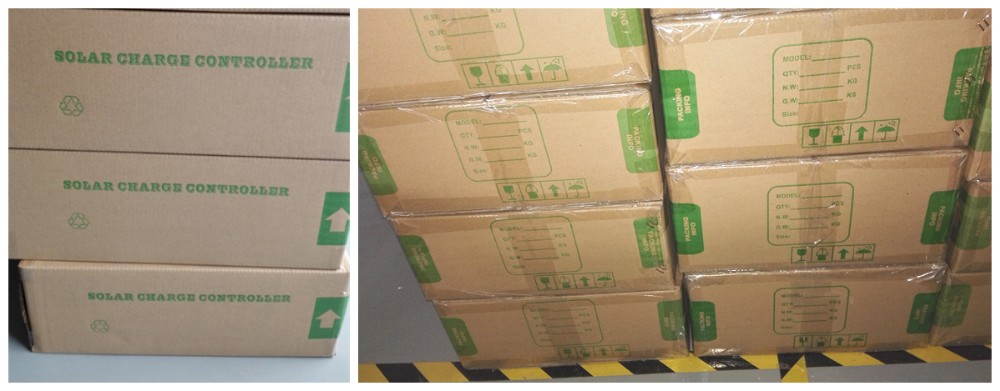

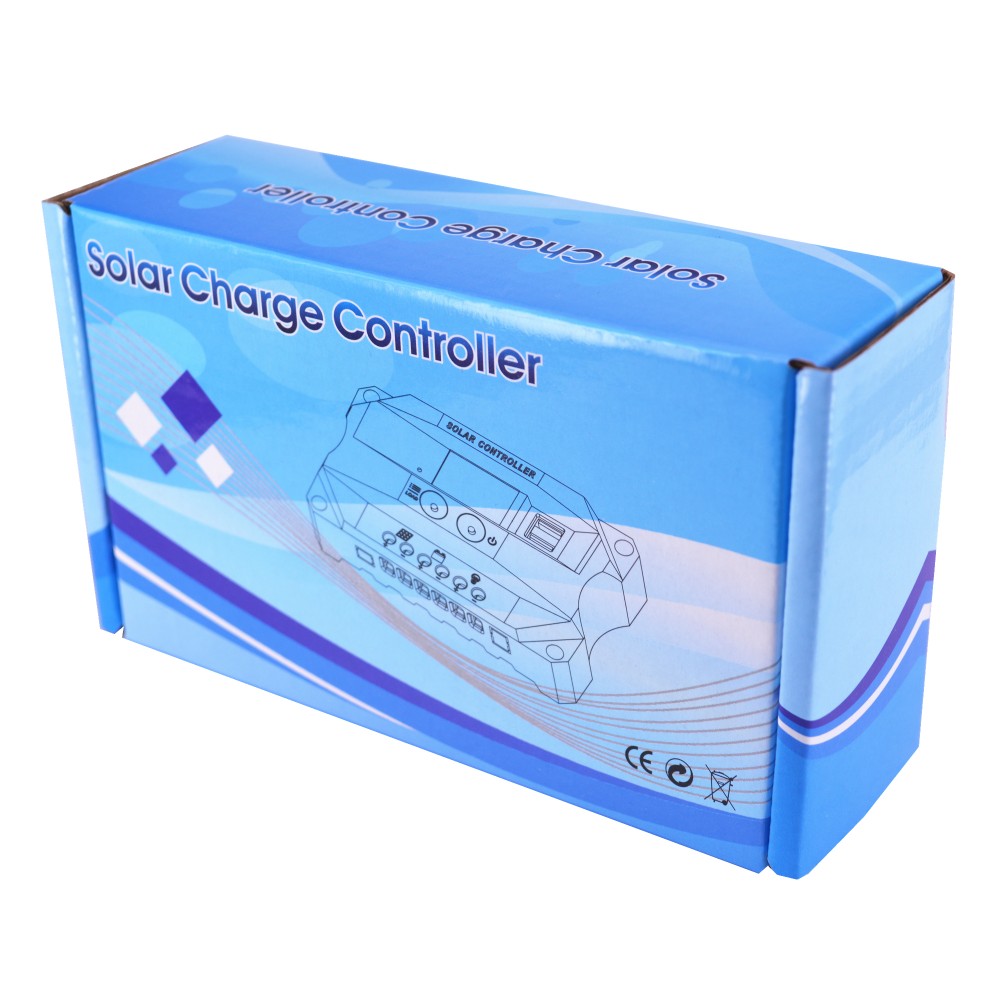

Package Information:

size:130*75*38mm
pcs/carton:48pcs
carton size:415mm*305mm*230mm
volume:0.029m3
gross weight:11.6kg

3.Function

(1)Four-stage PWM charging mode.

(2)Preset charging parameters for three battery types.

(3)Detecting mode for battery voltage level is adjustable.

(4)Charging and discharging parameters are adjustable.

(5)Temperature compensation is applied.

(6)Various controlling mode for load.

(7)Optional communication function.

(8)Protection against reverse connected solar panel and input over-current.

(9)Protection against under-voltage, over-voltage, reverses connection and reverse discharge of battery.

(10)Protection against over-current of load.

(11)Protection against internal over-heat.

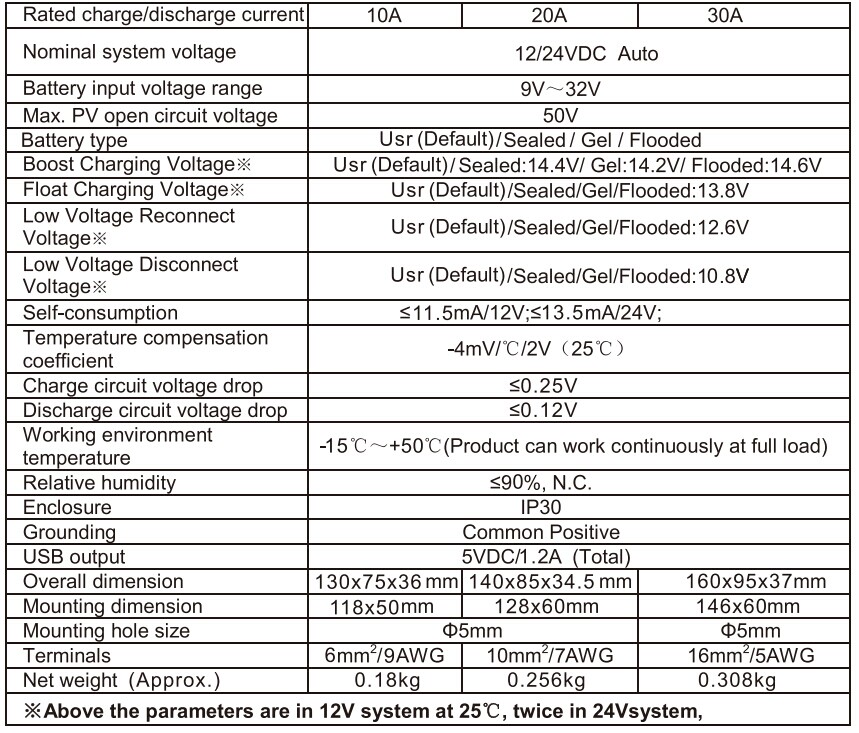

4.Technical data
