12V100Ah AGM VRLA Rechargeable Solar Battery

ID:22060677671

Category: Electrical & Power Energy Batteries

FOB Price:US$ 93.260 / Piece(s)

MOQ:50.00 Piece(s)

Product Keywords:

12V100Ah Solar Battery12V100Ah AGM BatteryRechargeable Solar BatteryMaintenance free

Payment Method:

L/CT/T

Product Category

Electrical & Power Energy > Batteries

Trademark

VCELL

Product Package

Solar Battery 12V 100ah: Standard PVC bag, Carton, Pallet

Specification

Battery

Place of Origin

China

Port

China port

12V100Ah AGM VRLA Rechargeable Solar Battery

1. PRODUCT INFORMATION

SPECIFICATION

Model	12VHC100
Voltage(V)	12
Capacity(20°C)	100Ah @ 10HR-rate
Dimensions (L x W x H/T.H)(mm)	*331173216222mm**
Weight(KG)	30.0
Teiminal	RT-08

12V100Ah AGM Solar Battery

2. FEATURES AND BENEFITS

1. Designed floating charging service life: 15years (25oC)

2. Safety valve installation for explosion proof ,Sealed and maintenance free operation

3. By using strong grids, high purity lead and patented Gel electrolyte

4. Extremely low self-discharge characteristic

5. Wide operating temperature range from -20oC~55oC

6. Lead Aluminum calcium Tin alloy high energy, prevent corrosion

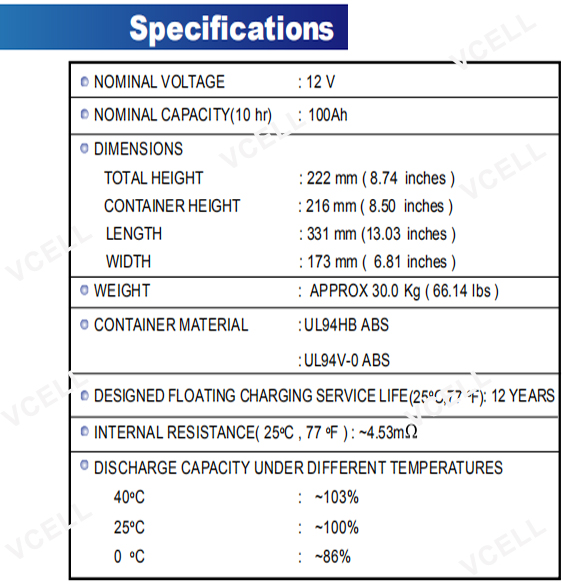

3. Characteristics

More technical datas about 12V Battery 100AH, welcome to contact us.

Solar-12V-battery-100AH

4. APPLICATION

1. Photovoltaic systems
2. Renewable Energy Systems
3. Railroad Utilities
4. Outdoor control Equipments
5. Electric Utilities
6. Solar/Wind/Hybrid power systems

7. DC power supply

8. Security and fire alarm systems

9. Emergency lighting systems

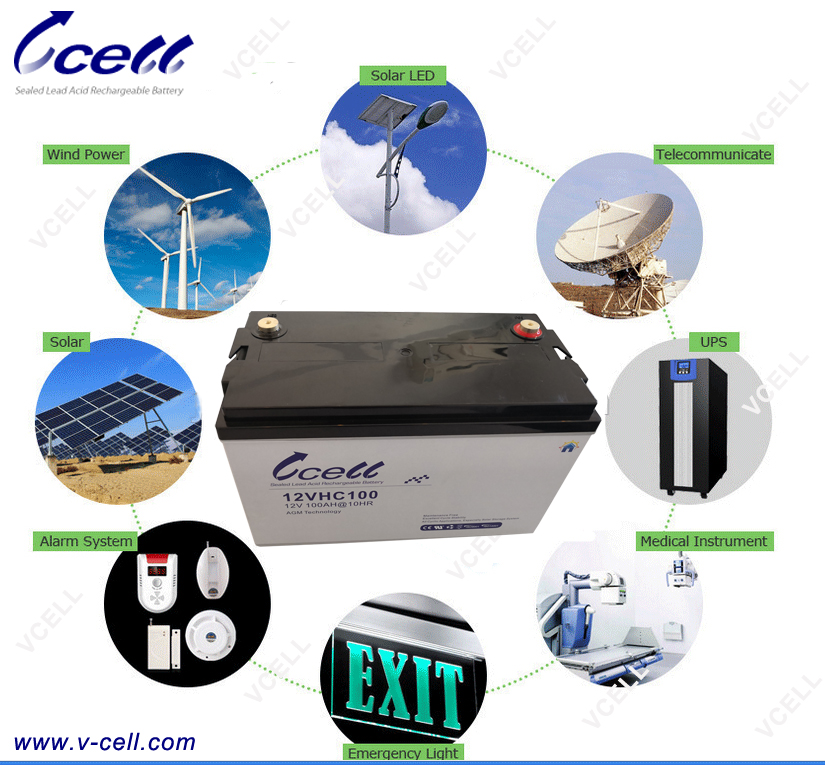

5. PRODUCT PHOTO

12V100Ah AGM VRLA Rechargeable Solar Battery

Model: 12V100Ah solar battery

12V-battery-100AH

6. More related models for VHC series

Model	Nominal Voltage (V)	Rated Capacity @ 10HR (Ah)	Dimensions (in) mm				Weight (Lb) kg	Terminal Type
			Dimensions (in) mm
			Length	Width	Height	Overall Height
			Length	Width	Height	Overall Height
"VHC" SERIES, DEEP CYCLE FOR SOLAR (12-15 Year Design Life for Floating Charge or 500 Cycles @ 80% DOD)
12VHC38	12	38	(7.76)197	(6.54)166	(6.69)170	(6.69)170	(25.35)11.50	RT(M6)
12VHC45	12	45	(7.76)197	(6.54)166	(6.69)170	(6.69)170	(29.76)13.50	RT(M6)
12VHC50	12	50	(9.06)230	(5.43)138	(8.31)211	(8.50)216	(33.07)15.00	RT(M6)
12VHC55	12	55	(9.06)230	(5.43)138	(8.31)211	(8.50)216	(34.83)15.80	RT(M6)
12VHC65	12	65	(13.78)350	(6.57)167	(6.81)173	(6.81)173	(42.77)19.40	RT(M8)
12VHC70	12	70	(10.24)260	(6.61)168	(8.35)212	(8.58)218	(48.50)22.00	RT(M6)
12VHC80	12	80	(12.09)307	(6.61)168	(8.31)211	(8.46)215	(56.22)25.50	RT(M6)
12VHC90	12	90	(12.09)307	(6.61)168	(8.31)211	(8.46)215	(57.76)26.20	RT(M6)
12VHC100	12	100	(13.03)331	(6.81)173	(8.50)216	(8.74)222	(66.14)30.00	RT(M8)
12VHC120	12	120	(12.98)406	(6.81)173	(8.23)209	(9.33)237	(78.04)35.40	RT(M8)
12VHC135	12	135	(13.43)341	(6.77)172	(11.06)281	(11.30)287	(94.14)42.70	RT(M8)
12VHC150	12	150	(19.09)485	(6.69)170	(9.45)240	(9.45)240	(97.00)44.00	RT(M8)
12VHC180	12	180	(20.98)533	(8.15)207	(8.46)215	(8.62)219	(116.84)53.00	RT(M8)
12VHC200	12	200	(20.59)523	(9.41)239	(8.58)218	(8.74)222	(131.18)59.50	RT(M8)
12VHC230	12	230	(20.47)520	(10.55)268	(8.66)220	(8.82)224	(169.91)68.00	RT(M8)
12VHC250	12	250	(20.47)520	(10.55)268	(8.66)220	(8.82)224	(156.53)71.00	RT(M8)
2VHC100	2	100	(6.73)171	(2.83)72	(8.07)205	(8.43)214	(12.90)5.85	RT(M8)
2VHC200	2	200	(6.77)172	(4.37)111	(12.95)329	(14.37)365	(28.88)13.1	RT(M10)
2VHC300	2	300	(6.73)171	(5.94)151	(13.15)334	(14.37)365	(41.45)18.8	RT(M10)
2VHC400	2	400	(8.31)211	(6.89)175	(12.91)328	(14.37)365	(54.67)24.8	RT(M10)
2VHC500	2	500	(9.53)242	(6.85)174	(12.95)329	(14.37)365	(68.12)30.9	RT(M10)
2VHC600	2	600	(11.89)302	(6.93)176	(12.99)330	(14.37)365	(80.69)36.6	RT(M10)
2VHC800	2	800	(16.14)410	(6.93)176	(12.99)330	(14.37)365	(108.03)49	RT(M10)
2VHC1000	2	1,000	(18.70)475	(6.89)175	(12.95)329	(14.37)365	(133.16)60.4	RT(M10)
2VHC1500	2	1,500	(15.79)401	(13.82)351	(13.46)342	(15.08)383	(203.27)92.2	RT(M10)
2VHC2000	2	2,000	(19.29)490	(13.78)350	(13.58)345	(15.08)383	(270.07)122.5	RT(M10)
2VHC3000	2	3,000	(27.95)710	(13.90)353	(13.50)343	(15.04)382	(418.88)190	RT(M10)
6VHC150	6	150	(10.24)260	(7.09)180	(9.69)246	(9.92)252	(51.81)23.50	RT(M10)
6VHC160	6	160	(11.77)299	(6.77)172	(8.94)227	(9.09)231	(55.12)25.00	RT(M8)
6VHC180	6	180	(12.05)306	(6.61)168	(8.66)220	(8.90)226	(58.86)26.70	RT(M8)
6VHC200	6	200	(12.72)323	(7.01)178	(8.90)226	(9.06)230	(67.24)30.50	RT(M8)

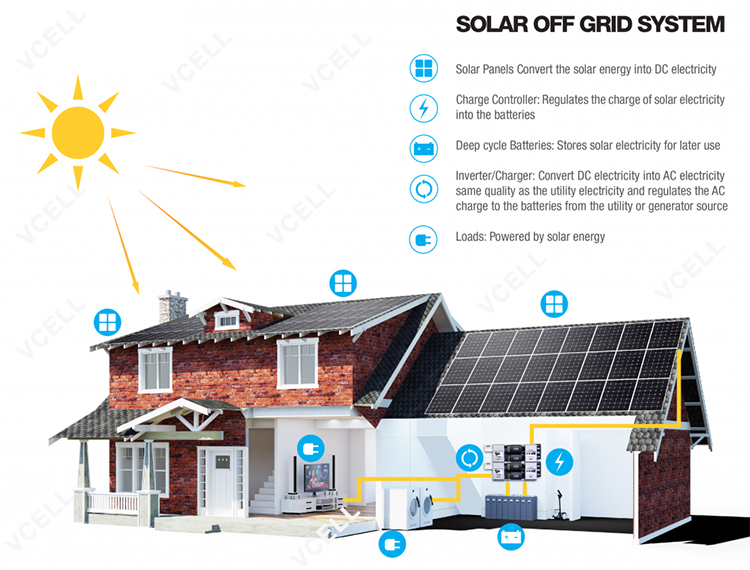

Solar-OFF-GRID-System

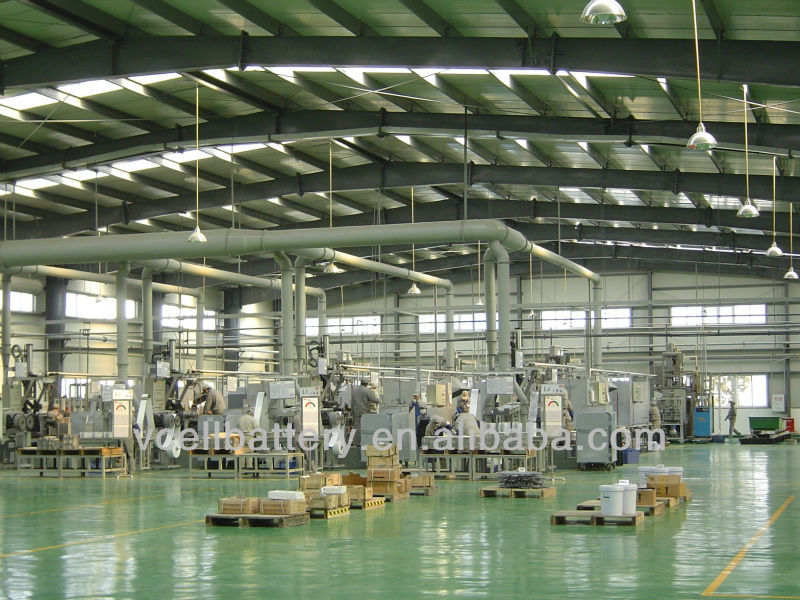

7. FACTORY VIEW

assembling plant

8. COMPANY REVIEW

Energy, The Source Of Power

Wuhan V-cell Energy Technology Co.,LTD. was established in 2005 and specializes in the research, development, manufacture and sale of Vcell brand batteries. The full battery range includes VRLA ( Valved Regulated Lead Acid ) batteries, lithium ion batteries and Primary lithium batteries, which are widely used in telecom, intellectual meters, emergency lighting, alarm systems, security, medical field, cordless devices and wheelchair industries. Our experience and technical excellence are acclaimed in China and world telecom industry.
