Total Contec,established in 1994, is a large-scale group company integrating construction, scaffolding design & manufacture, decoration/modification design & supply, landscape architecture design & construction, real estate development and etc.

Under Total Group, there are three factories , including a scaffolding system factory（RAPID Jumply）, an aluminum product factory（RAPID Aluminum), a prefabricated building factory in Tangshan. We are invading construction, horticultural, and international trading business.Till now, our group holds over 1800 employees and occupies an area of 380 acres.

Special design can be used for limited space, such as narrow footpath and passage,  It can be built in the elevator or other stair. Steady
and parts high utilize rate. Our ladder have enough strength, to fit for building site's circumentsance, while you only need spend short
time to remove and put all of them into microbus, easy to carrying.

Characteristic:

1. Flexible frame parts ensure you increase work height 0.4m step by step, erect height you need.

2. Easy handling and structures, can be a single set of independent use.

3. Use aviation aluminum alloy materials durable, stable and reliable.

4. Work platform can be built in each rung, two rung interval 0.4m. 5. Passed SGS safety standard and GS certification.

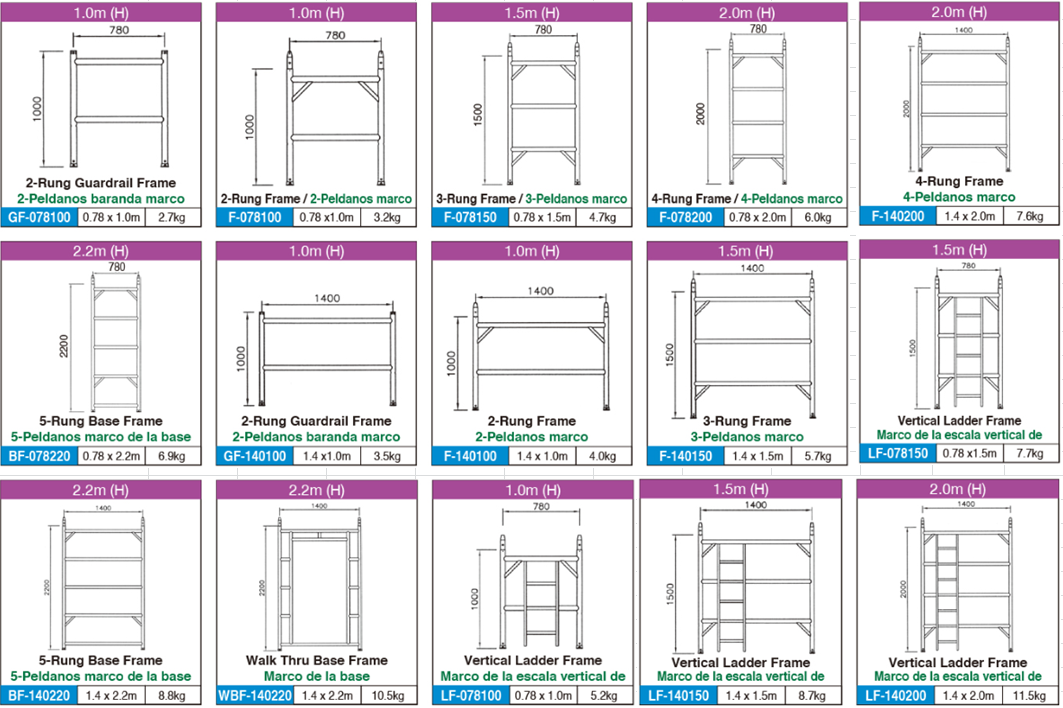

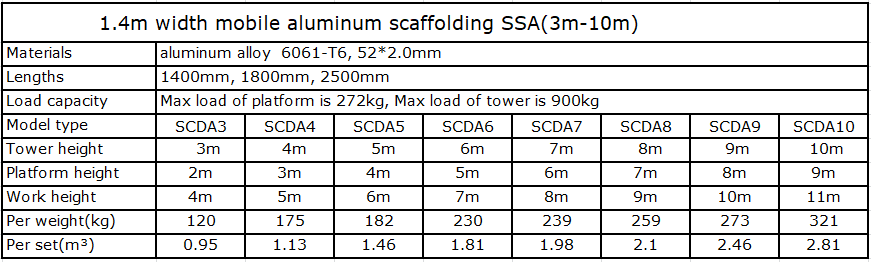

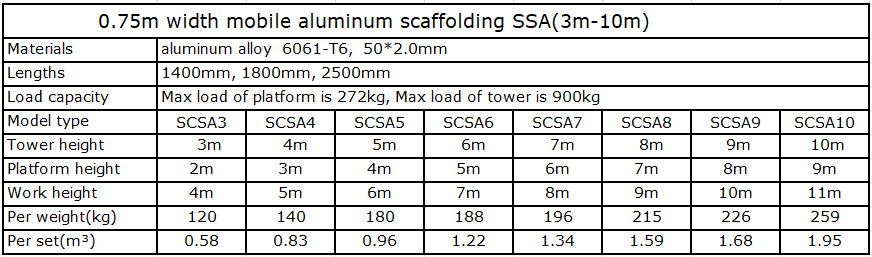

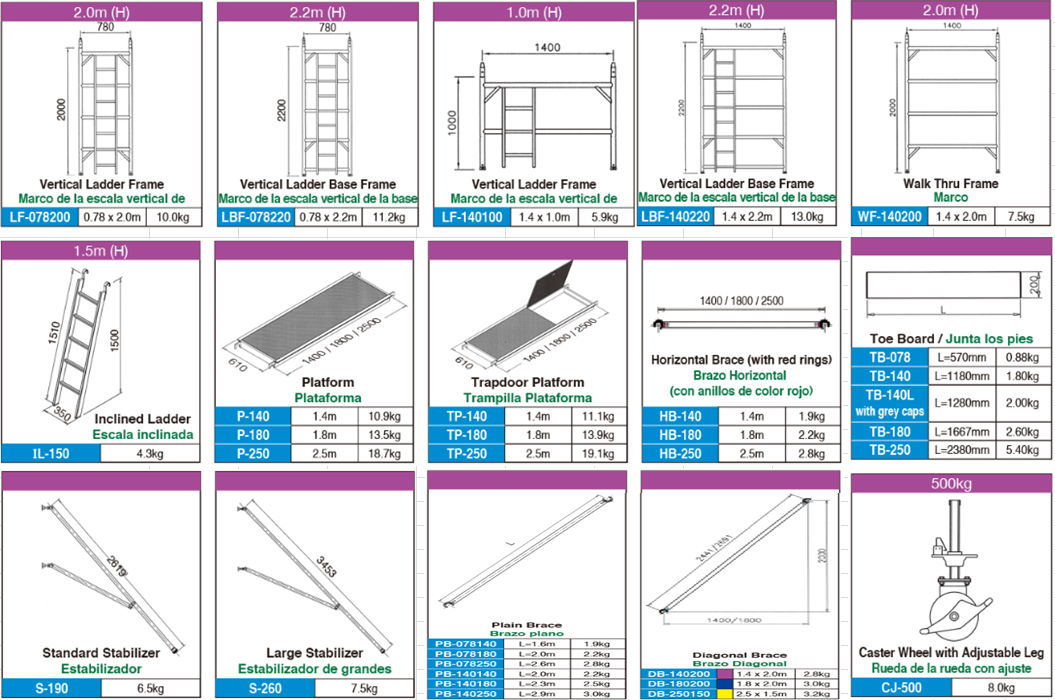

Specification:

1. Frame: width 0.75m, height 1.5m, 2m, handrial: width 0.8m, height 1m.

2. Single width: Can choose: 800*1400mm, 800*1800mm, 800*2500mm.

3. Tower height: Can choose from 2m to 10, special design can be up to 20m.

4. Carrying capacity: total load 900kg, each plank max 272kg.

5. Materials: Dia 51.5mm, 50.8mm, aluminum alloy 6082-T6/6061-T6.

6. Thickness:  2.0mm

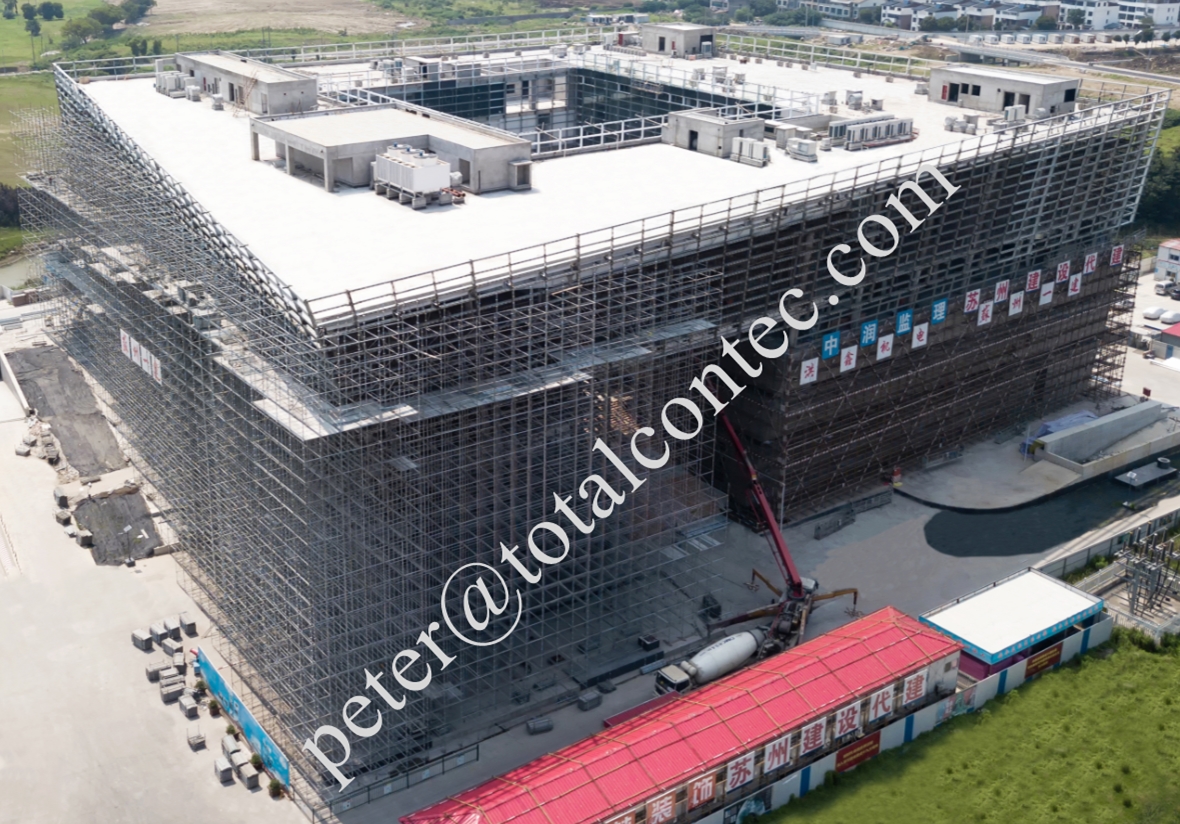

Scaffolding Project case
