Steering GearsSteering ShaftPower steeringEPSFN
L/CT/TD/PPaypalOthers

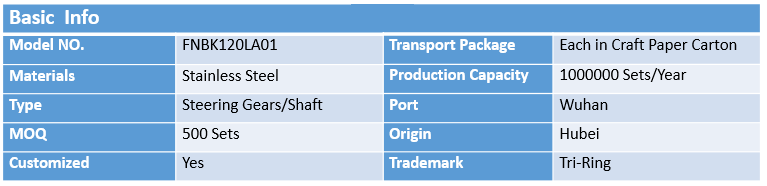

Model NO.：FNBK120LA01
Materials：Stainless Steel
Type：Steering Gears/Shaft
MOQ：500 Sets
Customized：Yes
Transport Package：Each in Craft Paper Carton
Production Capacity：1,000,000 Sets/Year
Port: Wuhan
Origin: Hubei
Brand: Tri-Ring

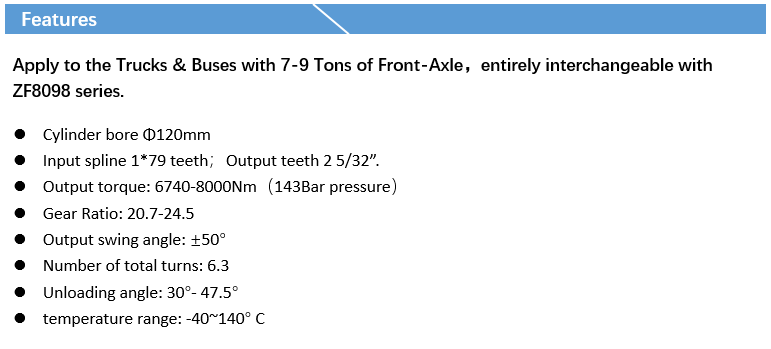

Features
Apply to the Trucks & Buses with 7-9 Tons of Front-Axle，entirely interchangeable with ZF8098 series.
l Cylinder bore Φ120mm
l Input spline 1*79 teeth；Output teeth 2 5/32”.
l Output torque: 6740-8000Nm（143Bar pressure）
l Gear Ratio: 20.7-24.5
l Output swing angle: ±50°
l Number of total turns: 6.3
l Unloading angle: 30°- 47.5°
l temperature range: -40~140° C
