QCQ-40 Asphalt Mixing Plant

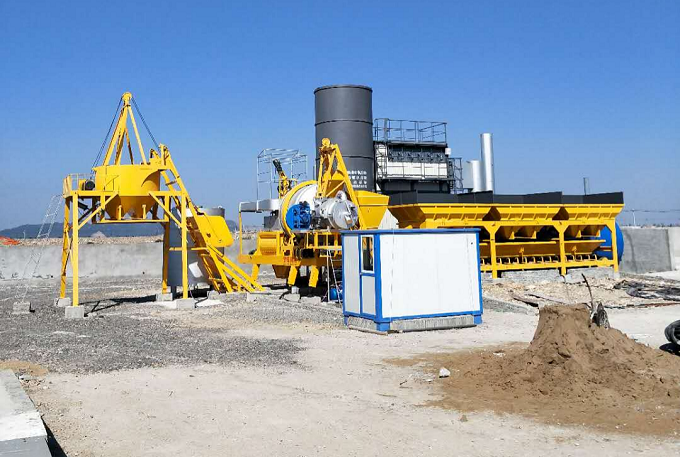

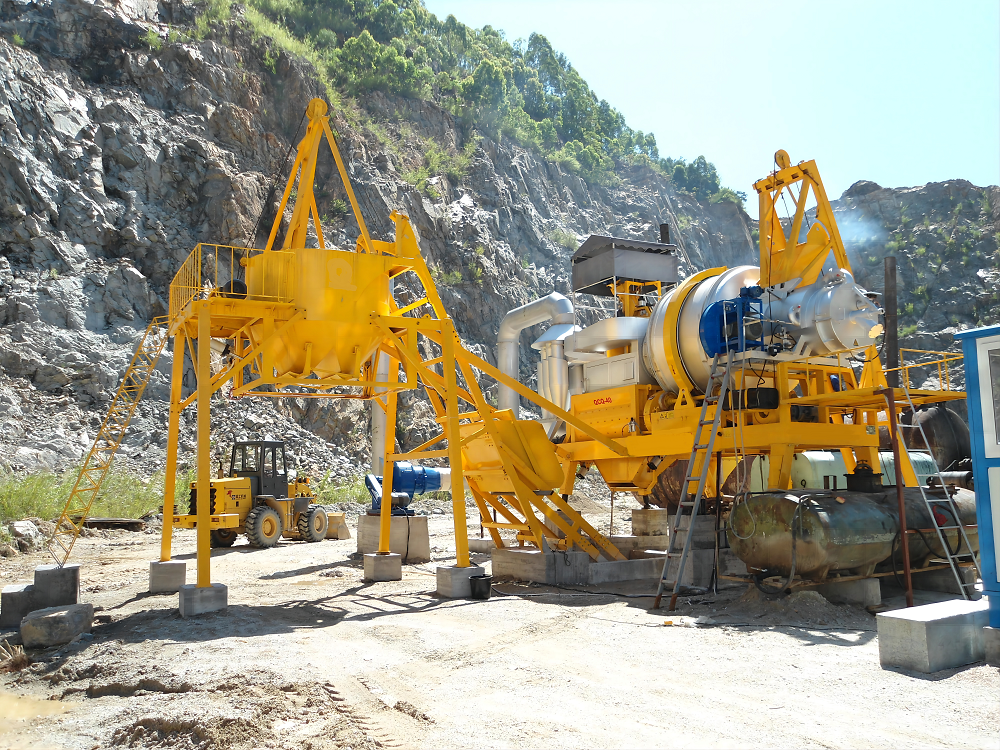

Site construction picture for reference
China Machinery Equipment Co. (CMEC)
Add: No.1 Building , 697 Linding Road, Shangcheng District, Hangzhou city, China.
Email: sales_chinamachine@yeah.net
Phone number: +86 15088721280 Mr. George (Manager Director)
Model | QCQ-40 Mobile Asphalt Mixing Plant | |
Capacity | 40 TONS PER HOUR (Standard Working Condition) | |
Type | Mobile Traveling Type: 20km/hr | |
Burner | Diesel / heavy oil type | |
Fuel consumption | 5.5-7.5kg/t | |
Asphalt Mixer | 1.2m3 /batch (1.8ton / batch) | |
Aggregate size | ≤50mm | |
Aggregate Storage Bins | Volume: 3*5 m3 =15 m3, accumulative scale | |
Weighing Accuracy | Aggregate | ≤2000kg ± 2.5% |
Filler | ≤200kg ± 2.5％ | |
Bitumen | ≤200kg ± 2.0% | |
Hot Asphalt temperature | 120~170 ℃, adjustable | |
Drum-drive power | 18.5 kW | |
Burner power | 7 kW | |
Total Installation Power | ≈140 kW (diesel burner) | |
Electrical Design | 220/380V-50Hz | |
QCQ40 Asphalt mixing plant configuration table
Equipment Name: Asphalt mixing plants
Model： QCQ40
Rated production capacity： 40t/h
Rated working condition： Asphalt mix is medium grain size (Ac20)
Aggregate Specification
Pass through 40mmscreen： 100%
Pass through 3mm screen： 40%
Dryer drum outlet temperature： 160℃
Ambient atmospheric pressure： 760 mmHg
Ambient temperature： 20℃
Aggregate density： 1650 kg/m3
Aggregate moisture content： ≤5%
Aggregate specific heat： 0.21 Kcal/kg℃
Powder content： 5%
Asphalt content： 5%
Fuel calorific value：
Heavy oil： 9,850 Kcal/kg
Diesel： 10,500 Kcal/kg
Electrical Design
Single phase 220V ,Three phase 380v ,frequency 50HZ
Technical parameters
Productivity | 40t/h | |
Feeding bin volume | 1200kg | |
Mixture output | 1.8t/bin | |
Agg. size | <=50mm | |
Agg. bins | 3 bins,single volume:5m3， cumulative measurement | |
Weighing range and precision | Agg. | ≤2000kg±2.5% |
Filler | ≤200kg±2.5% | |
Bituemn | ≤200kg±2.0% | |
Products temp | 120~170 ℃，(adjustable) | |
