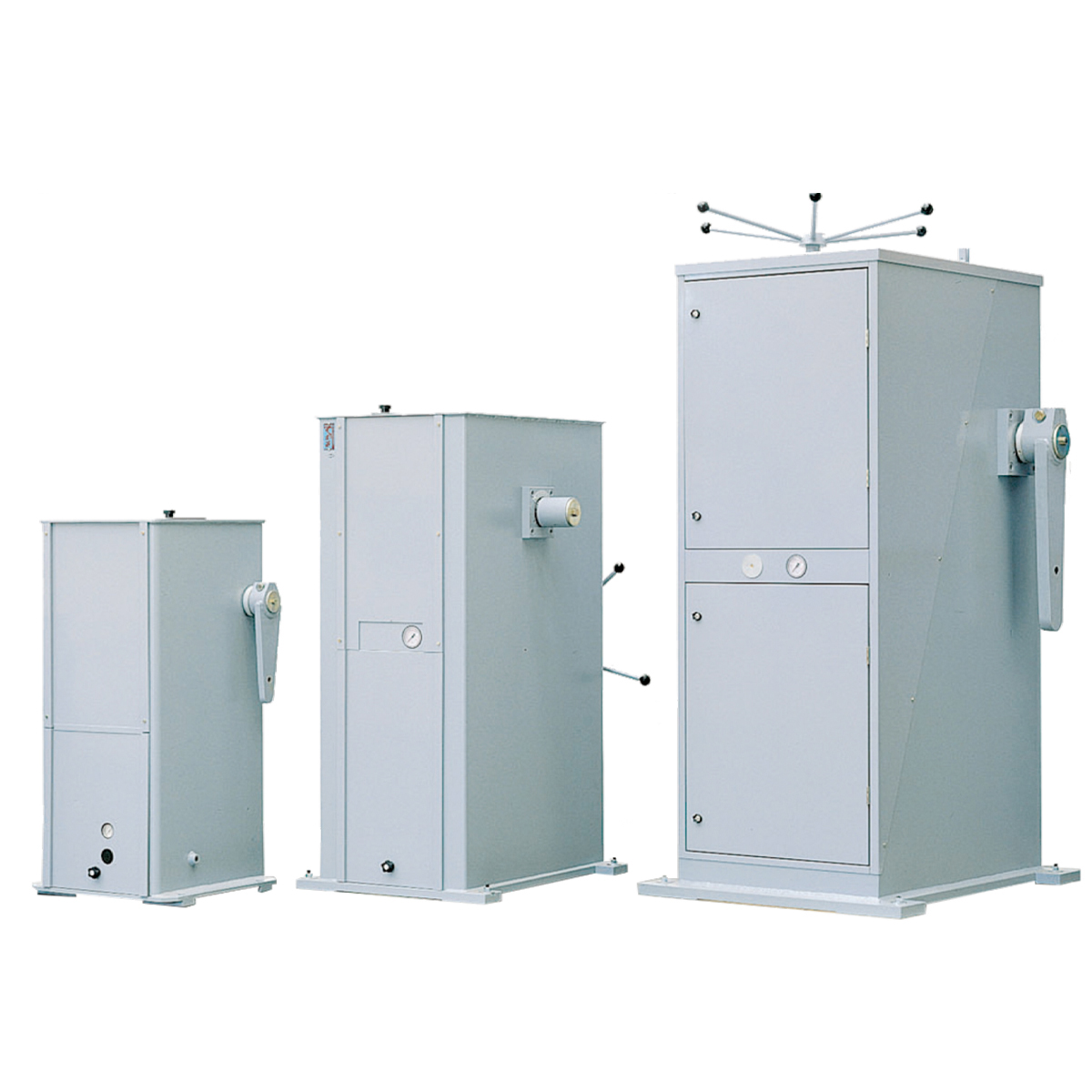

PR Series Box type pneumatic actuator

PR series box type pneumatic actuator adopts platform installation and anchor bolt fixation.

It is driven by connecting rod rocker arm to directly output angular torque to operate damper, fan and other equipment.

The solid shell can ensure the continuous operation of the equipment in harsh environments, and the large removable operation panel is convenient for users to inspect and maintain the equipment.

Both ends of the output shaft are spline structure, which can easily adjust the direction of the rocker arm.

Features：

>The box type pneumatic actuator is easy to install, arranged on the platform and driven by connecting rod.

>All elements are arranged inside the housing. Waterproof and dustproof, safe and reliable.

>It is not affected by high temperature environment, extending service life and reducing maintenance cost.

>The staff can conveniently manage and maintain the equipment on the platform.

>The cylinder is designed with a piston self-lubricating system to realize lifelong maintenance free.

Specification：

> size：160~600 mm

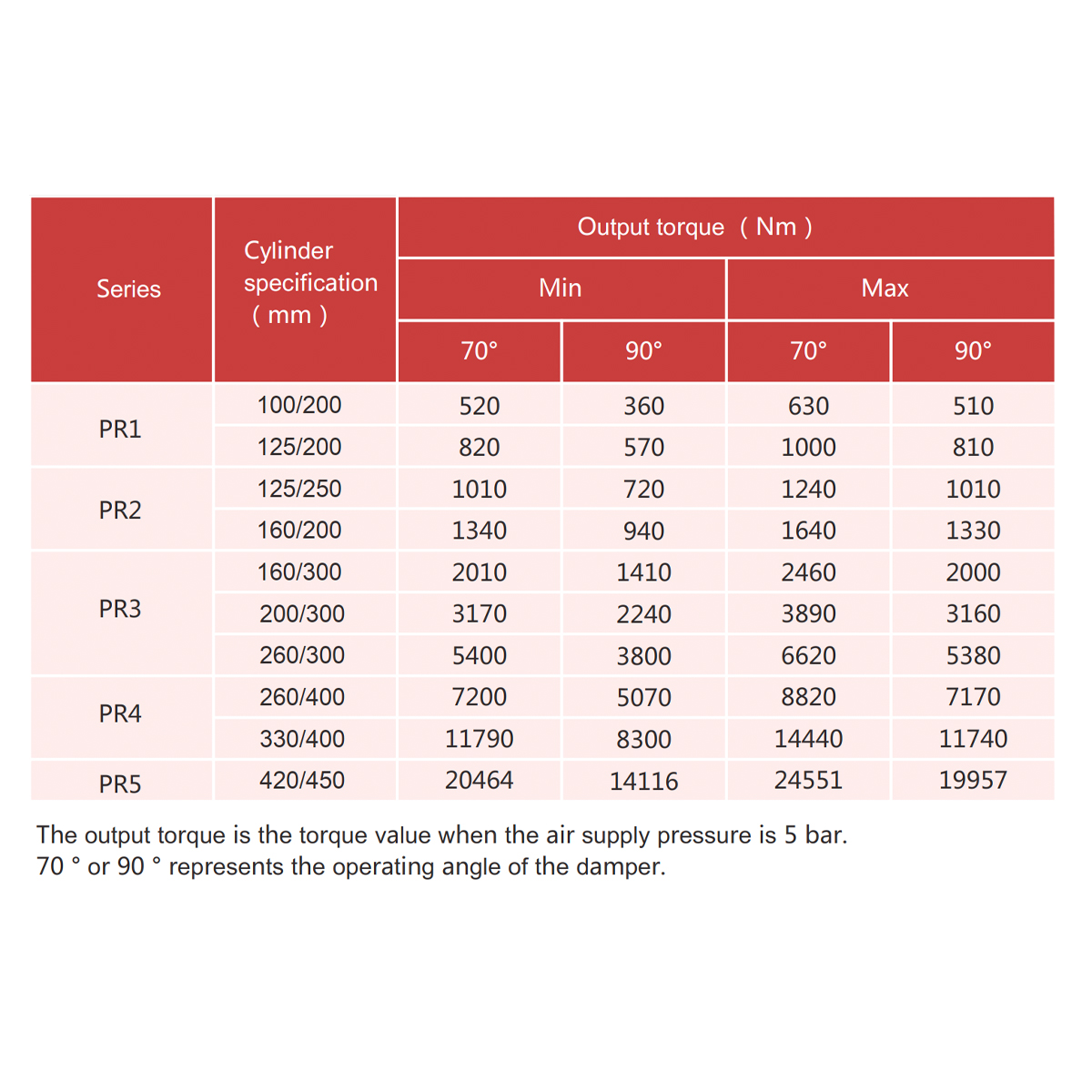

> thrust：see diagram

> Lever features:90° or 70° operating angle

> air supply：max 10 bar

> temprature：-20~150℃（lower or higher temperature on request）

> stroking time：on request

> emergency position：open/close/lock in

> tube and fitting：cooper or stainless steel

> Housing ：Carbon steel
