On site Chlorine Gas Generation(Brine Electrolysis Technology)

Product Introduction

Features:

Raw Material: Salt, Electricity
Output: Chlorine gas, Chlorine dioxide, Hypochlorous Acid  Anolyte
50% cost less consumption of raw materials than NaCLO generator
100% safe: No risk of any hazardous Chlorine storage&operation
Skid Mounted Plug-Play design
Remote Monitor&Control
Environmental Friendly

Ability of Counter-Terrorism

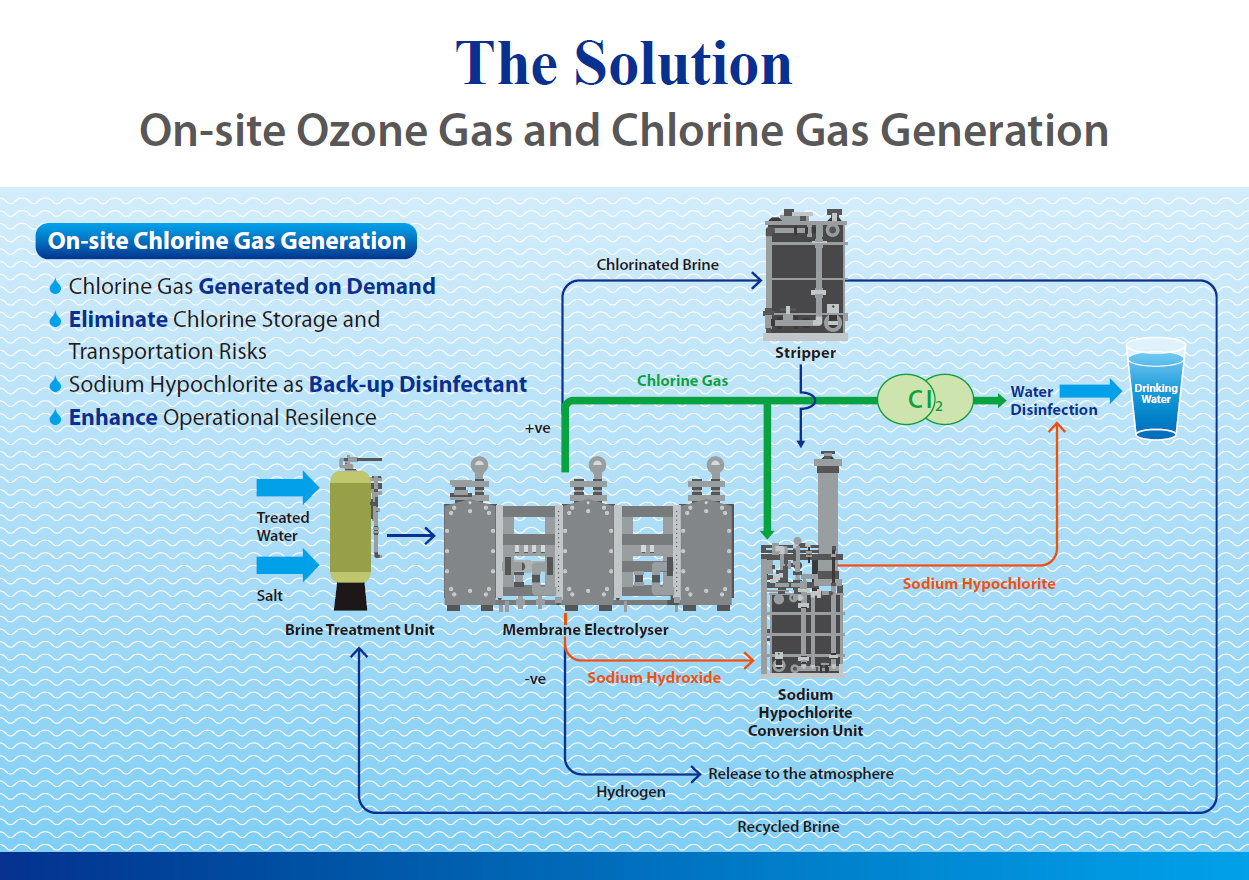

How it works

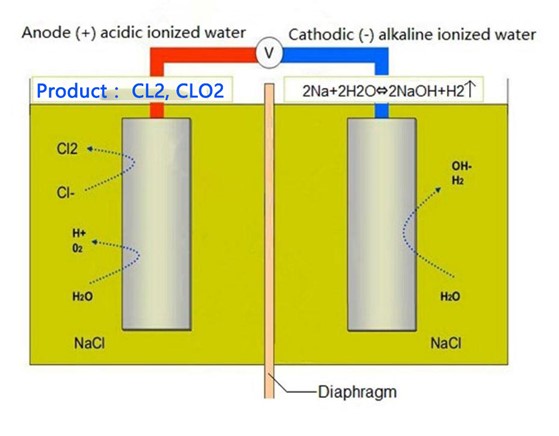

Salt (NaCl) water Brine is electrolyzed in an electrolytic cell by ECA technology, Chlorine gas (Cl2) is generated in the anode cell, and then immediately dosing into water for disinfection treatment on the plant site; None Storage, None hazardous risk. It can be used widely on all kinds of water treatment plants.
Meanwhile, hydrogen H2 and A little of NaOH liquid is generated and discharged by cathode cell .

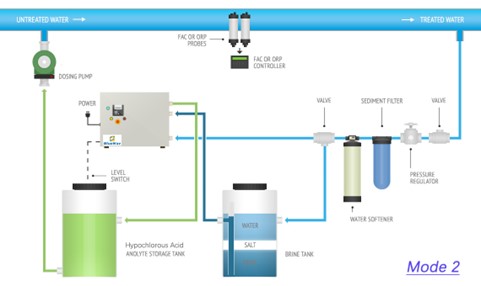

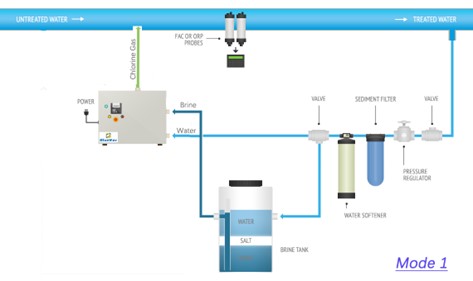

To satisfy client’s different requirements on water plant site, The system is able to work on two modes as following:





Features

• Specification Data

Parameter	Specification	Unit
FAC	50-5000	g/h
Electricity consumption	8	Kw.h/kg.CL2
Sal Consumption	1.6	Kg/kg.CL2
Generator Dimension

Model	FAC g/h	Installed Power kw	Salt Consumtion Kg/kg CL2	AC Power Consumtion Kg/kg CL2	Floor Space ㎡
BCL-50	50	6.0	1.6kg	8kw	3m*3m
BCL-100	100	9.0	1.6kg	8kw
BCL-200	200	12	1.6kg	8kw
BCL-300	300	15	1.6kg	8kw	5m*3m
BCL-400	400	12	1.6kg	8kw
BCL-500	500	18	1.6kg	8kw
BCL-1000	1000	24	1.6kg	8kw	6m*3m
BCL-2K	2000	35	1.6kg	8kw	10m*3m

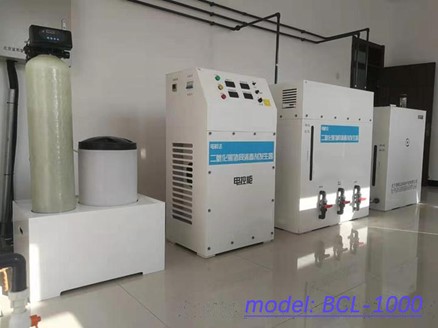

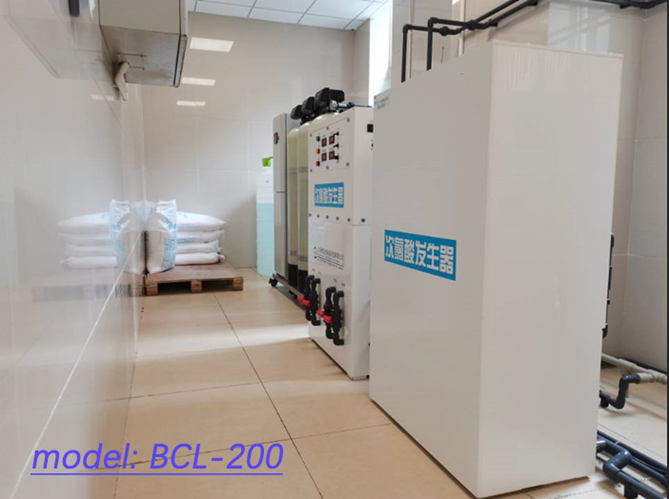

Client Project photos

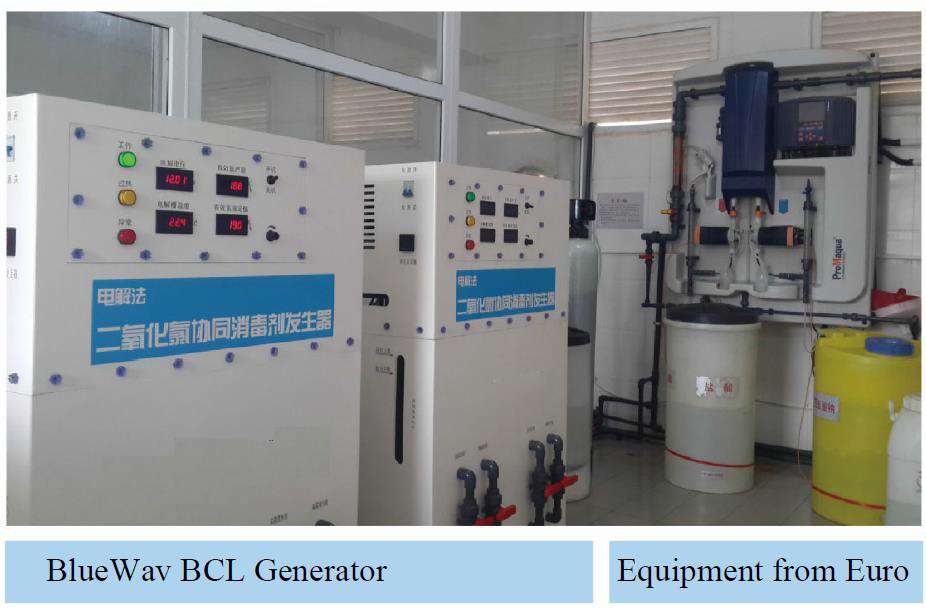

One water plant chooses our BCL generator to replace Prominent sodium hypochlorite machine on 2017 as photo below.
