Welded Wire Mesh
T/T
Galvanised welded mesh is made with plain steel wire welded together in square opening, then going through the hot dipped zinc coating process. Designed for construction, building reinforcement and fences, it enjoys the feature of corrosion resistance compared with plain black iron welded mesh. Galvanized welded mesh can be fabricated into constructional reinforcement panels, wire mesh partitions, shelves and cages.
Surface treatment:
hot-dipped galvanized, electro galvanized, PVC coated, painted, untreated.
Features:
strong welded points and bright luster. The mesh doesnt come loose even if cut in parts or being.
exerted force on parts. Compared with general iron wire, the products are better in respects of anti-corrosive and anti-rust.
Usage:
They are widely used in industry, agriculture, construction, transport and mining. Such as machine protection cover, ranch fender, garden fence, window protection fender, passage fender, fowl cage etc.

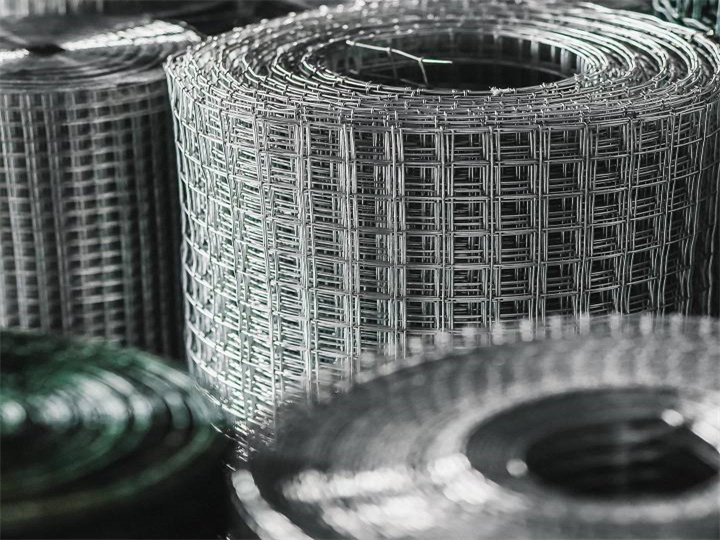

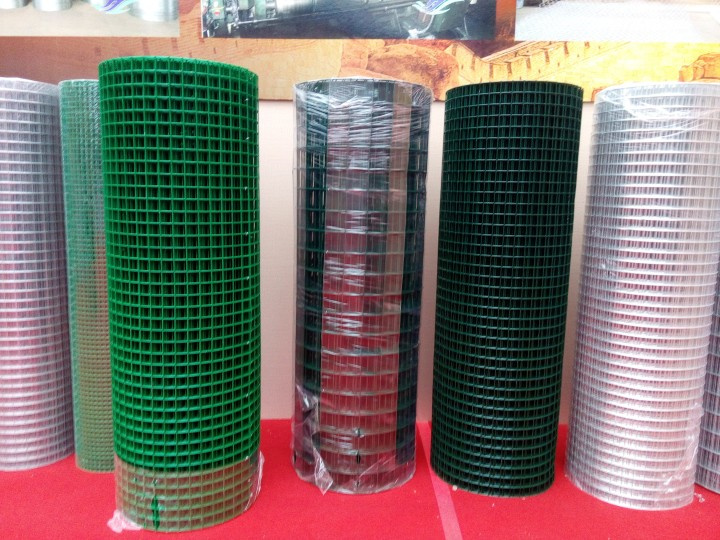

Product Image:
| Specification List of Welded Wire Mesh | ||
| Opening | Wire Diameter | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15 |
| 2” x 4" | 50.8mm x 101.6mm | 12,13,14,15 |
| 4” x 4" | 101.6mm x 101.6mm | 12,13,14,15 |
| 4” x 6" | 101.6mm x 152.4mm | 12,13,14,15 |
| 6” x 6" | 152.4mm x 152.4mm | 12,13,14,15 |
| 6” x 8" | 152.4mm x 203.2mm | 12,13,14, |
| Technical Note: | ||
| 1,Standard roll length: 30m; width: 0.5m to 2.4m | ||
| 2,Special sizes available at request | ||
| 3,Packing: in waterproof paper in rolls. Custom packing available at request. | ||
Delivery Detail:
according to the quantity.
Packaging Details:
plastic film, pallet or according to customer's requirement.
