Application

PVC panel wiring for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.

Characteristics

Voltage Rating Uo/U

H05V-K: 300/500V

H07V-K: 450/750V

Temperature Rating

Fixed: -30°C to +70°C

Flexed: -5°C to +70°C

Minimum Bending Radius

Fixed: 6 x overall diameter

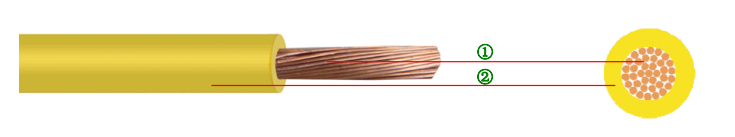

Construction

① Conductor: Flexible copper conductor, comform to IEC 60228 class 5

② Insulation: PVC (Polyvinyl Chloride)

Insulation Colour

Red Black Blue Orange Yellow White Green/Yellow Grey Brown Violet Pink

Standards

International: IEC 60227

China: GB/T 5023-2008

Other standards such as BS, DIN and ICEA upon request
