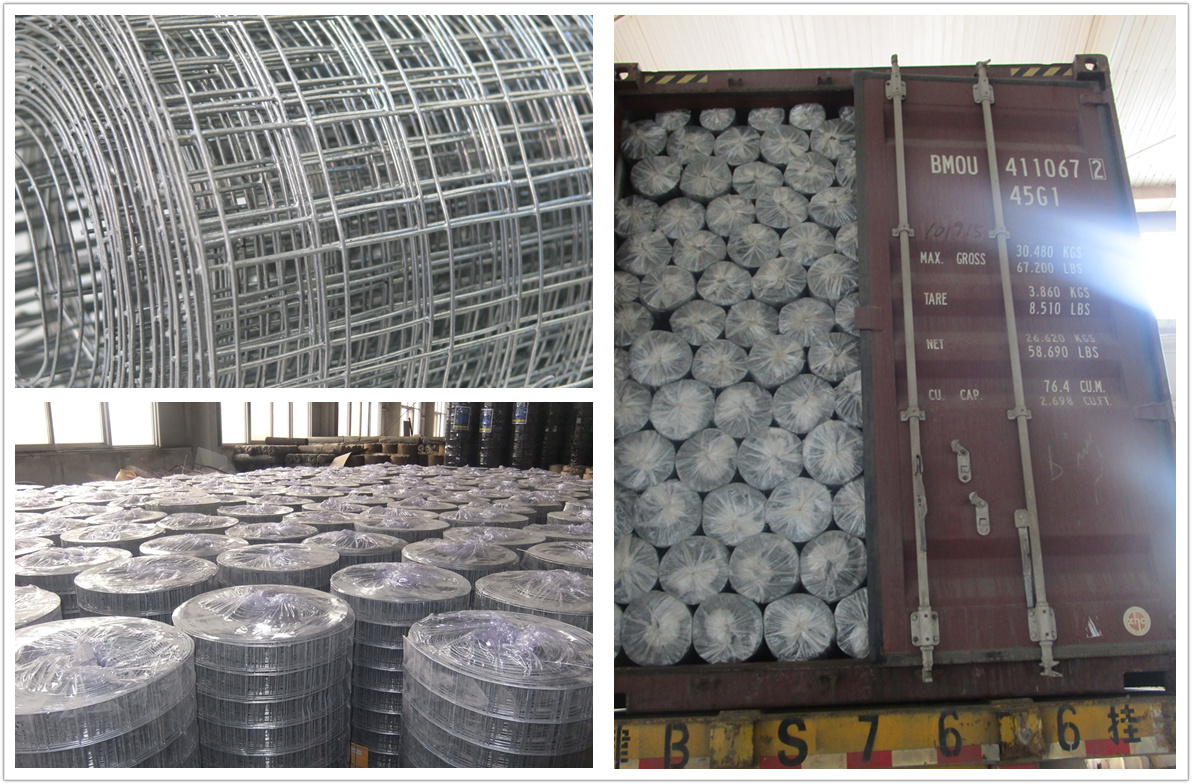

WELDED WIRE MESH, 1/4”hole, CONSTRUCTION MESH, ELECTRO GALVANIZED,ANTI-RUST,ANJIA FACTORY
1. Material
Welded wire mesh is welded with high-quality low-carbon steel wire, and then cold-plated (electro galvanized), hot-dipped galvanized, PVC coated and other surface passivation and plasticization treatment. Achieve smooth surface, uniform mesh, firm solder joints, good local machining performance, stability, good weather resistance and good corrosion resistance.
2. Surface treatment
- electro galvanized
- hot dipped galvanized
- PVC coated
3. Welded type
- Electro galvanized before welded wire mesh
- Electro galvanized after welded wire mesh
- Hot-dipped galvanized before welded wire mesh
- Hot-dipped galvanized after welded wire mesh
- Iron/galvanized wire+PVC coated
- Stainless steel 304, 316 wire
4. Specification
| Galvanized Welded Wire Mesh | ||||
| BWG | Mesh | WXL | Note: | |
| 15 | 1"x2" | 25.4mmx50.8mm | 3'x100' | 1.GAUGE: BWG14 TO BWG23 |
| 16 | 1"x1" | 25.4mmx25.4mm | 3'x100' | 2.MESH:1/4",3/8",1/2",5/8",3/4",1"TO 6" |
| 17 | 3/4"x3/4" | 19.05mmx19.05mm | 3'x100' | 3.WIDTH:2'TO 7' |
| 18 | 1/2"x1" | 12.7mmx25.4mm | 3'x100' | 4.LENGTH:10'TO 300' |
| 19 | 1/2"x1/2" | 12.7mmx12.7mm | 3'x100' | 5.PACKING:MOISTER-PROOF PAPER OR PVC FILM |
| 20 | 1/4"x1/4" | 6.35mmx6.35mm | 3'x100' | 6.All kind of size can be according to customers' requirement |
| 21 | 3/8"x3/8" | 9.35mmx9.35mm | 3'x100' | |

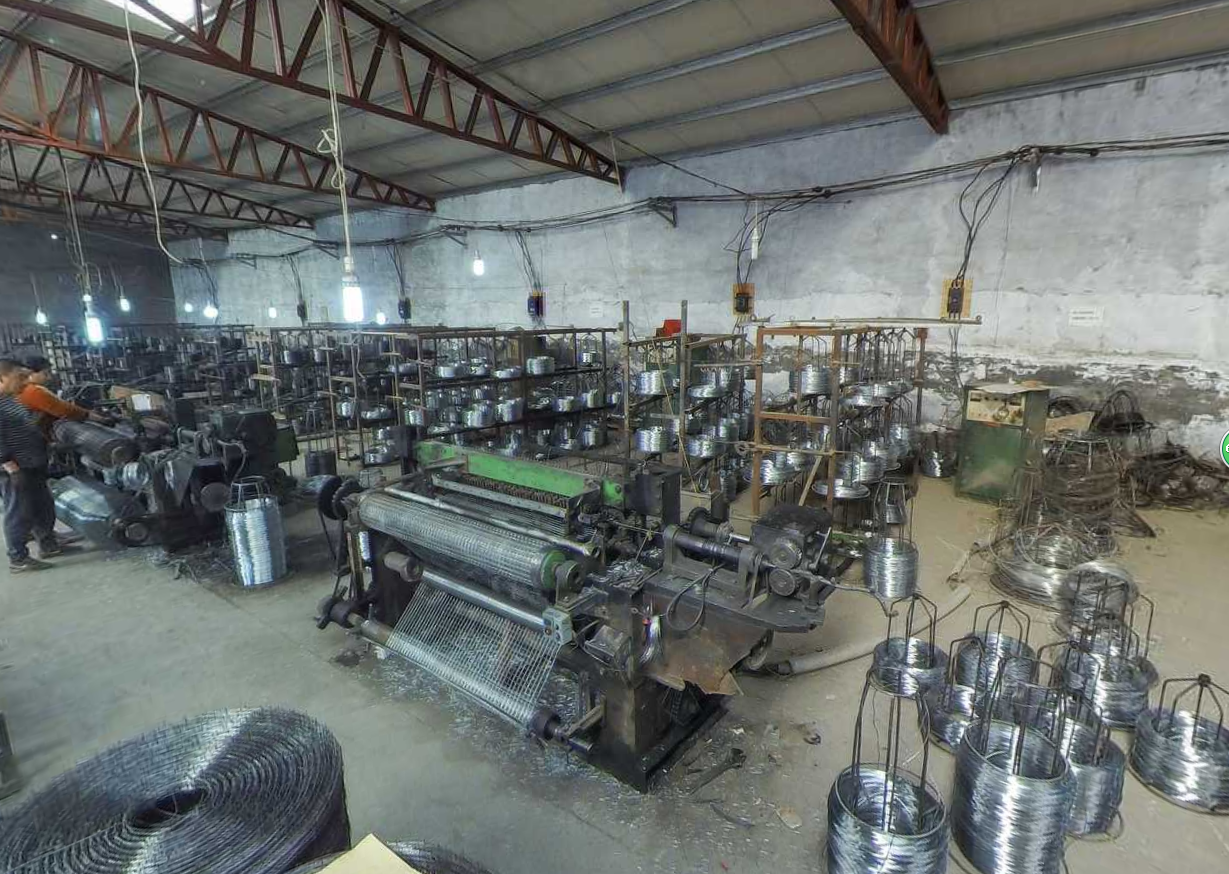

5. Process flow
Receiving coil rods, Drawing, Spooling, Mesh welding, Inspection, Surface treatment, Inspection of finished goods, Finished goods into warehouse, Packing, Inspection and Delivery.
6. Packing and Loading MOISTER-PROOF PAPER OR PVC FILM
7. Application
Welded wire mesh is widely used in industry, agriculture, construction, transportation, mining and other industries. Such as machine protection cover, animal fence, flower fence, window fence, passage fence, poultry cage, egg basket and home office food basket, paper basket and decoration. Mainly used for general building exterior walls, pouring concrete, high-rise residences, etc. It plays an important structural role in the thermal insulation system. During the construction, the hot-dip galvanized welded wire mesh polystyrene board is placed inside the external wall outer mold to be poured The outer insulation board and the wall survive once, and the insulation board and the wall are integrated into one after the mold is removed.
