Gabion box

Gabion Box are multiple twisted hexagonal woven galvanized or PVC coated steel wire mesh compartmented baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms. The compartment is filled with natural stone and the diaphragms assure minimum stone migration within the basket. Thus providing even distribution of the stone even in abnormal conditions, and adding strength to the container to help retain its rectangular shape during the filling operation.the height 0.15-0.5m ,we call it reno mattress.

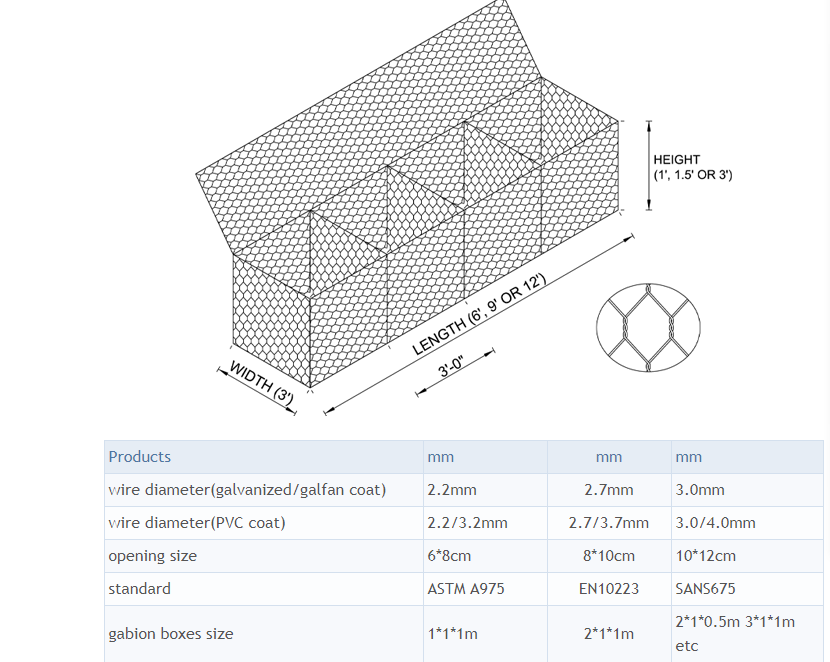

SPECIFICIATION :

1.material:electro galvanized wire ,hot dipped galvanized wire ,galfan wire ,pvc coating wire .In accordance with the order ,anti rust is more stronger

2.wire diameter: gabion has three diameter: mesh wire diameter,selvege wire diameter ,lacing wire diameter,mesh wire thickness:2.0-4.0mm,selvege wire diameter will be thickner more as 0.5-1.0mm,lacing wire generlly is 2.2mm

3.hole size :60x80mm,80x100mm,100x120mm,6x2x0.3m,etc

4.size :2x1x1m,3x1x1m,etc,it can be customsized

5.diaphragm:with the long distance ,every 1 meter should has a diaphragm.

6.tensile strength:350-550mpa

7.tolerance :as the EN10223 STANDARD requirement ,the tolerance for the gabion and reno mattress is :wire diameter :+/_0.1mm.hole size :+16%/-4%,size tolerance :+/-5%，

Applications:

• · Control and guide of water or flood

• · Flood bank or guiding bank

• · Prevention of rock breaking

• · Water and soil protection

• · Bridge protection

• · Strengthening structure of soil

• · Protection engineering of seaside area

• · Seaport engineering

• · Isolation walls

• · Protection of road

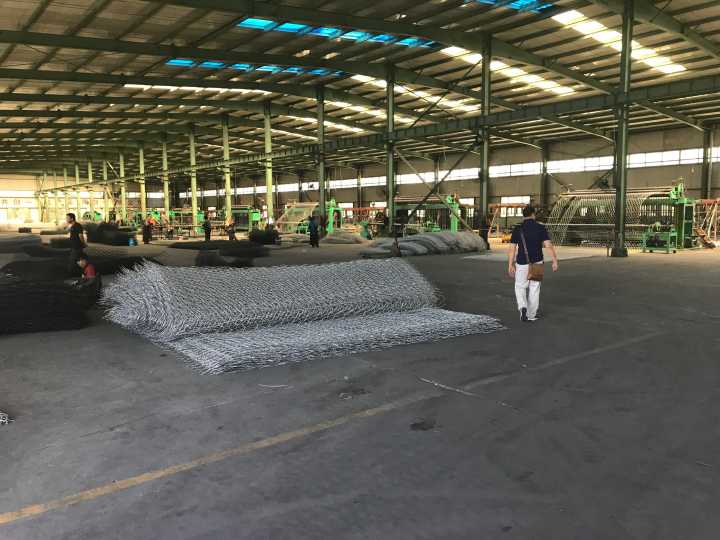

  PRODUCTION

  now we have 20 more gabion machines ,we have the quickest delivery time to satisfy customer's project requirement.

  the production process for the gabion is :weave netting -cutting into pieces-lock the selvege wire -binding into bundle

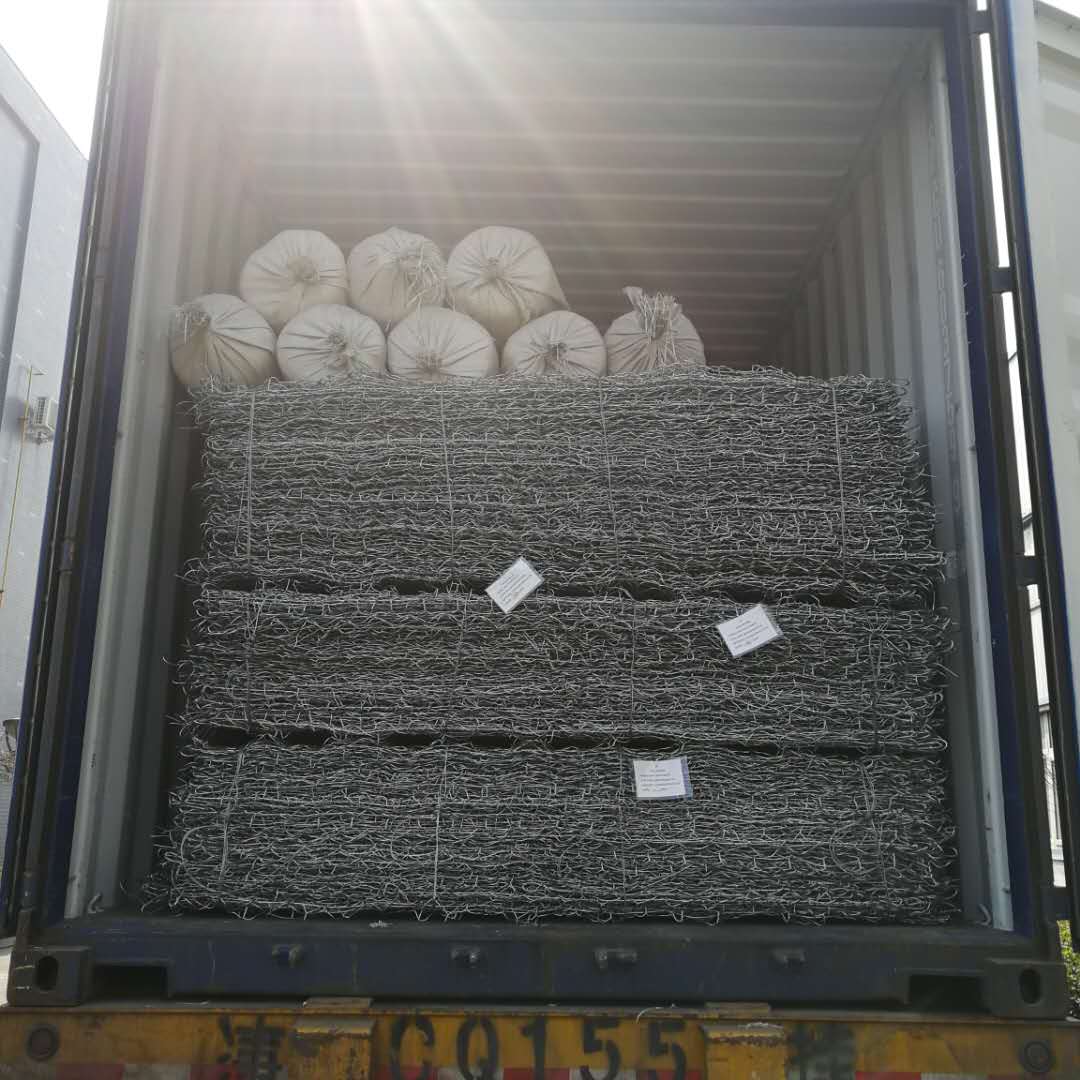

  LOADING CONTAINER
