Eco Mesh A142/A385/A503/A252/A785/A393/B1131 reinforcing steel mesh/reinforcement mesh/reinforced mesh

Eco friendly mesh is one of special for reinforced mesh,of which specification is same as standard mesh,except the overhang is 200mm instead of 100mm.Eco friendly mesh can be replaced standard mesh for most applications.Heyou wire mesh has full of eco mesh specification stocks.

We adopt B500A,B500B or B500C as the raw material to produce Eco friendly mesh.The mesh space is 200mm,overhang is 200mm,and wire diameter is 6mm,7mm,8mm,10mm,12mm

The fabric reference of eco friendly mesh’s A type and B type is normal specification,Heyou wire mesh factory has big stocks for suppling.But the C type of eco mesh need to be custom-made.

All of the products was made accordance with british standard BS4483:2005 or BS8666:2000.

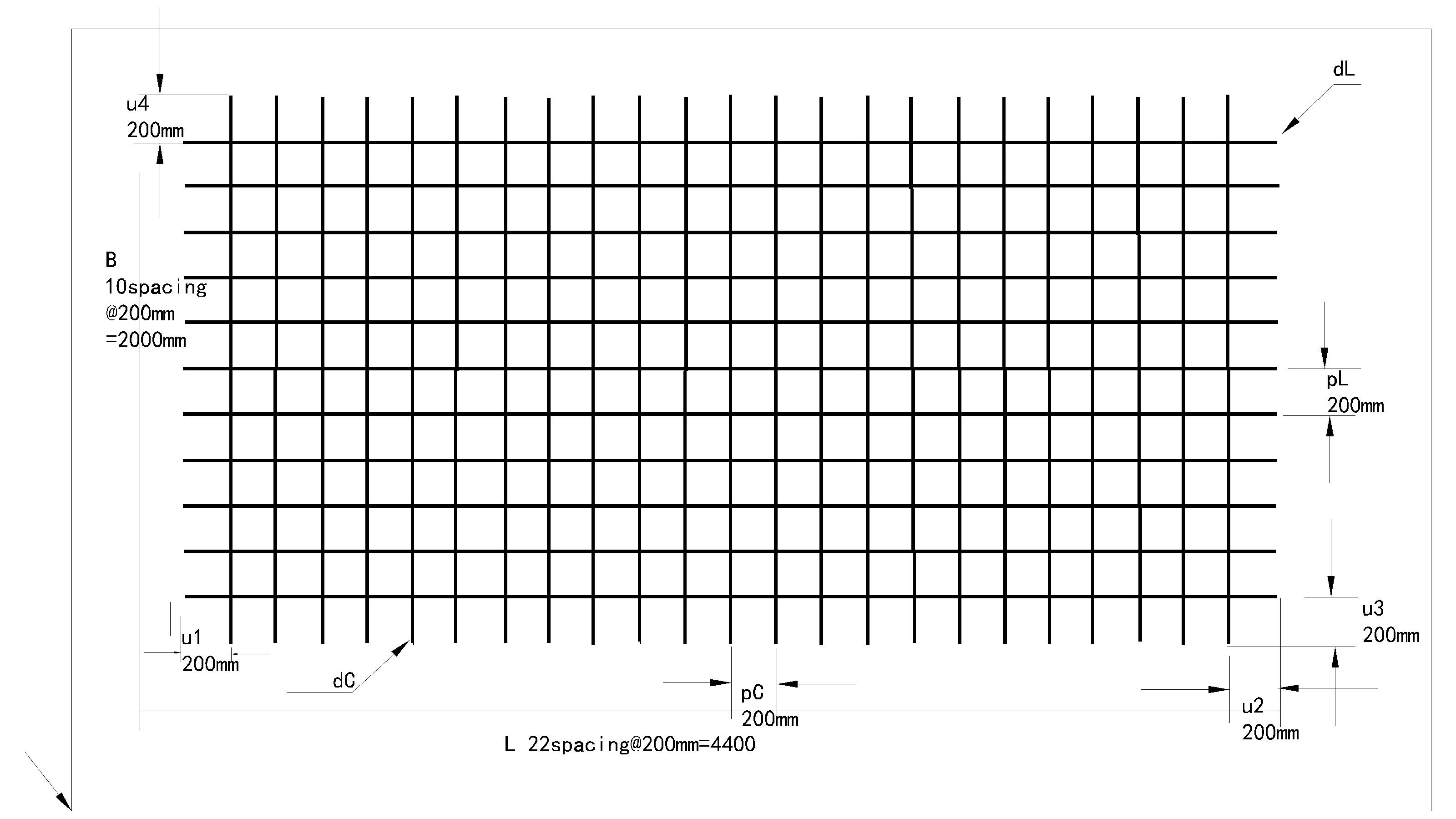

The skatch of Eco mesh as below:

NL= Number of longitudinal bars PL= pitch of longitudinal bars dL= diameter of longitudinal bars NC=Number of transverse bars PC=Pitch of transverse bars									L= length of longitudinal bar B=Length of transverse bar u1=Overhang of longitudinal bars u2=Overhang of longitudinal bars u3=Overhang of transverse bars
MESH TYPE	STEEL GRADE	? (mm)		DIMENSIONS (mm)		CENTERS (mm)		SHEET		BUNDLE		NL	NC	OVERHANGS (mm)
		dL	dC	L	B	Pl	Pc	kg / m2	kg/pc	pcs	kg			u1	u2	u3	u4
A142E	B500A/ B500B	6	6	4800	2400	200	200	2.081	23.99	50	1,200	11	23	200	200	200	200
A385E	B500A/ B500B	7	7	4800	2400	100	200	4.090	47.17	30	1,415	21	23	200	200	200	200
A503E	B500B	8	8	4800	2400	100	200	5.349	61.61	20	1,232	21	23	200	200	200	200
A252E	B500B	8	8	4800	2400	200	200	3.703	42.65	30	1,280	11	23	200	200	200	200
A785E	B500B	10	8	4800	2400	100	200	7.291	84.00	14	1,176	21	23	200	200	200	200
A393E	B500B	10	10	4800	2400	200	200	5.784	66.64	20	1,333	11	23	200	200	200	200
B1131E	B500B	12	8	4800	2400	100	200	9.663	111.36	10	1,114	21	23	200	200	200	200

What is BSI?

BSI full name is British Standards Institution.BSI is the independent national body responsible for preparing British Standards.It presents the UK view on standards in Europe and at the international level.It is incorporated by Royal Charter.
