Products Description

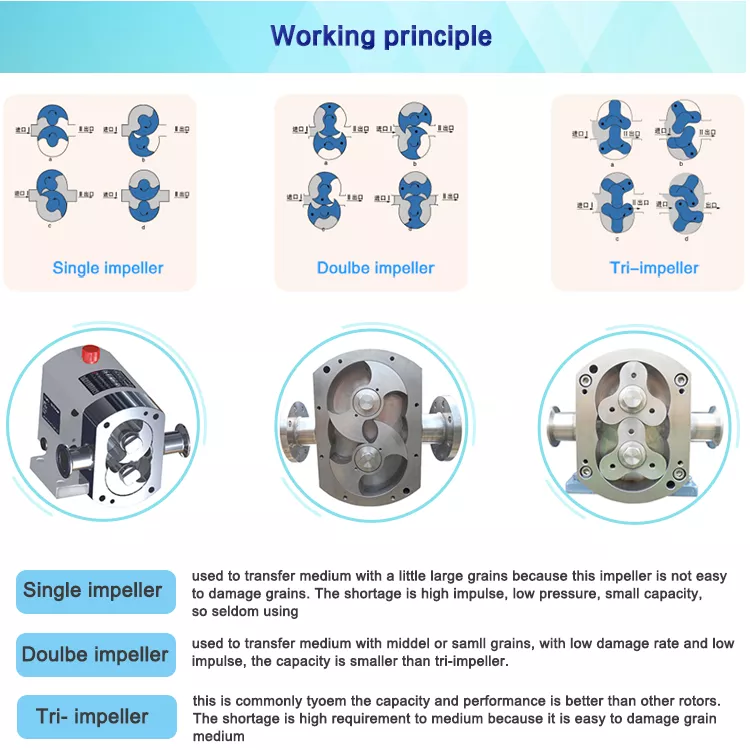

Rotor pump is also named rotary lobe pump, three-lobe pump, sole pump, etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears) revolve, it produces suction force at the inlet(vacuum), which intakes the material delivered. The 2 rotors divide the rotor housing into many smaller parts and resvoIve in the sequence of a→b→c→d. When it revolves to position a, only housing I is filed with medium; when it revolves to position b, housing B encloses part of the medium, when it goes to position C, housing A encloses medium, and finally it goes to position d, then housing A, B and ll are interlinked and the medium is transported to the outlet. As this process is repeated, medium(material)is transported continuously.
