ISG IRG Vertical Piping Centrifugal Pump Vertical Turbine Pipe Mounted Pump

ID:22091782668

Manufacturing & Processing Machinery Valves & Pumps & Compressors

FOB Price:US$ 500.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

Vertical Centrifugal PumpVertical Turbine pumpPiping Centrifugal PumpPipe Mounted Pump

Payment Method:

L/CT/TD/PWestern UnionMoney GramOthers

Product Category

Manufacturing & Processing Machinery > Valves & Pumps & Compressors

Trademark

yuanhan

Product Package

standard expprt packing

Specification

1.5-2400m3/h

Place of Origin

made in china

Port

TIANJIN, QINGDAO, SHANGHAI, GUANGZHOU

prodcut description

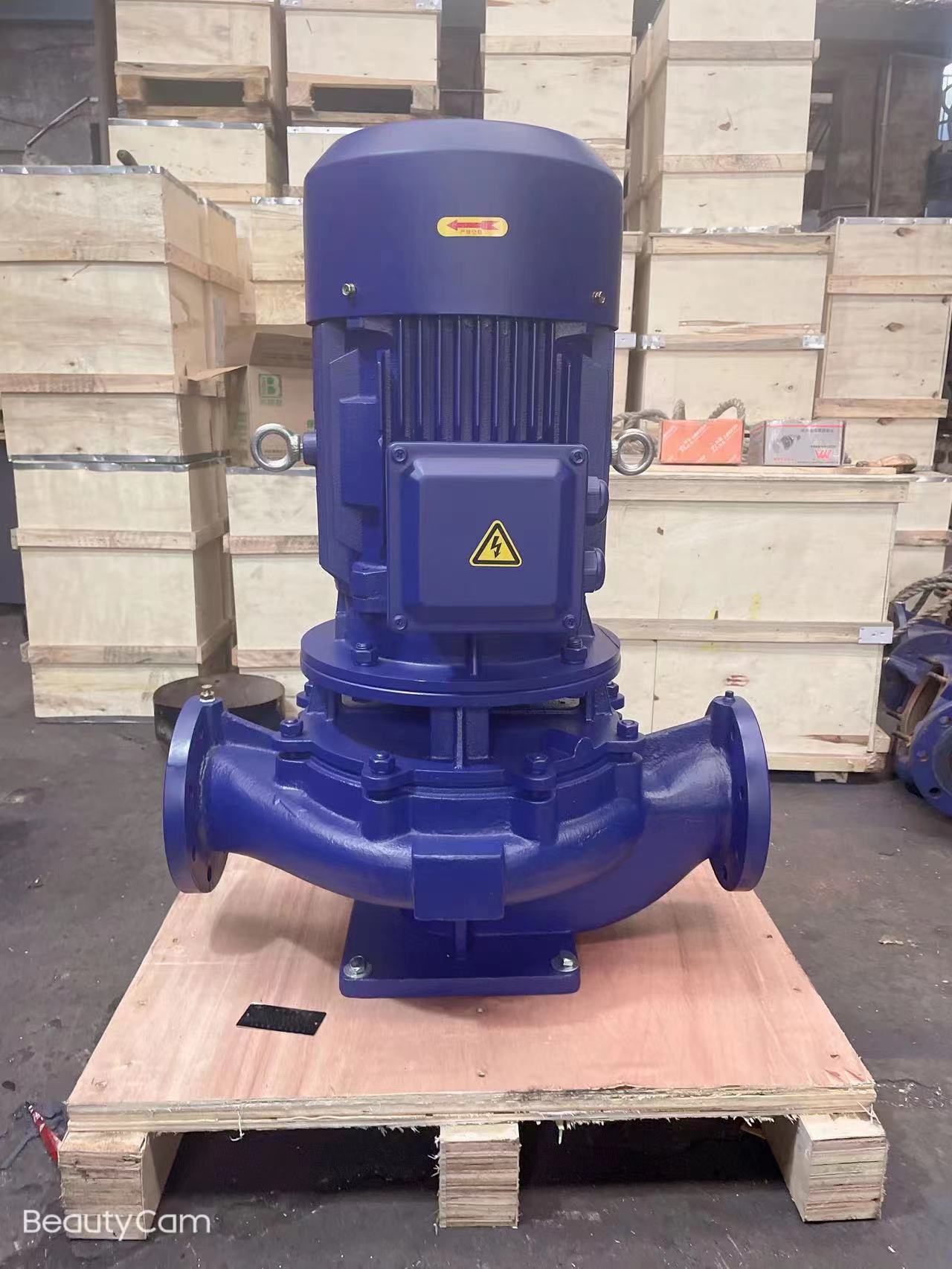

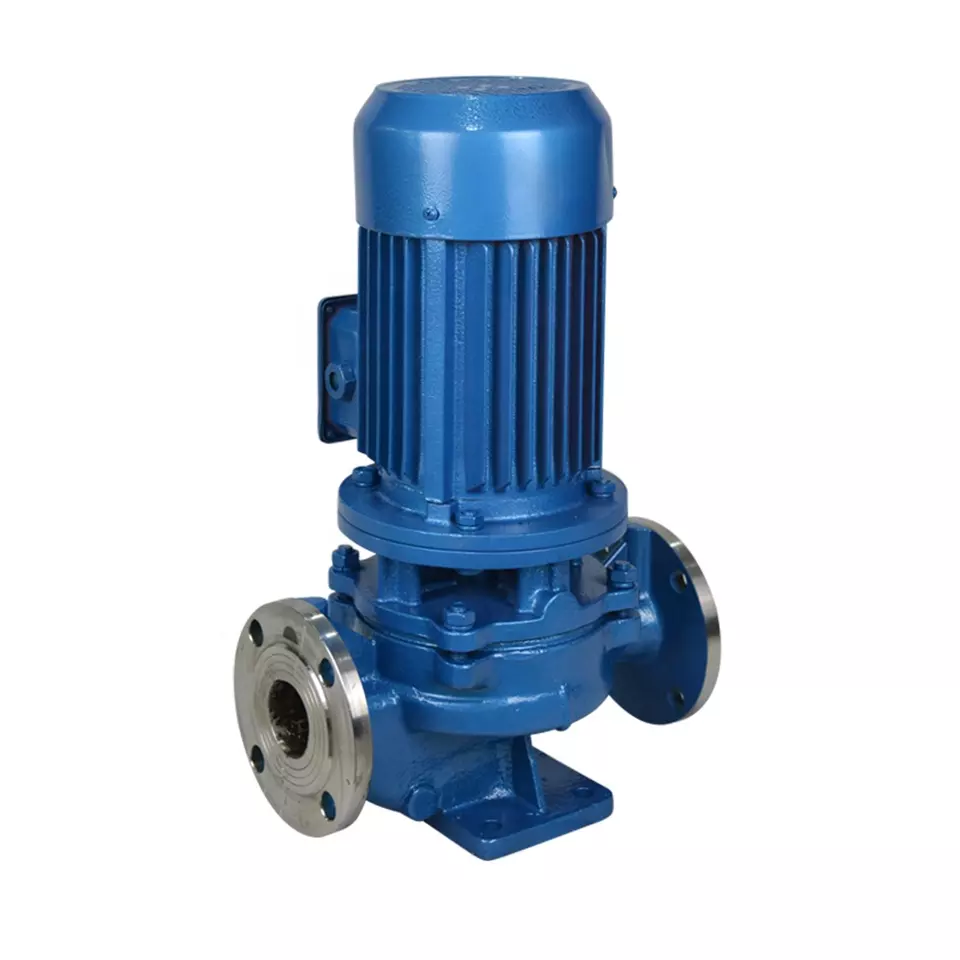

1. ISG / IRG Vertical Piping Centrifugal Pump/Vertical Turbine Centrifugal Pump/Pipe Mounted Pump is a high-effective energy-saving product designed by Yuanhan.

2. Stable running, low noise, high concentricity of components. Bearings of low noise are used for the motor, the impellers are of best dynamic and static balance, no vibration at running and the environment thus being improved.

3. No leakage. The shaft is mechanically sealed with carbide alloy wearable material, settling the serious leakage of the filling seal of a centrifugal pump and extending the duration and ensuring the operation place clean and tidy.

4. Widely used in industrial and cities’ water supply and drainage, high buildings’ booster water supply, garden's irrigation, fire-fighting booster, remote water supply, warming systems, circular booster of cold&hot water in bath rooms as well as in competitions of equipments.

5. The pump, according to the operation condition of the workshop, is vertical or horizontal, and also according to the requirements for the flow and stroke, mounted in parallel and/or in series to increase the needed flow and stroke.

6. The flow range is 1.1-2400m3/h and the stroke range is 8-160m and there are basic types, by-pass type, A B C cutting type etc. And per the different flow medium and temperature, IRG/IRGB/ISWR hot water pump, IHG/IHGB/ISWH series chemical pumps and YG/YGB/ISWB oil pumps.

Product details:

Working Principle:	Centrifugal
Main applications:	Water (oil, chemical, contact us)
Driver:	Electric motor
Power Specs:	220V/240V380/415V 3phase; 50hz/60hz
Max.permissible fluid temperature:	100℃ (212°F)
Type of connection:	Flange
Casing:	Cast iron, Stainless steel
Impeller:	Cast iron, Stainless steel, Bronze
Shaft seal type:	Mechanical seal
Maximum drive rating:	250KW(340HP)
Maximum caliber:	500mm(20inch)
Maximum discharge-side pressure:	1.6MPa(16bar)
Maximum head:	160m(524.8ft)
Flow rate range:	1.1-2400m3/h(4.8-10560US.GPM)
Pump type:	Water, Hot water type, oil type, chemical type

Performance data:

MODEL	CAPACITY	HEAD	EFFECIENCY	POWER
MODEL	(m 3 /h)	(m)	(%)	(kw)
15-80	1.5	8	34	0.18
20-110	2.5	15	34	0.37
20-160	2.5	32	25	0.75
25-110	4	15	42	0.55
25-125	4	20	36	0.75
25-125A	3.6	16	35	0.55
25-160	4	32	32	1.5
25-160A	3.7	28	31	1.1
32-125	5	20	44	0.75
32-125A	4.5	16	43	0.5
40-100	6.3	12.5	54	0.55
40-100A	5.6	10	52	0.37
40-125	6.3	20	46	1.1
40-125A	5.6	16	45	0.75
40-160	6.3	32	40	2.2
40-160A	5.9	28	39	1.5
40-160B	5.5	24	38	1.1
40-200	6.3	50	33	4
40-200A	5.9	44	31	3
40-200B	5.3	36	29	2.2
40-250	6.3	80	28	7.5
40-250A	5.9	70	28	5.5
40-250B	5.5	60	27	4
40-100(I)	12.5	12.5	62	1.1
40-100(I)A	11	10	60	0.75
40-125(I)	12.5	20	58	1.5
40-125(I)A	11	16	57	1.1
40-160(I)	12.5	32	52	3
40-160(I)A	11.7	28	51	2.2
40-160(I)B	10.4	22	50	1.5
40-200(I)	12.5	50	46	5.5
40-200(I)A	11.7	44	45	4
40-200(I)B	10.6	36	44	3
40-250(I)	12.5	80	38	11
40-250(I)A	11.6	70	38	7.5
40-250(I)B	10.8	60	37	7.5
40-250(I)C	10	52	36	5.5
50-100	12.5	12.5	62	1.1
50-100A	11	10	60	0.75
50-125	12.5	20	58	1.5
50-125A	11	16	57	1.1
50-160	12.5	32	52	3
50-160A	11.7	28	51	2.2
50-160B	10.4	22	50	1.5
50-200	12.5	50	46	5.5
50-200A	11.7	44	45	4
50-200B	10.6	36	44	3
50-250	12.5	80	38	11
50-250A	11.6	70	38	7.5
