Product Category
Manufacturing & Processing Machinery > Valves & Pumps & Compressors
Trademark
yuanhan
I am a Buyer
OR
By clicking Sign in or logging in with Google or LinkedIn, I agree to the User Agreement and the Privacy Policy .
Business Type: Manufacturer
Main Products:Concrete PumpsOil PumpsIndustria Screw PumpMagnetic drive pumpgear pumpBarrel pumpChemical pumpHot oil pumpFood grade pump
ID:22091882745
Category: Manufacturing & Processing Machinery Valves & Pumps & Compressors
MOQ:1.00 Piece(s)
cast iron oil pumplow noisy gear pumpstainless steel gear pumpbooster gear pumpCircular arc gear pumplubricating oil gear pumpHydraulic oil pump
L/CT/TD/PWestern UnionMoney GramOthers

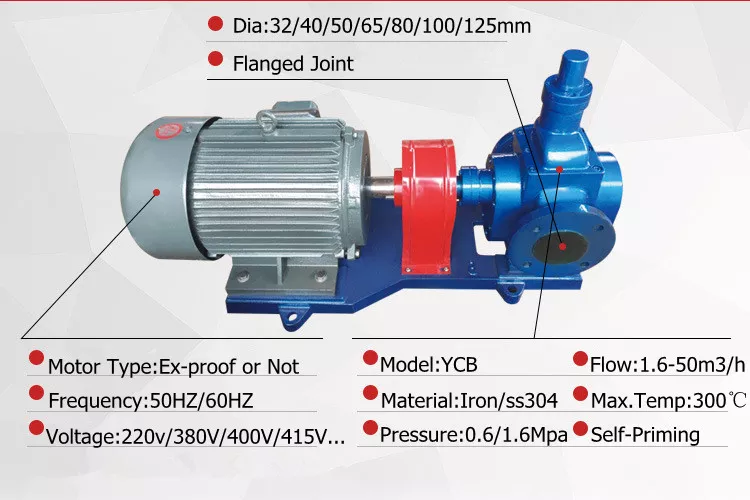

YCB arc gear pump is suitable for conveying solid particles and fibers without corrosion. The temperature is not higher than 200 °C. (If you need to transport 200-300 °C high temperature medium, you need to change the process.) The viscosity is 5×10-6~ 1.5×10-3m2/s (5-1500cSt) lubricating oil or other liquids similar in nature to lubricating oil (if the high viscosity medium is to be transported, the process needs to be changed) and used in the hydraulic transmission system.
| Model | Flow (m3/h) | Presure (Mpa) | Rev (r/min) | Npshr (m) | Frequency (hz) |
| YCB0.6-0.6 | 0.6 1.0 0.7 1.2 | 0.6 | 910 1390 1130 1710 | 5.5 | 50 50 60 60 |
| YCB0.6-1.6 | 0.6 1.0 0.7 1.2 | 1.6 | 910 1400 1130 1710 | 7.0 | 50 50 60 60 |
| YCB1.6-0.6 | 1.6 2.5 1.9 3.0 | 0.6 | 910 1400 1130 1710 | 5.5 | 50 50 60 60 |
| YCB1.6-1.6 | 1.6 2.5 1.9 3.0 | 1.6 | 940 1440 1150 1750 | 7.0 | 50 50 60 60 |
| YCB3.3-0.6 | 3.3 5.0 4.0 6.0 | 0.6 | 940 1420 1150 1730 | 5.0 | 50 50 60 60 |
| YCB3.3-1.6 | 3.3 5.0 4.0 6.0 | 1.6 | 960 1440 1170 1750 | 7.0 | 50 50 60 60 |
| YCB4-0.6 | 4.0 6.0 4.8 7.2 | 0.6 | 940 1420 1150 1730
| 5.0 | 50 50 60 60 |
| YCB4-1.6 | 4.0 6.0 4.8 7.2 | 1.6 | 960 1440 1170 1750 | 7.0 | 50 50 60 60 |
| YCB8-0.6 | 8.0 12.0 9.6 14.4 | 0.6 | 960 1440 1170 1750 | 5.0 | 50 50 60 60 |
| YCB8-1.6 | 8.0 12.0 9.6 14.4 | 1.6 | 970 1460 1170 1760 | 7.0 | 50 50 60 60 |
| YCB10-0.6 | 10.0 15.0 12.0 18.0 | 0.6 | 960 1440 1170 1750 | 5.0 | 50 50 60 60 |
| YCB10-1.6 | 10.0 15.0 12.0 18.0 | 1.6 | 970 1470 1170 1770 | 7.0 | 50 50 60 60 |
......... |
