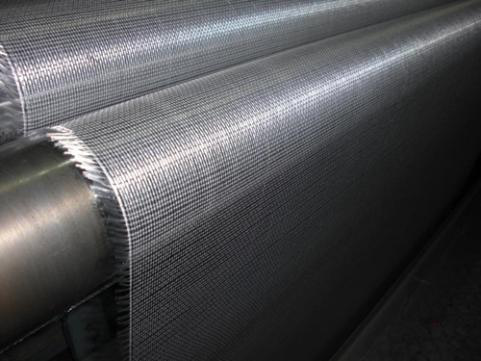

Fiberglass Woven Roving
E-Glass Woven Rovings are bidirectional fabric made by interweaving direct rovings.
F-E-Glass Woven Rovings are compatible with many resin systems, such as unsaturated polyester, vinyl ester, epoxy and phenolic resins.
E-Glass Woven Roving is a high-performance reinforcement widely used in hand lay up and robot processes for the production of boats, vessels, plane and automotive parts, furniture and sports facilities.
Product Features：
1. Warp and weft rovings aligned in a parallel and flat
manner, resulting in uniform tension.
2. Densely aligned fibers, resulting in high dimensional
stability and making handling easy.
3. Good mold ability, fast and complete wet in resins,
resulting in high productivity.
4.Good transparency and high strength of composite products.
Product Specifications：
Property | Area Weight | Moisture Content | Size Content | Width |
（%） | （%） | （%） | （mm） | |
Test Method | IS03374 | ISO3344 | ISO1887 | |
EWR200 | ±7.5 | ≤0.15 | 0.4-0.8 | 20-3000 |
EWR260 | ||||
EWR300 | ||||
EWR360 | ||||
EWR400 | ||||
EWR500 | ||||
EWR600 | ||||
EWR800 |
Product List:
Items | Warp Tex | Weft Tex | Warp Density Ends/cm | Weft Density Ends/cm | Areal Weight g/m2 | Combustible Content(%) |
WRE100 | 300 | 300 | 23 | 23 | 95-105 | 0.4-0.8 |
WRE260 | 600 | 600 | 22 | 22 | 251-277 | 0.4-0.8 |
WRE300 | 600 | 600 | 32 | 18 | 296-328 | 0.4-0.8 |
WRE360 | 600 | 900 | 32 | 18 | 336-372 | 0.4-0.8 |
WRE400 | 600 | 600 | 32 | 38 | 400-440 | 0.4-0.8 |
WRE500 | 1200 | 1200 | 22 | 20 | 475-525 | 0.4-0.8 |
WRE600 | 2200 | 1200 | 20 | 16 | 600-664 | 0.4-0.8 |
WRE800 | 1200*2 | 1200*2 | 20 | 15 | 800-880 | 0.4-0.8 |
● Special specification can be produce according to customer requirements.

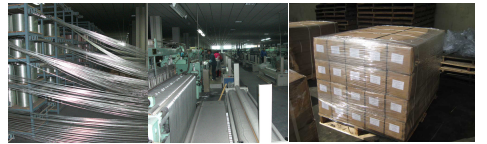

Packaging：
Each woven roving is wound onto a paper tube which has an inside diameter of 76mm and the mat roll has a diameter of 220mm. The woven roving roll is wrapped up with plastic film，and then packed in a cardboard box or wrapped up with kraft paper. The rolls can be horizontally placed. For transportation, the rolls can be loaded into a cantainer directly or on pallets.
Storage：
Unless otherwise specified,It should be stored in a dry, cool and rain-proof area. It is recommended that the room temperature and humidity should be always maintained at 15℃～35℃ and 35%～65% respectively.
Trade Terms
MOQ: 20000kg/20’FCL
Delivery: 20 days after deposit receipt
Payment: T/T
Packing:40kgs/roll, 1000kgs/pallet.
