ID:22091982941

Construction & Decoration Building Decoration Products

FOB Price:US$ 35.990 / Set(s)

MOQ:50.00 Set(s)

Product Keywords:

palisade fenceeuro fencechain link fencewelded wire fencefenceairport fenceresidence community fencefiled fencewire mesh fenceFencing,Trellis & Gates

Payment Method:

L/CT/T

Product Category

Construction & Decoration > Building Decoration Products

Trademark

Product Package

pallet

Specification

Place of Origin

China

Port

Tianjin


products description.jpg

Palisade

1.Instruction

Palisade Fence is widely used in the industry. As a commercial fence, using hot formed and cold rolled steel belts to form a secure panel. There are also three types of tops, including "W" profile, "D" profile and angle iron.


2.Palisade Fencing Popular Specification

Part Name		Specification	Component Quantity
"H" Post		100 x 55 x 5mm	1pc
Rail Section		50 x 50 x 5mm	2pcs
Pale Section	"D" Section	65 x 3.0mm	17pcs
Pale Section	"W" Section	75 x 2.0mm	17pcs
Fish Plate		115 x 30 x 6mm or 140 x 39 x 8mm	2pcs
Saddle head M8 Bolts		M8 x 40mm	34sets
Cup square M12 Bolts		M12 x 30mm	4sets

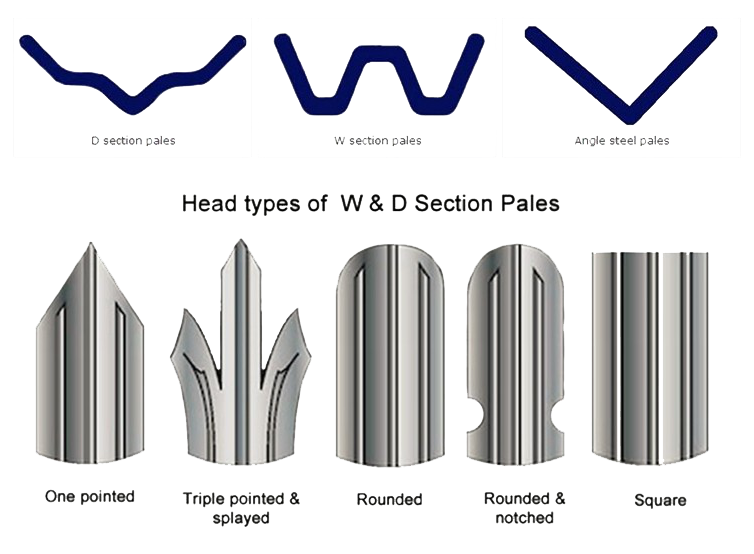

3.Palisade Fencing Pale Types

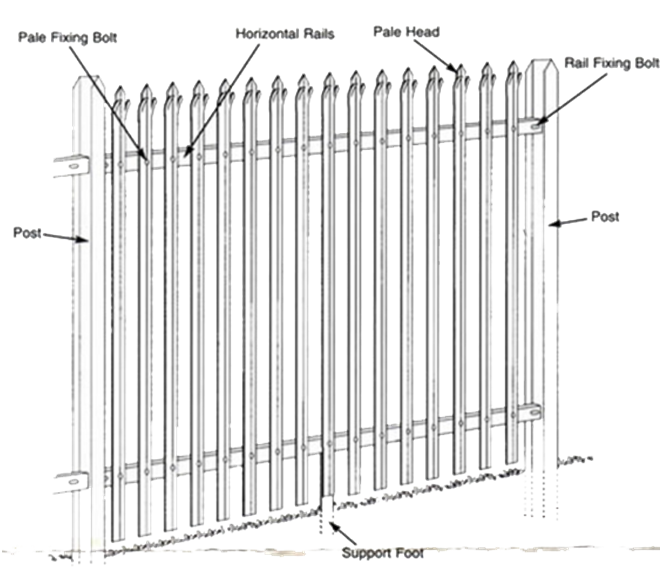

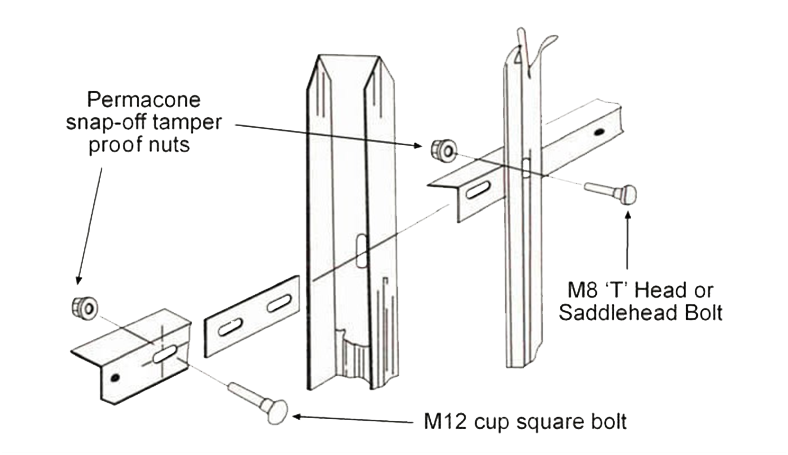

4.Palisade Fencing Installation Method

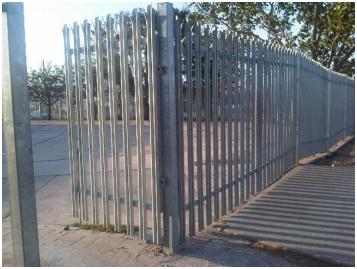

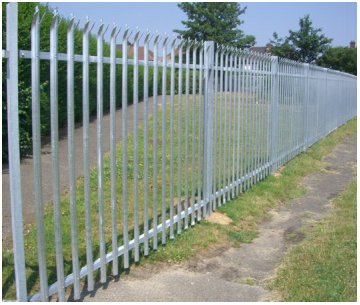

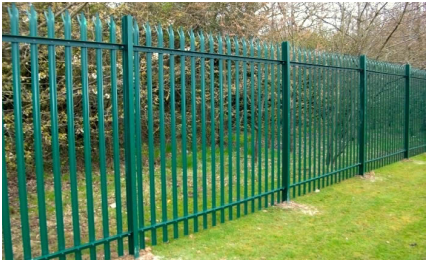

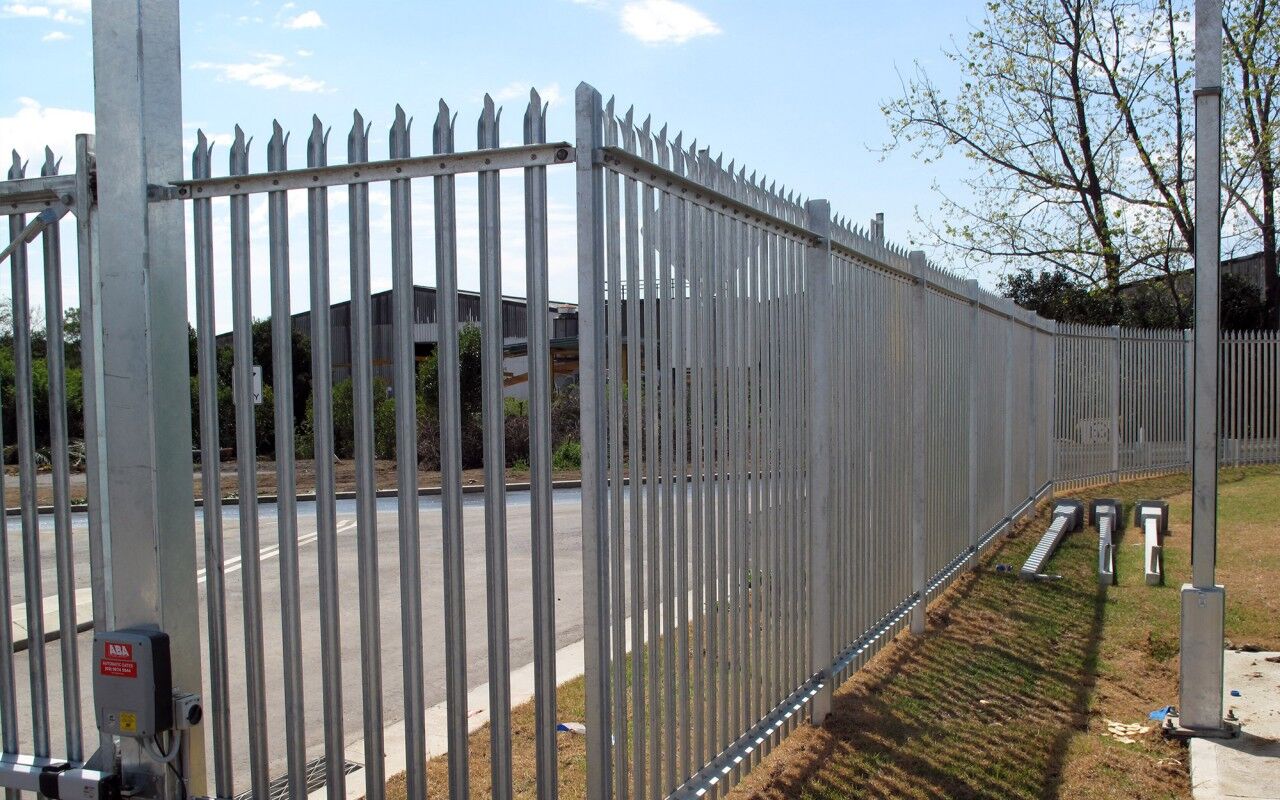

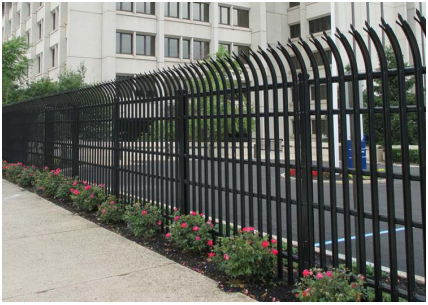

5.Palisade Fencing After Installed

6.Palisade Fence Packaging & Loading

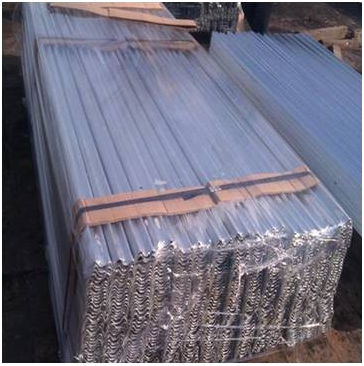

Palisade Fencing packaging way:
(A) Wrapped with plastic film.
(B) Covered with carton board.
(C) Tie with steel belt.
(D) Covered with Your logo.
(E) Loaded on steel pallets.
