Basalt Fiber FabricBasalt fiber Basalt fiber cloth
L/CT/TPaypal
Products Description

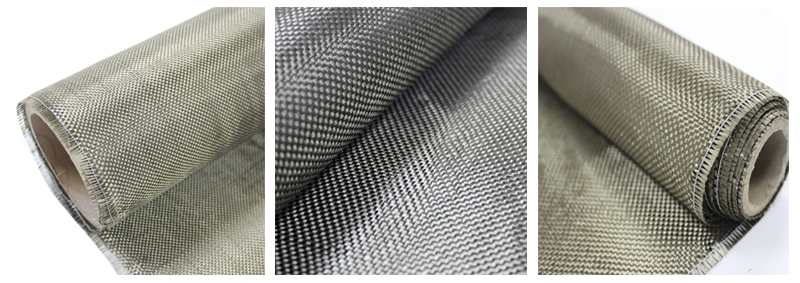

China Beihai basalt fiber fabric is weaved by basalt fiber yarn in plain,twill,satin structure. It is a higher tensile strength materials compare to fiberglass,although a bit weaver than carbon fiber,it’s still a good alternative because of its low price and eco-friendliness,besides basalt fiber has its own advantages so that it can be used in heat protection,friction, filament winding, marine, sports and construction reinforcements.
Specification
Item | Yarn, tex | Yarn count, ends/cm | Thickness, mm | Weave | Area weight, g/m2 | ||
Warp | Weft | Warp | Weft | ||||
BF100 | 34 | 34 | 15 | 14 | 0.10 | Plain | 100 |
BF200 | 100 | 100 | 10 | 10 | 0.20 | Plain | 200 |
BF300 | 264 | 264 | 6 | 6 | 0.30 | Plain | 300 |
BF300 | 300 | 300 | 5 | 5 | 0.30 | Plain | 300 |
BF380 | 264 | 264 | 7 | 7 | 0.38 | Plain | 380 |
BF430 | 300 | 300 | 7 | 7 | 0.42 | Plain | 420 |
Product Feature
High strength and high modulus fiber
Excellent shock resistance – good for ballistic applications
Low cost alternative and can replace carbon fiber in some applications including filament winding
High temperature resistance and good light resistance
Good fatigue and corrosion resistance properties
Easy to handle and process
Environment friendly.
Can be recycled
Exhibit no health and safety risks
Compatible with many resins – unsaturated polyester, vinylester, epoxy, phenolic, etc.
Better chemical resistance than e-glass
Application
Fiber-reinforced composite materials, friction materials
Shipbuilding materials,aerospace, insulation materials
Automotive industry,high temperature filtration fabrics, etc
