Product Description
TE series is TIMING’s high-ply new style cutting machine.
It use integrated frame design, XY axis precision pinion and rack drive, The head dynamic balancing device is more stable, Built-in and external double muffler. The accuracy of intelligent tool correction is guaranteed.
Product Characteristics
1. Sand belt sharpener
2. 6000rpm high frequency oscillation box
3. Standard feeding structure of wadding materials
4. Intelligent cutting system
5. High efficiency and less lead time
Tech Data
Max Cutting Height |
6cm / 9cm (after vac-sorb) |
Cutting Window |
length (no limitation) |
width (no wider than the fabric width) | |
Working Width (Y) | 1700mm /2000mm/2200mm |
Normal Working Length (X) | 2500mm/3300mm optional |
Electricity |
Three phase 380V, 50~60Hz |
Power Consumption |
18KW max |
CAD&CAM Connect way |
Ethernet communication / USB Flash memory |
Max speed of blade working | 6000rpm/min |
Compressed Air | 0.55Mpa 160L/min |
Cutting Speed |
max.60000mm/min |
Acceleration | 0.8~1g (N/ Kg) |
Noise Level | < 75 dbA |

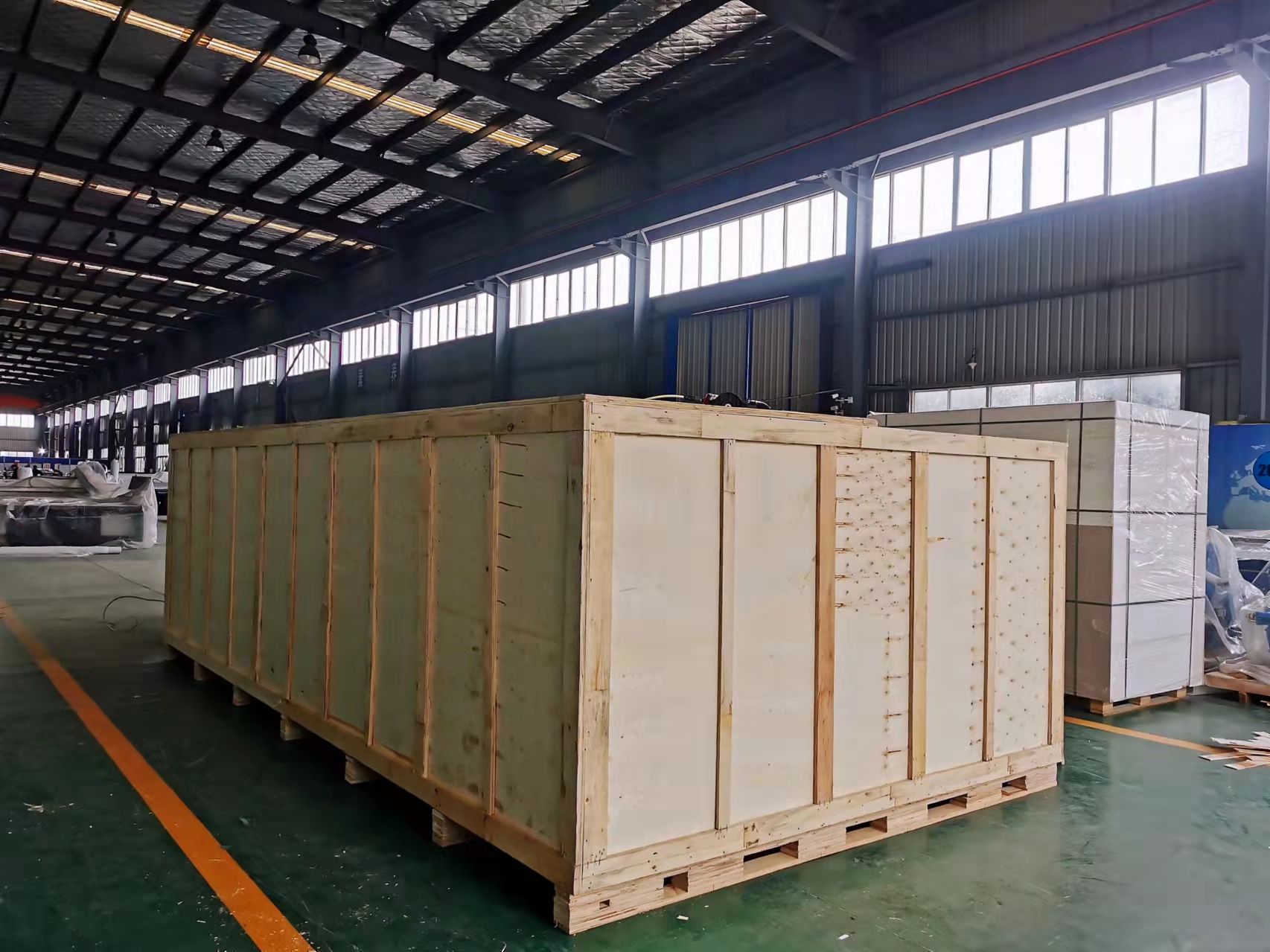

Package Details
