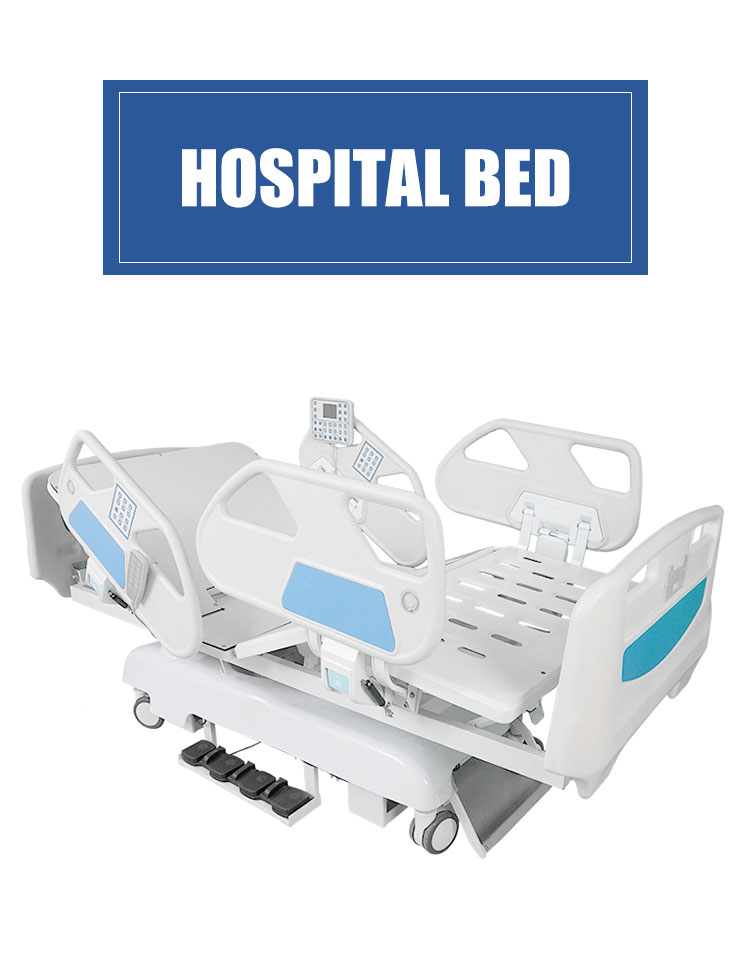

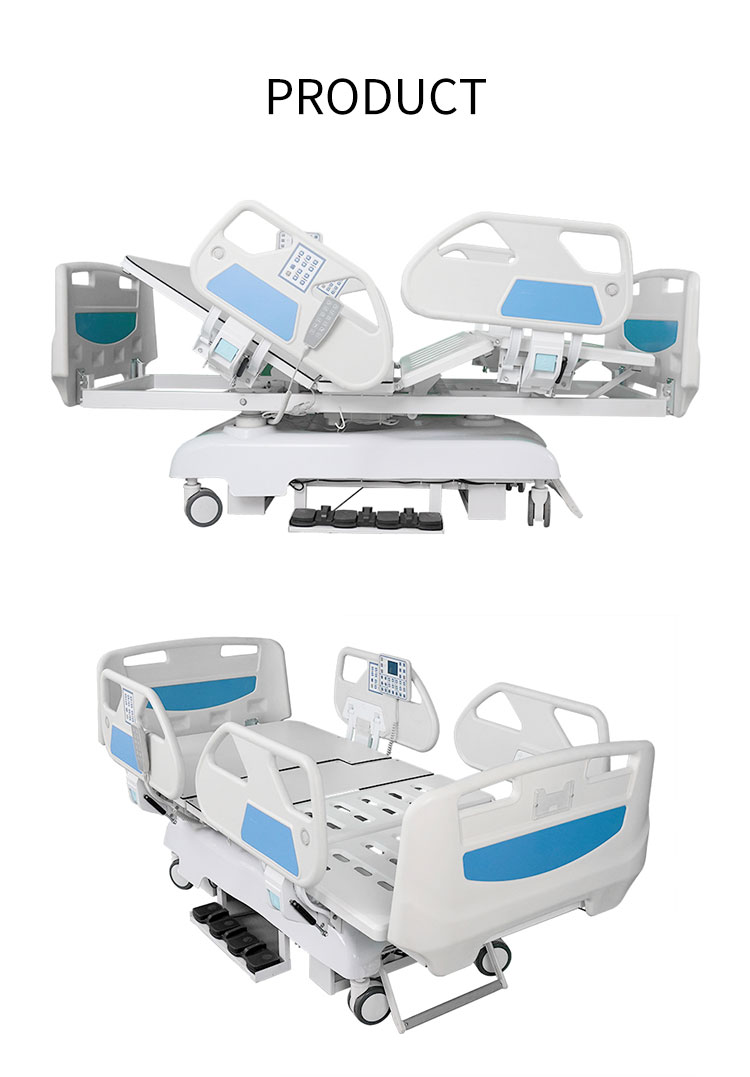

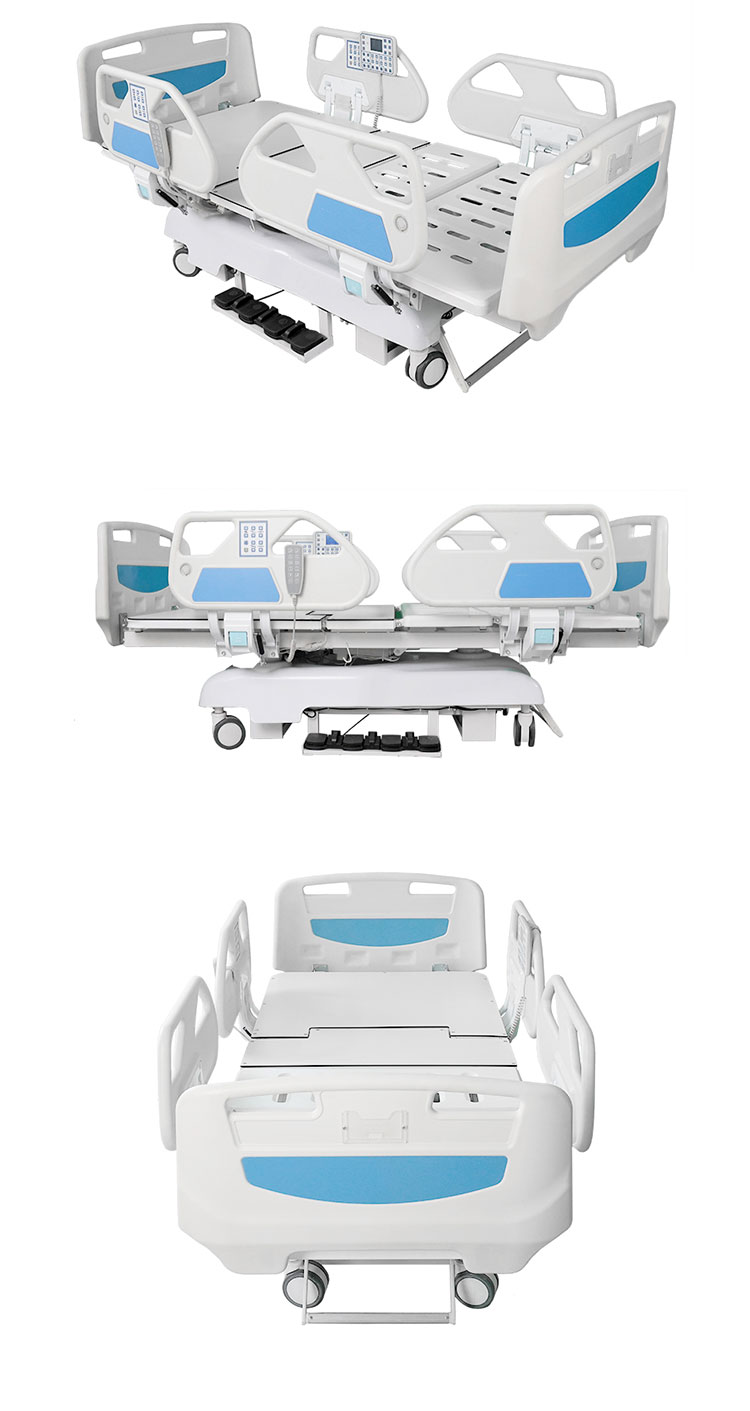

hot selling ICU ward room patient nursing beds multifunction hospital electric bed WJ-DDC-Ⅲ

1. back elevation/decline

2. leg elevation/decline

3. overall elevation/decline

4. overall forward

5. overall backward

6. overall left

7. overall right

8. weighing function

9. one-key CPR

2. 4 ABS telescopic guardrails, Bed head inside and outside with control button

3. 1 sets of removable ABS bed head and bed tailboard

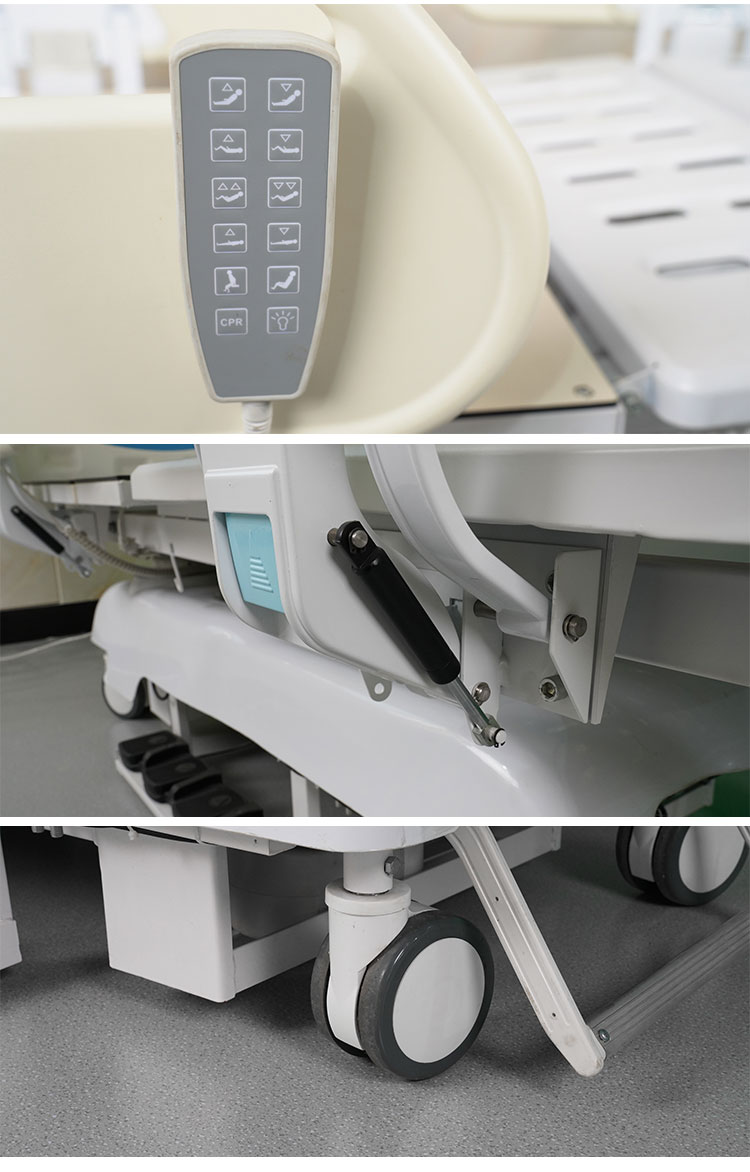

4. 3 sets of motor, 2 sets of linear push rods, 2 sets of nurse pedal, 1 nurse console, 1
manual controller, with spare power supply

5. 4 central control mute wheel, Aluminum alloy brake pedal

6. 4 transfusion frame jack
7. 4 Drainage hook

2.8cm three-fold mattress

3.telescopic infusion rod

4. ABS telescopic table plate

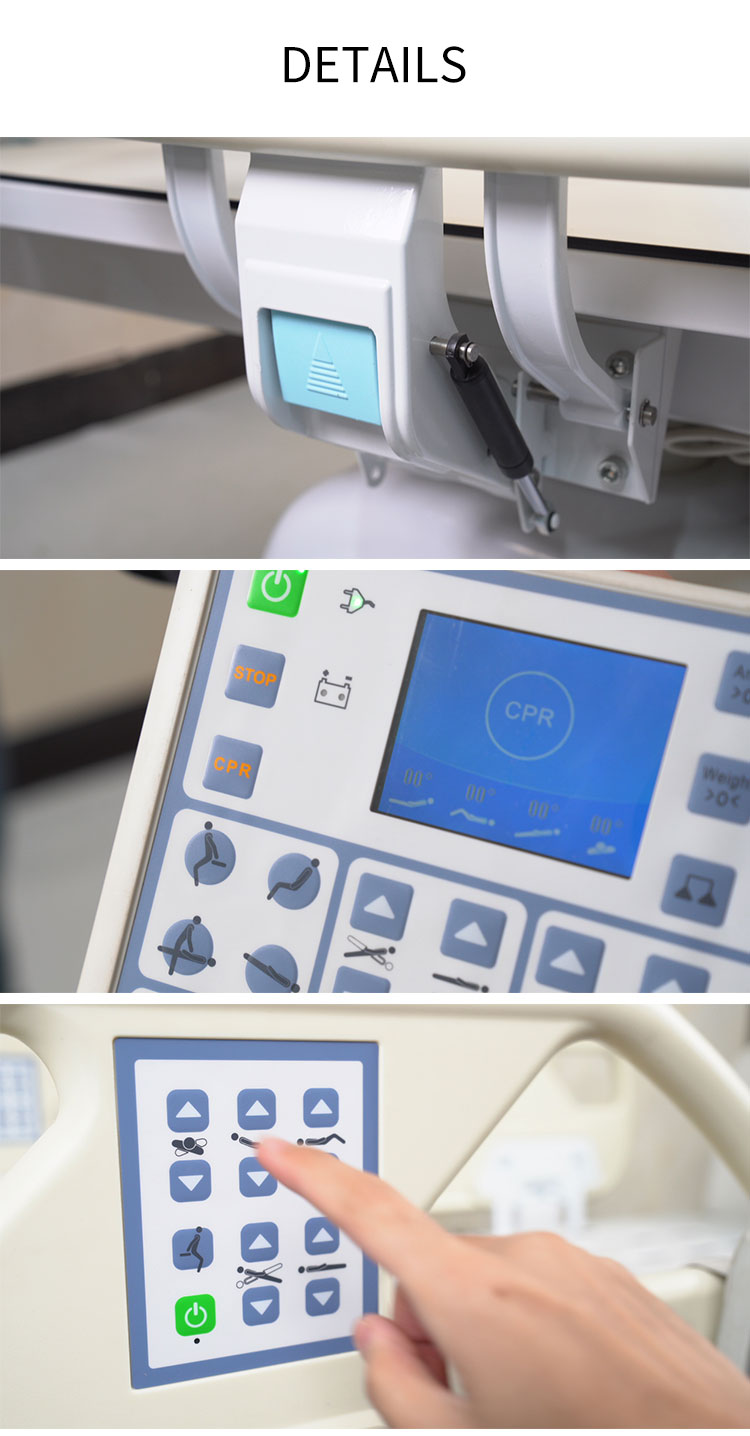

2. Main functions: The bed body can be raised and lowered as a whole by 650 (± 5%) ~ 950 (± 5%) mm (distance from ground to bed). Adjustment range of lifting performance: The inclination of back is 0 ° ~ 65o (+ 5o), the inclination of leg is 0 ° ~ 40o (+ 5o), and forward and backward inclination of bed body is 0-30o (+ 5o). left and right inclination of bed body 0-20o (+ 5o). (3) With weighing function, error ≤ 50g(4) Information such as angle, weight and operation status displayed on the liquid crystal screen.(5) Surface spraying: Green environmental protection spraying treatment is adopted, the overall color is consistent, and the spraying is uniform. The bed is coated with electrostatic powder coating, anti-rust full-treatment paint, acid-base corrosion resistance and fading resistance. (6) Headboard: PE blow molding, acid and alkali resistance, easy to clean. It can be easily and quickly disassembled, and can be used for CPR first aid. Equipped with patient information card slot. (7) The head of the bed is equipped with a multifunctional socket, which can be inserted into the drip
rack; There are four drainage frame hooks at the bottom of the bed. (8) Guardrail: PE blow molded with segmented four-piece side guardrail, the guardrail is equipped with operation control keys, the lower hidden design, the guardrail base: Aluminum alloy die-casting molding, fixed on both sides of the bed, synchronously lifting and lowering with the bed panel. It is equipped with manual panel and pedal operation board, which is convenient for patients and medical attendants to operate and use.
