Business Type: Manufacturer
Main Products:Steel PipesScaffoldingsLadder & Scaffolding PartsStainless Steel PipesPipe Fittings
ID:22101485013
Metallurgy,Chemicals & Energy Metallic Minerals Products
MOQ:5.00 Ton(s)
Hot Dipped GalvanizedGalvanized Threaded Steel PipeThreaded Carbon tube
L/CT/T
2 Tianjin accreditation enterprise technology centers.
Product Description
Products | Hot Dipped Galvianizd |
Material | Q195 = S195 / A53 Grade A Q235 = S235 / A53 Grade B / A500 Grade A / STK400 / SS400 / ST42.2 Q355 = S355JR / A500 Grade B Grade C |
Surface Treatment | Galvanized |
Alloy Or Not | Non-Alloy |
Size | DN15-200mm |
Thickness | 0.6MM-20MM(accroding to the buyer's request) |
Length | 12m, 6m, 1-12m(accroding to the buyer's request) |
Standard | ASTM A53, API 5L, ASTM A252, ASTM A795, ISO65, DIN2440, BS1387. BS1139, EN10255, EN39, JIS3444, GB/T 3091 & GB/T13793 |
Certificate | CE、BV、SGS、API |

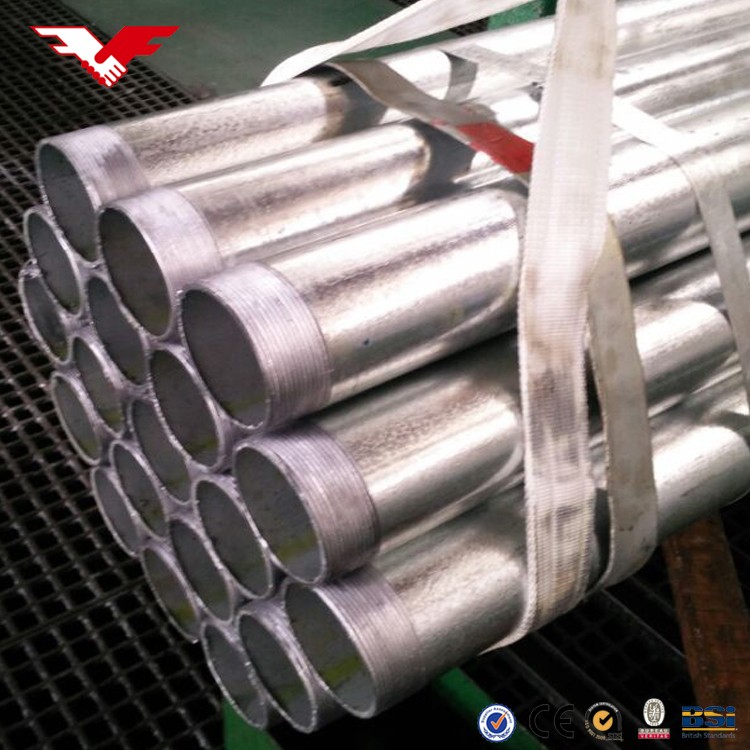

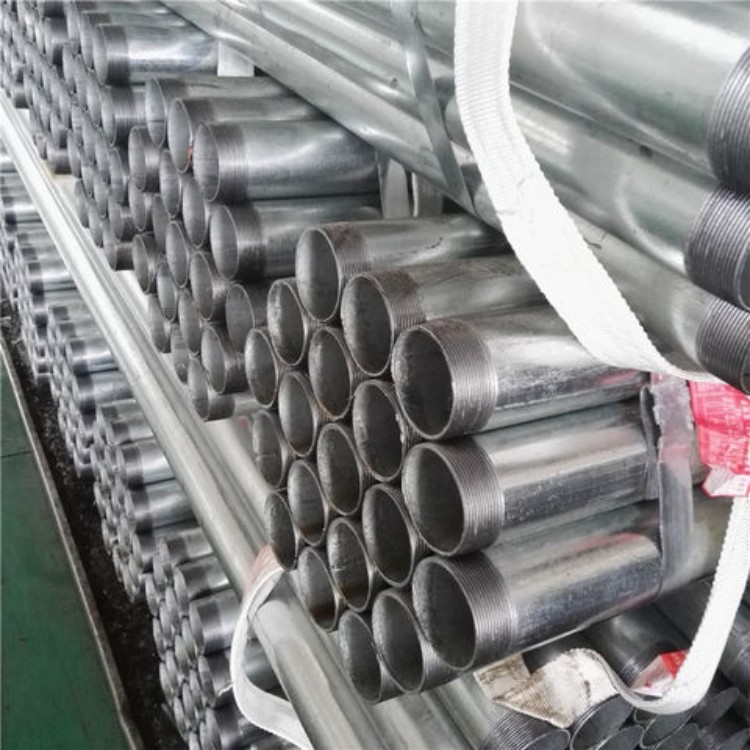

Pipe Ends | Threaded ends |

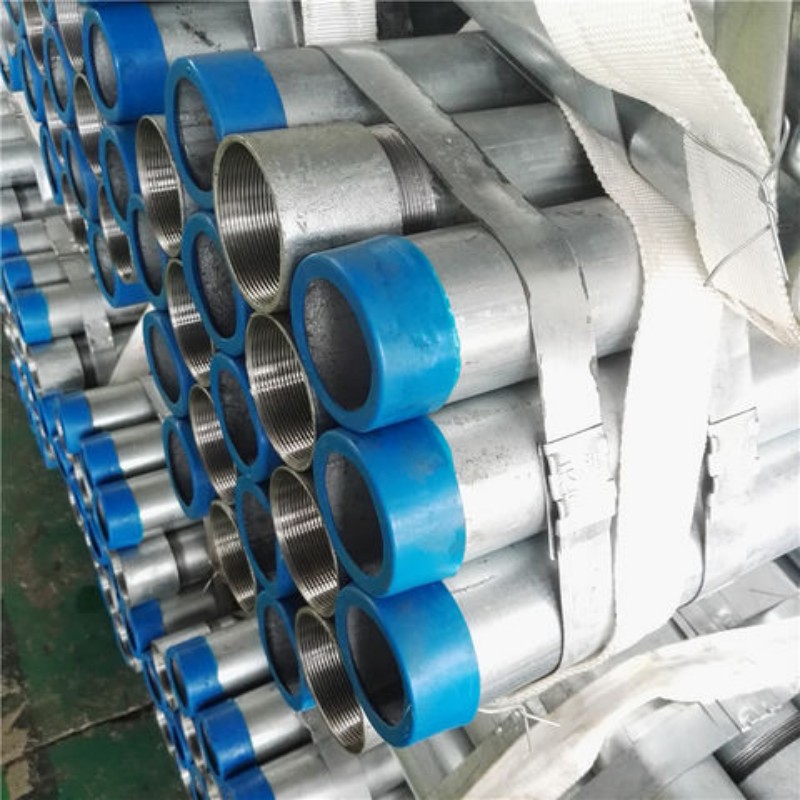

End Protection | With or Without caps(accroding to the buyer's request) |
Packing | Packed in bundles with nylon slings or piece by piece |
Application | Fluid Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe,fire protection， Construction of scaffolding，OIL PIP... |
Brand | Youfa |
Place Of Origin | Tianjin, China |
Trade Terms: | FOB/ CIF/ CFR / FCA / EXW |
Delivery Time: | 15-45 days (based on quantity) after receiving advanced payment by T/T or LC . |
Payment Terms: | T/T or L/C |
Outside Diameter | Wall Thickness | ||
DN | Inch | mm | mm |
15 | 1/2" | 20~21.3 | 0.95~2.77 |
20 | 3/4" | 25~26.9 | 1.1~2.87 |
25 | 1" | 32~33.7 | 1.1~4.0 |
32 | 11/4" | 40~42.4 | 1.1~4.0 |
40 | 11/2" | 47~48.3 | 1.5~7.0 |
50 | 2" | 58~60.3 | 1.8~7.0 |
65 | 21/2" | 73~76.1 | 2.0~7.0 |
80 | 3" | 87~88.9 | 2.2~8.0 |
90 | 31/2" | 101.6~102.1 | 2.2~9.0 |
100 | 4" | 113~114.3 | 2.2~9.0 |
125 | 5" | 140~141.3 | 2.5~10.0 |
150 | 6" | 165~168.3 | 2.5~10.0 |
200 | 8" | 216~219.1 | 2.75~12.0 |
250 | 10" | 272.8~273.2 | 5.0~13.75 |
300 | 12" | 323.8~325 | 5.5~13.75 |
350 | 14" | 355.6~356 | 5.5~13.75 |
400 | 16" | 406~406.4 | 5.75~13.75 |
450 | 18" | 457~457.2 | 5.75~17.75 |
500 | 20" | 507.9~508.1 | 5.75~17.75 |
600 | 24" | 609~610 | 5.75~17.75 |
Detailed Images
Technique

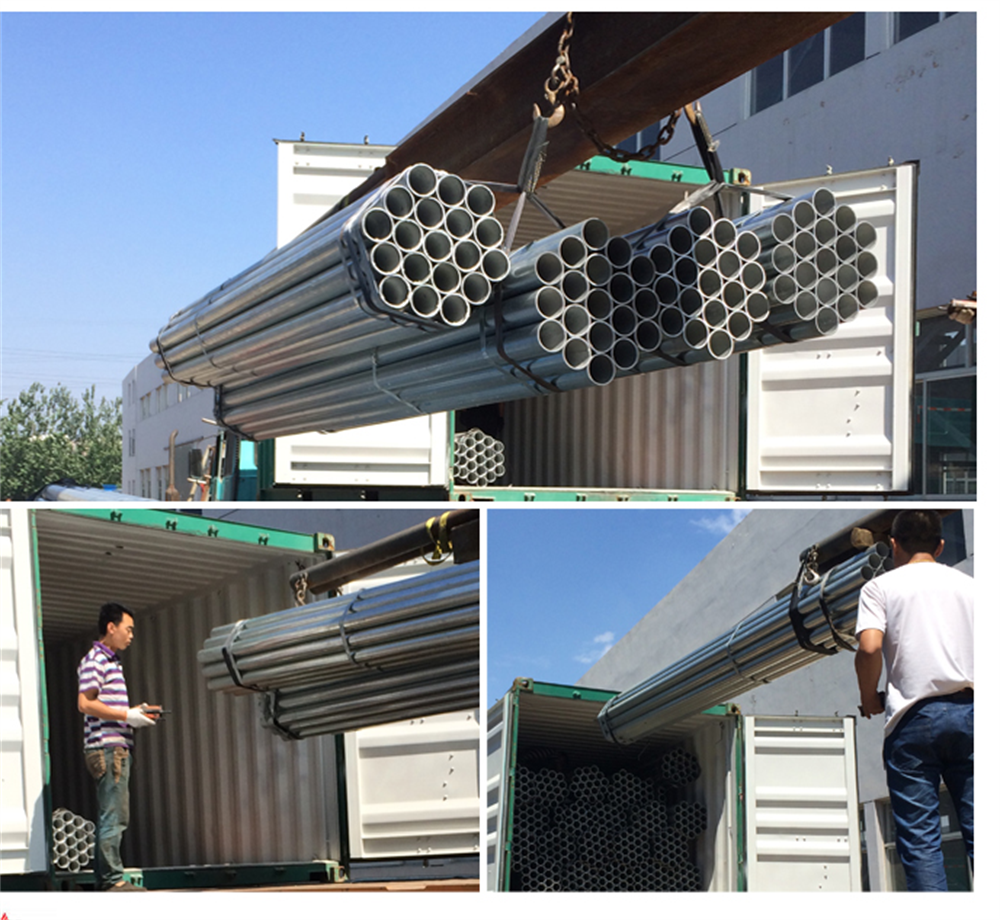

Packing & Delivery
Certificate
Company
Who We are?
(1) China Top 500 Enterprises Industry Leading Brands
(2) 22 years experience in manufacturing and exporting steel products since 2000.
(3) For 16 Consecutive Years of The First Production and Sales
(4) Key Project Supplier---Three Gorges Project, the Capital International Airport, Shanghai Pudong International Airport, the 2008 Olympic Games venues , the Word Expo 2010, etc.
What We own?
9000 employees.89 ERW steel pipe production lines60 hot dipped galvanized steel pipe production lines43 square and rectangular steel pipe production lines9 SSAW steel pipe production lines27 steel-plastic complex steel pipe production lines17 hot dip galvanized square and rectangular steel pipe production lines3 national accredited laboratory with CNAS Certificates
2 Tianjin government accreditd business technology center1 factory for scaffoldings1 factory for stainless steel pipe
