Product Name | Stainless Steel Wire Rope Swageless Terminal Cable Fittings |
Material | Stainless Steel 316 or 304 or Cable Steel |
Surface finish | Highly Polished |
Color | Nickel White |
Standard | Metric and UNF |
Main Products | Eye Swageless Terminal;Fork Swageless Terminal;Welded Fork Swageless Terminal;Thread Stud Swageless Terminal;Closed Body Turnbuckle With Quick Installation;Inside Thread Stud Swageless Terminal;Closed Body Turnbuckle Toggle With Swageless Terminal;Toggle With Swageless Terminal;Toggle With Swageless Terminal;Closed Body Turnbuckle Fork With Swageless Terminal |
Advantage | Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion. |
Thread | coarse, fine |

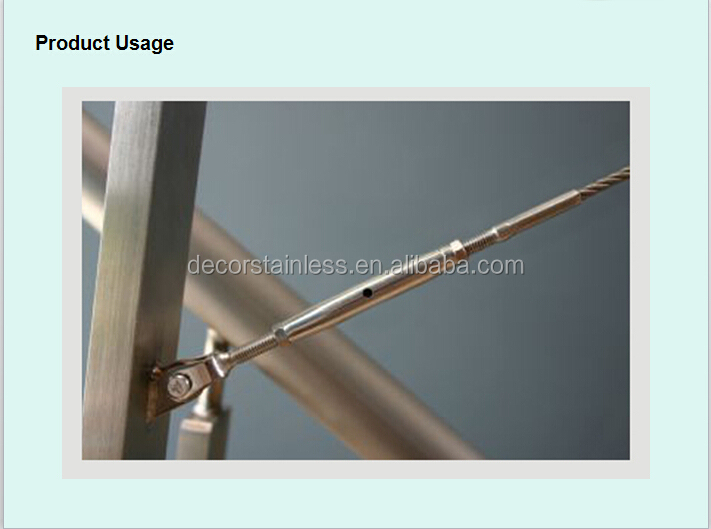

Used | These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails. Each turnbuckle body can be mixed and matched with jaw, eye and stud ends. |

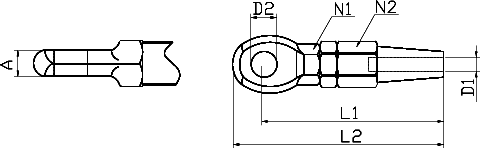

Eye Swageless Terminal
| Dimension | Size A | L1 | L2 | D1 | D2 | N1 | N2 | Breaking Load |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | mm | (kg) |
| 3 | 5.5 | 50 | 58 | 3 | 6.3 | 10 | 12 | 750 |
| 4 | 7 | 58 | 68 | 4 | 8.3 | 13 | 14 | 1500 |
| 5 | 8 | 70 | 81 | 5 | 10.3 | 14 | 16 | 2180 |
| 6 | 9 | 83 | 97 | 6 | 12.3 | 17 | 19 | 3700 |
| 7 | 9 | 89 | 105 | 7 | 12.3 | 18 | 22 | 4700 |
| 8 | 10 | 103 | 121 | 8 | 14.3 | 19 | 24 | 5600 |
| 10 | 13 | 116 | 135 | 10 | 16.3 | 24 | 27 | 8300 |
| 12 | 15 | 137 | 160 | 12 | 19.5 | 27 | 32 | 12000 |

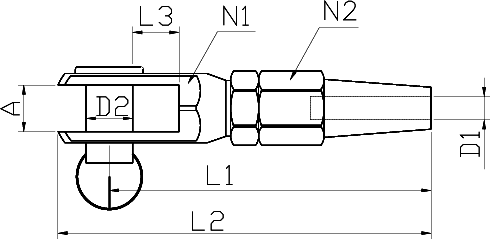

Fork Swageless Terminal
| Dimension | Size A | L1 | L2 | L3 | D1 | D2 | N1 | N2 | Breaking Load |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) |
| 3 | 6 | 55 | 63 | 8 | 3 | 6 | 14 | 12 | 750 |
| 4 | 8 | 62 | 73 | 8 | 4 | 8 | 19 | 14 | 1500 |
| 5 | 10 | 72 | 83 | 10 | 5 | 10 | 22 | 16 | 2180 |
| 6 | 12 | 82 | 95 | 12 | 6 | 12 | 27 | 19 | 3700 |
| 7 | 12 | 102 | 115 | 13 | 7 | 12 | 29 | 22 | 4700 |
| 8 | 14 | 103 | 118 | 14 | 8 | 14 | 30 | 24 | 5600 |
| 10 | 16 | 117 | 135 | 16 | 10 | 16 | 36 | 27 | 8300 |
| 12 | 18 | 142 | 162 | 16 | 12 | 19 | 42 | 32 | 12000 |
Welded Fork Swageless Terminal
| Dimension | Size D1 | N2 |
| (mm) | (mm) | (mm) |
| 4 | 4 | 14 |
| 5 | 5 | 16 |
| 6 | 6 | 19 |
| 8 | 8 | 24 |
| 10 | 10 | 27 |

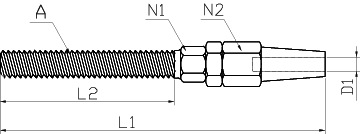

Thread Stud Swageless Terminal (Metric)
| Dimension | Size A | L1 | L2 | D1 | N1 | N2 | Breaking Load |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) |
| 5*3 | 5 | 79 | 42 | 3 | 10 | 12 | 750 |
| 6*3 | 6 | 85 | 47 | 3 | 10 | 12 | 750 |
| 6*4 | 6 | 92 | 47 | 4 | 12 | 14 | 1500 |
| 8*5 | 8 | 111 | 57 | 5 | 13 | 16 | 2180 |
| 10*5 | 10 | 117 | 63 | 5 | 13 | 16 | 2180 |
| 12*6 | 12 | 145 | 80 | 6 | 16 | 19 | 3700 |
| 14*7 | 14 | 162 | 89 | 7 | 18 | 22 | 4700 |
| 14*8 | 14 | 171 | 89 | 8 | 19 | 24 | 5600 |
| 16*8 | 16 | 182 | 100 | 8 | 19 | 24 | 5600 |

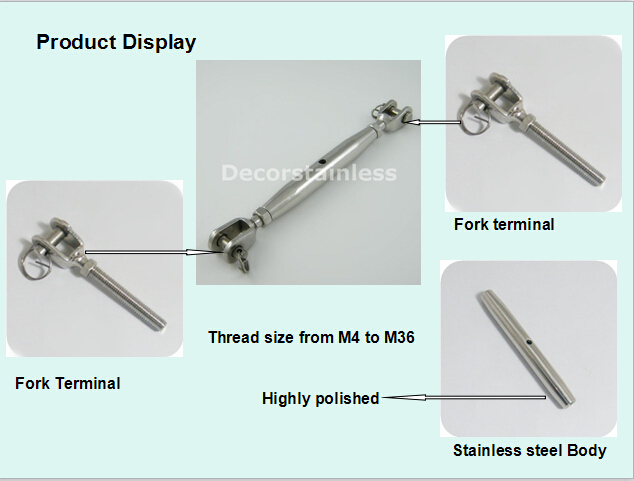

Closed Body Turnbuckle With Quick Installation
| Dimension | Size A | G | D1 | N1 | N2 |
| (mm) | (mm) | (mm) | (mm) | (mm) | mm |
| 5*3 | 7.5 | 5 | 3 | 10 | 12 |
| 6*3 | 9.5 | 6 | 3 | 10 | 12 |
| 6*4 | 9.5 | 6 | 4 | 12 | 14 |
| 8*5 | 11 | 8 | 5 | 14 | 16 |
| 10*5 | 12 | 10 | 5 | 14 | 16 |
Q: What is material you can supply?
A: Stainless steel 316 or stainless steel 304
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 30-35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance upon copy of B/L.
If you have another question, pls feel free to contact us.
