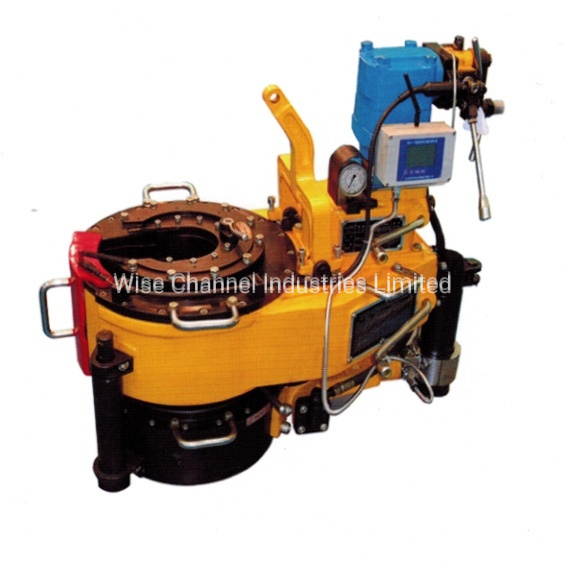

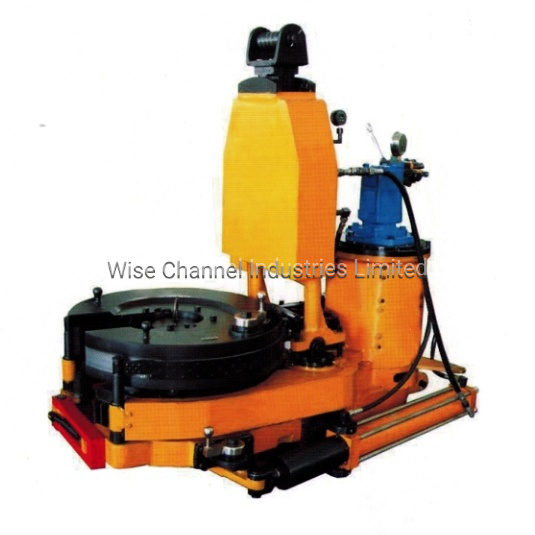

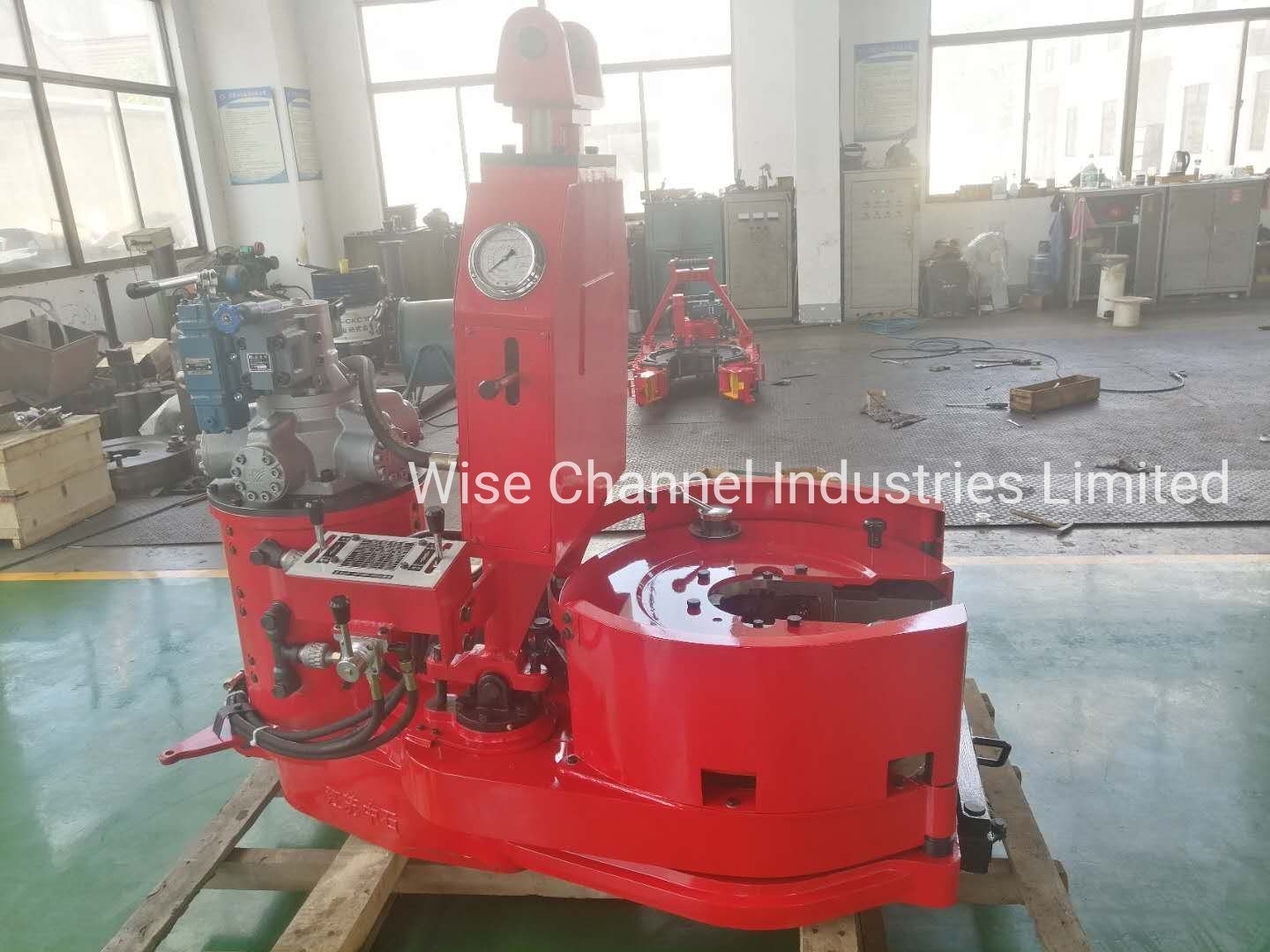

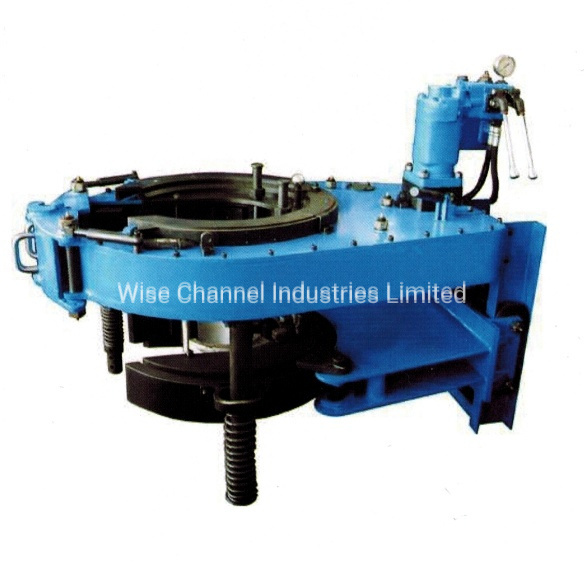

he casiTng tong is used to make up and break out for casing operation in oil field. It has greatly reduced the labor of worker, enhanced connection quality of thread and diminihed accidents in inappropriate casing operation. The tong has the following features:
1. Open head type, optimized design;
2. Brake belt assembly,up and down cnetralizing mechanism;
3. Wholly hydraulic mode and mechanical gear shift;
4. Equipped with torque gauge, optional torque control system to display, control and record the make-up torque;
Main parameters for casing hydraulic power tong
| Range of casing tong | 4 1/2",5",5 1/2",7",8 5/8",9 5/8" | 4 1/2",5",5 1/2",6 5/8",7",8 5/8",9 5/8",10 3/4",13 3/8" | 9 5/8",10 3/4", 13 3/8",16",18 5/8",20" |
| Torque of high gear | 2600N.m@12MPa | 4800N.m@13.8Mpa | 10160N.m@17.3Mpa |
| Troque of low gear | 20000N.m@12Mpa | 35000N.m@13.8Mpa | 70000N.m@18Mpa |
| Rated speed of high gear | 67 rpm | 42 rpm | 26 rpm |
| Rated speed of low gear | 9 rpm | 6 rpm | 4 rpm |
| Rated system pressure | 10MPa | 11Mpa | 12Mpa |
| Rated flow | 120 LPM | 120 LPM | 132.5LPM |
| Dimenison(mm) | 1500*630*650 | 1580*900*850 | 1980*1219*690 |
| Weight | 500kg | 750kg | 1450kg |

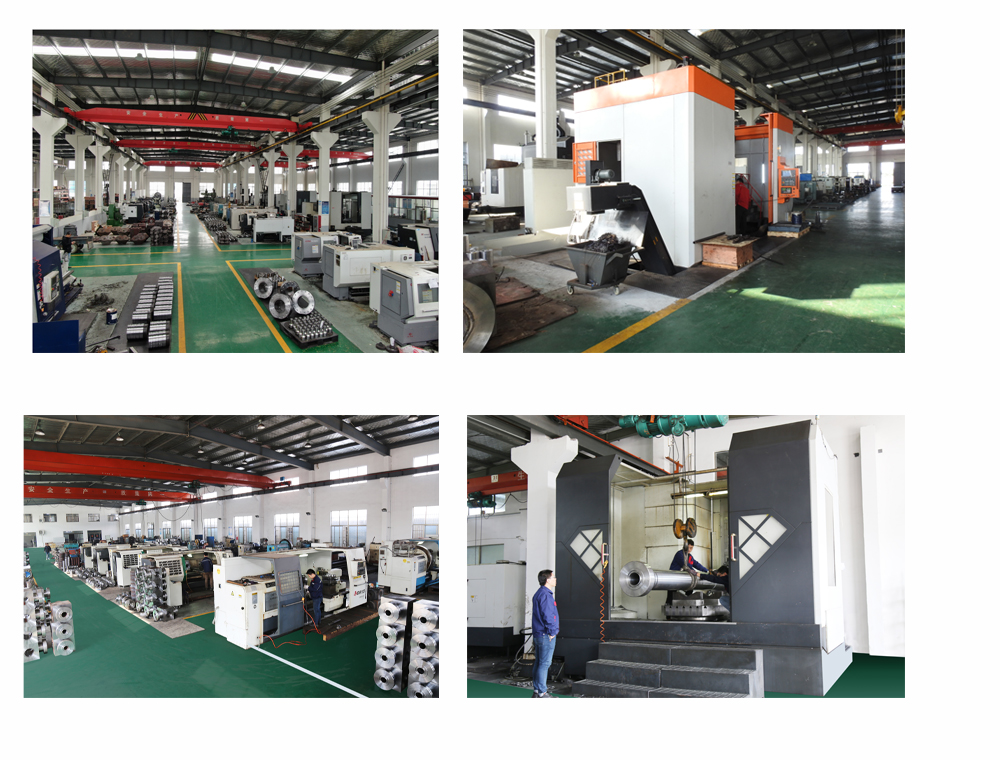

Production Lines:
