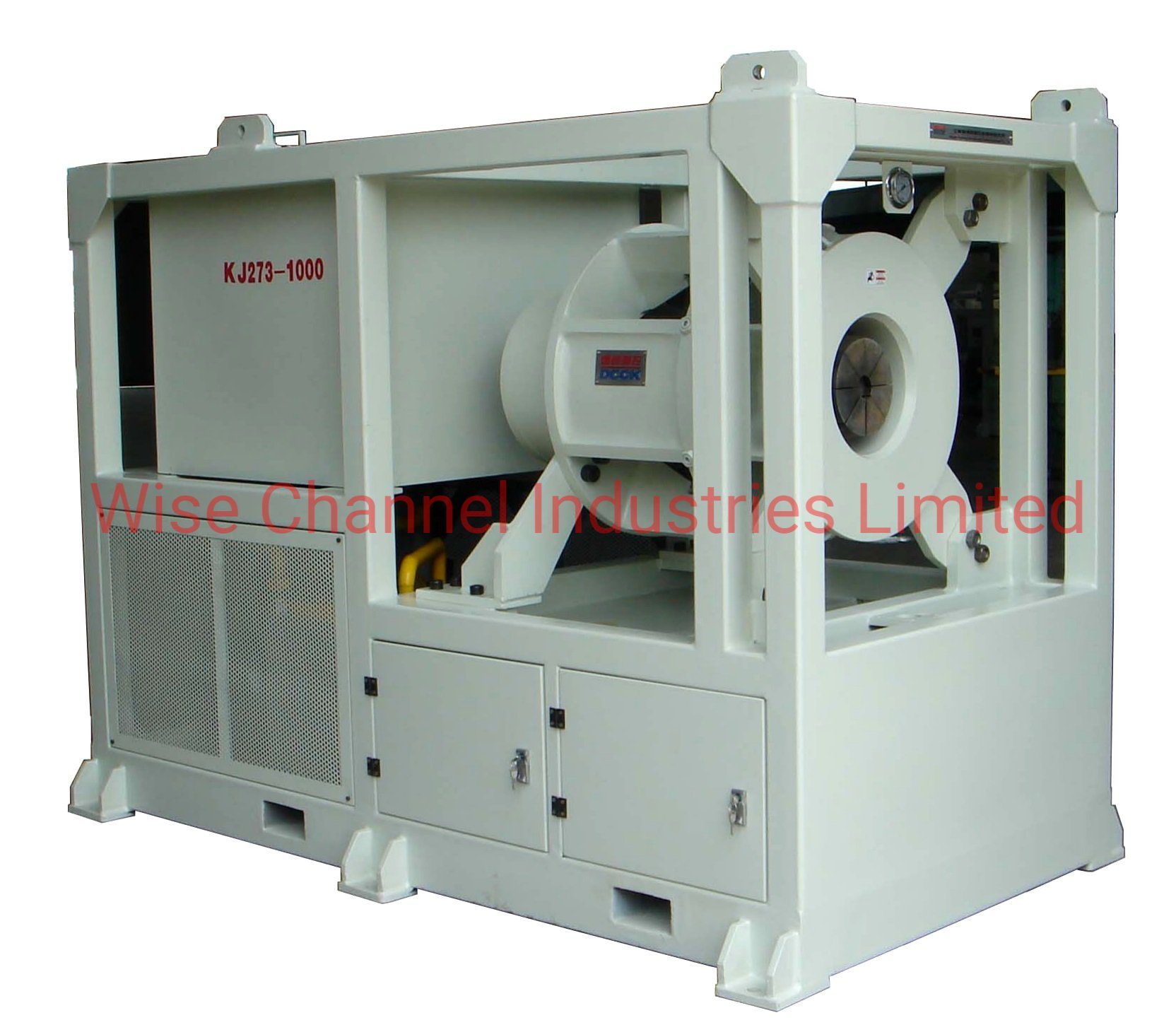

KJ273 Tubing&Casing Flaring Machine

 KJ273 Tubing&casing flaring machine
Since there are the ellipticity and wall thickness error for tubing and casing,pipe end thread with black skin may occur during thread machining. Using necking machine to form the pipe end can eliminate black skin at pipe end, and improve the quality.It is especially suitable for flaring of tubing &casing whose body and coupling are integrated.

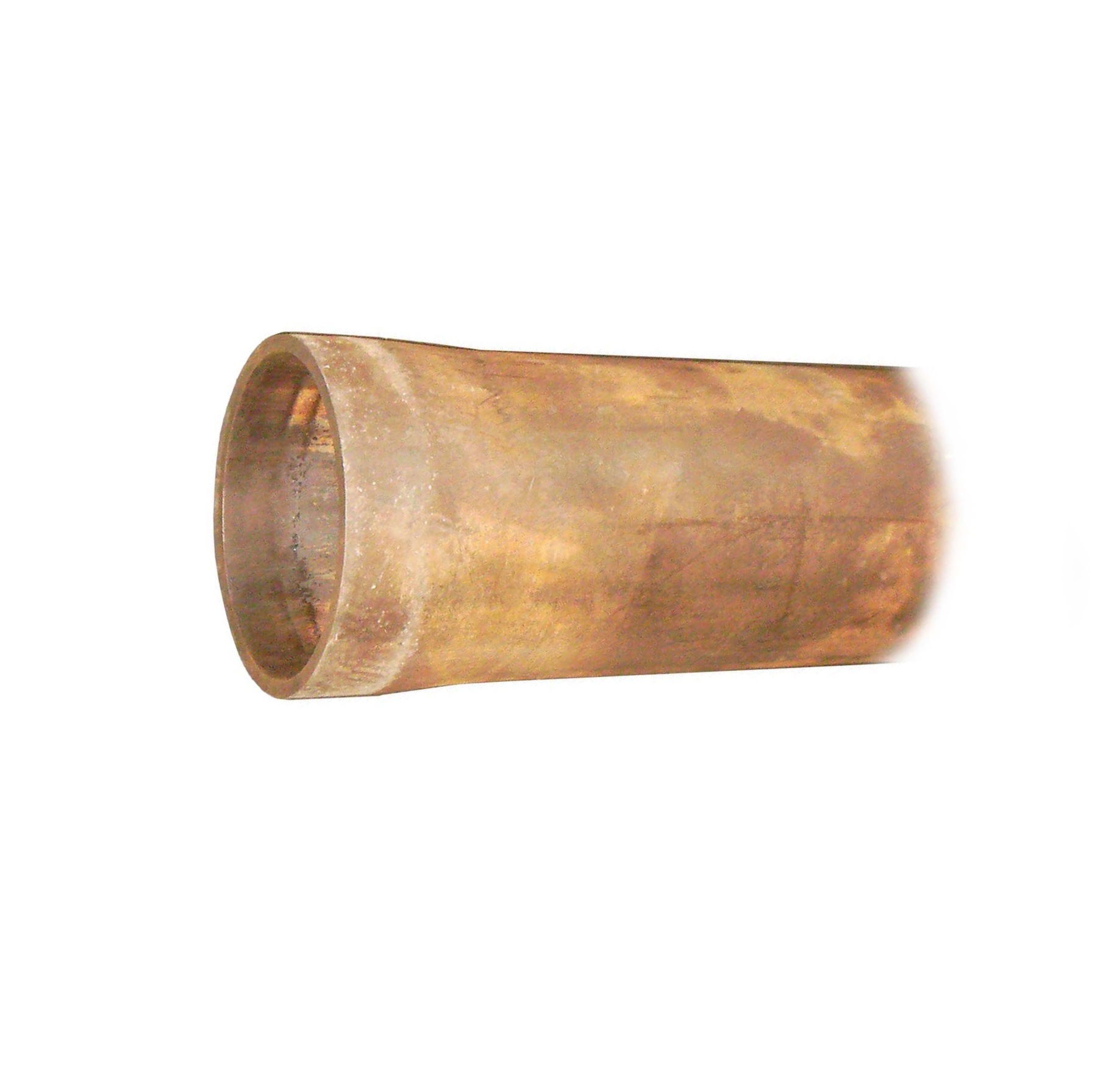

Appearance of pipe end after flaring process

 Main functions and characteristics:


1.Adopt the radial expansion mechanism to light up the equipment and reduce the cost;
2.Overcome the defect of pipe end deformation caused by the axial expansion mechanism;
3.The radial flaring mechanism is used in the radial flaring mechanism, which can obtain large radial flaring force under lower working pressure;
4.Good work mobility in each cricle, can complete each circle in 25s.
5.Automatically control flaring size, just enter the required flaring size, to ensure that the necking error is within the rang of ±0.3mm
6.The design structure is compact, the overall size, volume, weight, cost is half of  axial flaring  mechanism;
7.Realize the automatic and manual optional method, to facilitate customers to operate according to their needs;
8.Use two-level transfer in the feeding process,to ensure accurate positioning of the feeding.
9.The pipe end is free from mechanical stress during flaring process.

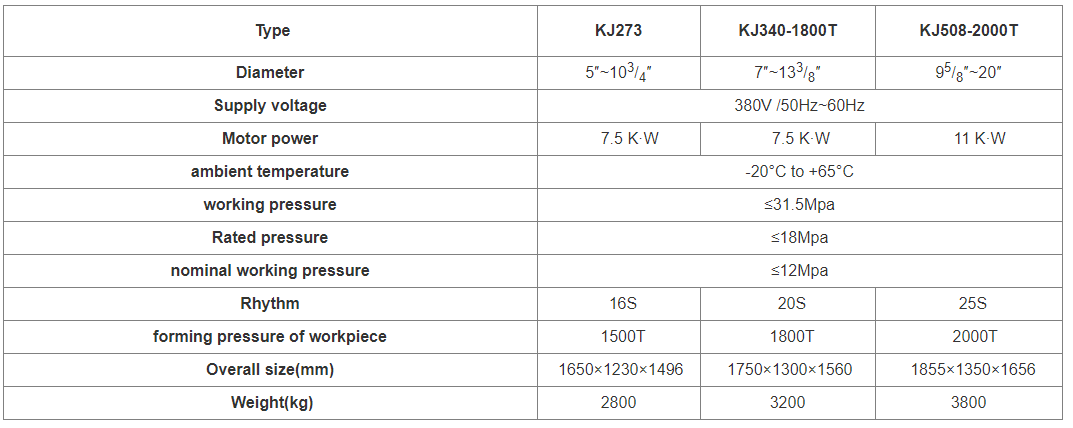

Main technical parameters :
