NJ73 Bucking Unit for Sucker Rod

NJ73 (27 / 8 ″) -3 is suitable for processing and repairing of sucker rod, especially the buckle for threads with steps and normal threaded buckle hoop.The mark is subtle, and the depth is less than 0.1mm. The floating arm tong can accurately detect the buckle torque, accurately display buckle torque value from 10-300 N.M, and it is also suitable for the processing of special buckle joints.

Equipment characteristics

1.processing and repairing of sucker rod
2.Can accurately detect the buckle torque value of 10~3500 N M
3.With manual operation, fully automatic operation for selection
4.Adopt  8 " touch screen industrial control terminal for torque display, control and recording.
5.Can set operating parameters, rod body, coopling  parameters, maximum torque, minimum torque, optimal torque, maximum circles and minimum circles of buckle process.
6.Display and control buckle torque value in diagram.
7.Record, query, and print  production records in diagram and daily report mode.
8.Production process records can be transferred through U disk to any computer in the office for storage or printing.


  Main technical parameters
 Suitable diameter: 1″~2⁷/₈″(?25.4mm~?73mm)
 High-gear torque:        1100N·M
 Low-gear torque:        3500N·M
 High-gear speed:     30~80r/min
 Low-gear speed:     10~30r/min
 consumed power :        7.5KW
 Max.flow rate of hydraulic system:20~60L/min(Manual stepless variable)
 Hydraulic system peak pressure:31.5 MPa
 Max.working pressure :    20MPa
 Rated system pressure:     16 MPa:
 Maximum diameter of master and backup tong: 95mm.
 Center height of equipment:  580mm

Overall dimensions and weight of the equipment
 Bucking unit:    1300×720×1150,    about 420kg
 Hydraulic station:    1000×750×1160,  about 350 kg

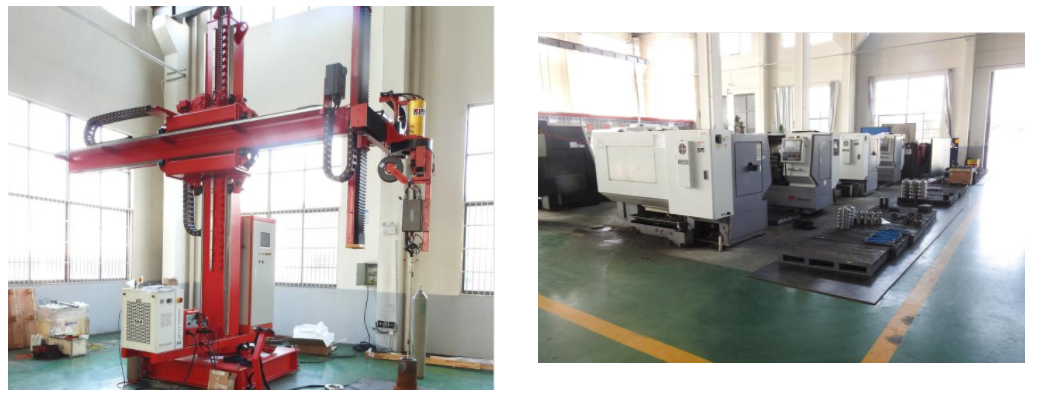

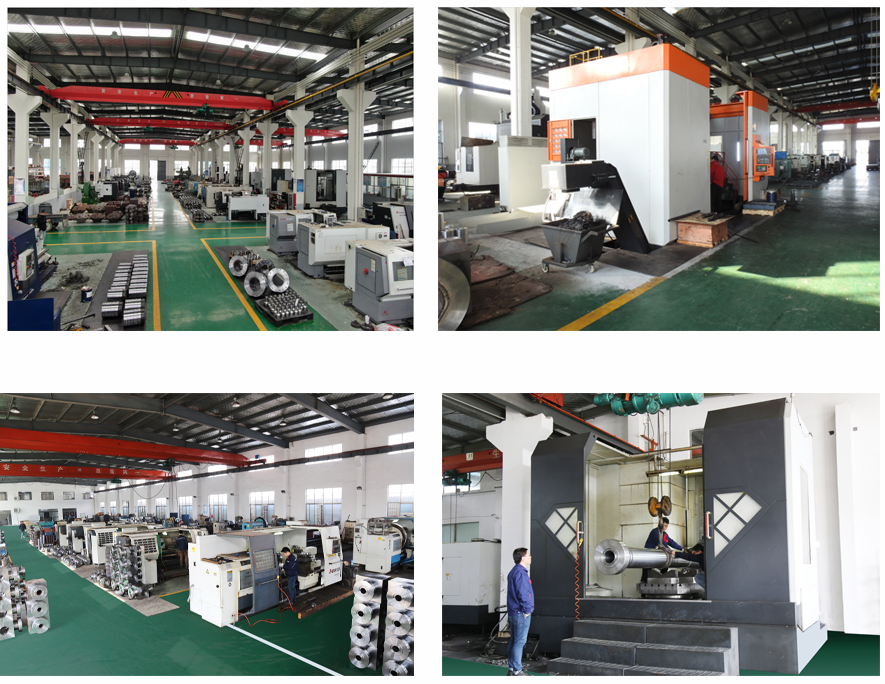

Our Facilities
