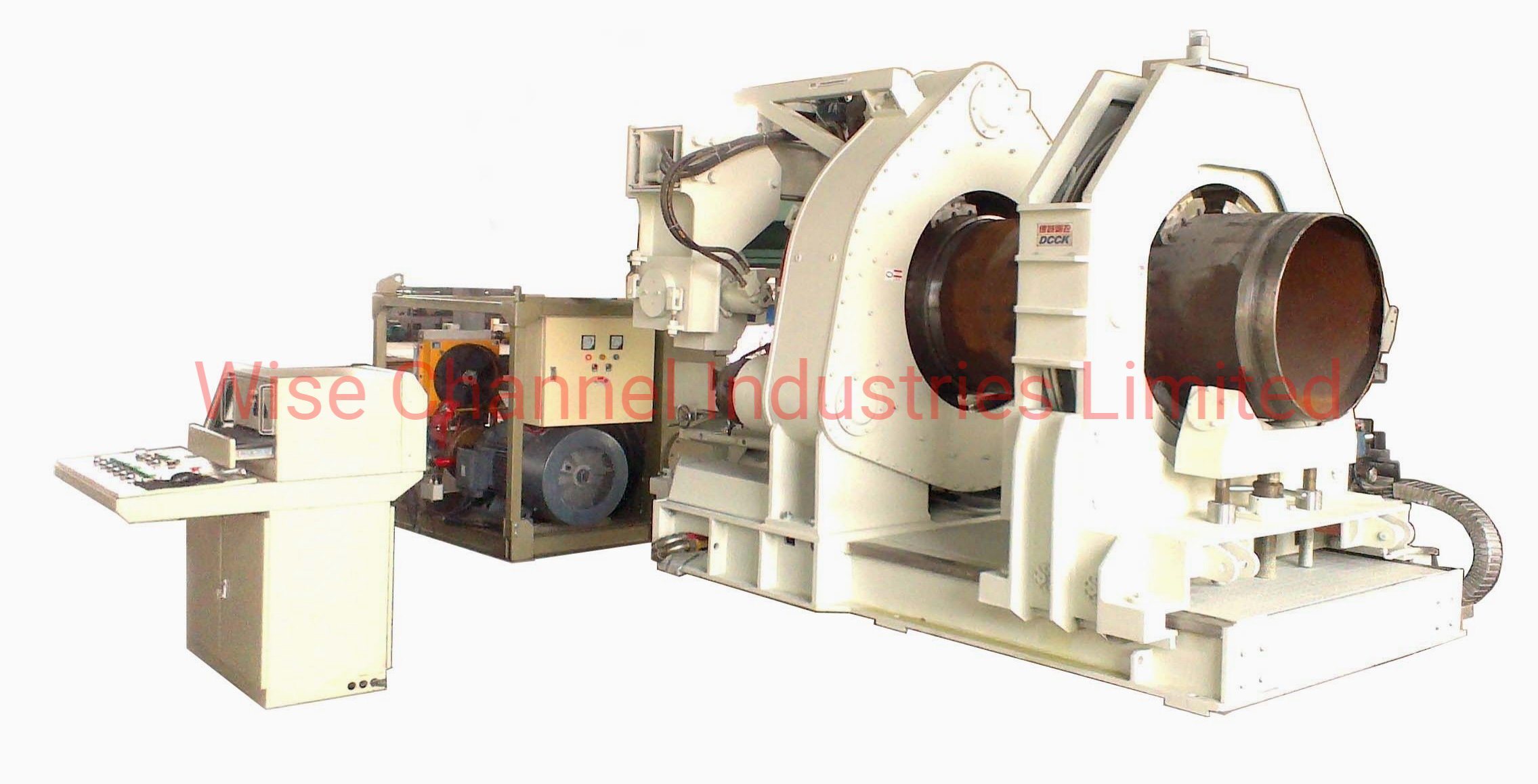

NJ762 Bucking Unit for Conduit and Marine Riser

NJ762-100 is suitable for special equipment for surface casing, conduit, and riser, ranging 13 3 / 8 - 30", and also for special thread buckle and .coupling. The impression is tiny, and the impression depth is less than 0.1mm. The floating arm tong can accurately detect the buckle torque, clearly display the torque diagram during the buckle, automatically change the speed, and the low speed is less than 1 r/min, which is suitable for the processing demand of large diameter casing.

Equipment characteristics

1.Automatic stepless variable speed system realizes automatic speed change, high speed buckle and low speed tight torque in the buckle process, which can not only improve the working efficiency, but also meet the API specification of threaded buckle.
2.Floating dies can fully fit the pipe body to ensure that the fastening process does not slip
3.In the process of buckle, backup tong can move back and forth, up and down left and right floating, floating range is
about 5mm. Backup tong can float integrallyn while clamping.
4.Front and rear movement of backup tong: 800mm, using hydraulic cylinder as moving power.
5.can  switch make up/ break operation aumatically.
6.The equipment is suitable for both special buckle casing processing and  normal thread buckle processing
7.Display and control pipe buckle torque, shoulder torque and shoulder circles by diagram.
8.Record, query, and print production records in diagram and daily report mode.





  Main technical parameters

The specification of applicable steel pipe: 13 3 / 8 ″ - 30 ″casing. (Equipped with the corresponding jaw plate and dies).If the user needs to process the products of special specifications, he needs to provide specific specification data, and can process the corresponding jaw plate and dies as required.

Center height of equipment: 1450mm
Automatic stepless variable speed: 1~8r/min
Max. Torque:     130 KN·M
Inpression depth:     ≤0.1 mm
Max.diameter of master&backup tong:820mm.
Nominal working pressure :   ≤16 MPa
Max. Flow rate of hydraulic system:250Lpm




Overall size and weight

 Bucking unit(L×W×H):   3200×2018×2689    Weight:Around 9600kg
 Hydraulic station(L×W×H :  1750×1080×1140   Weight:Around 1600kg
 Operating table(L×W×H) :  950×1020×1180      Weight around 120kg
