WHY45000 high pressure pumps are built to operate at the continuous maximum duty stated in the performance parameters. Just compare the crankshaft speed, average plunger speed, plunger diameter and power rating.

Features

• Power ratings up to 450kw

• vertical3 cylinder design

• Wide variety of complementary ancillaries

Quality and reliability

• Stainless steel pump head free of alternating stress

• Spring preload high pressure sealing make it longer life

• Solid solid ceramic plunger to ensure high strength and stable operation

• An integrated lubricating oil and piston cooling system to improve the service life.

• Built-in double gear reducer to make transmission balance higher efficiency

• Special design of the crankcase magnetic filter

• Crankcase forced lubrication system

• An integrated ball type liquid inlet valve design, greatly improving the efficiency of fluid mechanics.

• Computational fluid mechanics design in dynamic load to ensure the highest reliability under max duty working conditions.

• The crankshaft is made of a high strength forging process and is specially treated

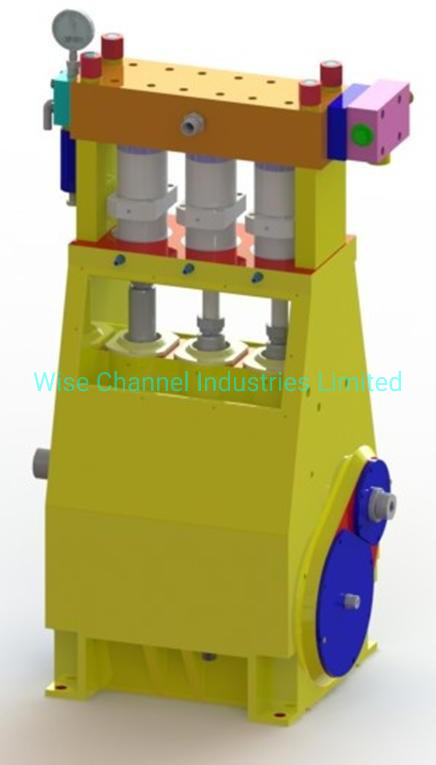

High Pressure Pump
Weight:approx.1500 KG
Standard inlet joint size:M64x2
Standard outlet joint size: M36x2

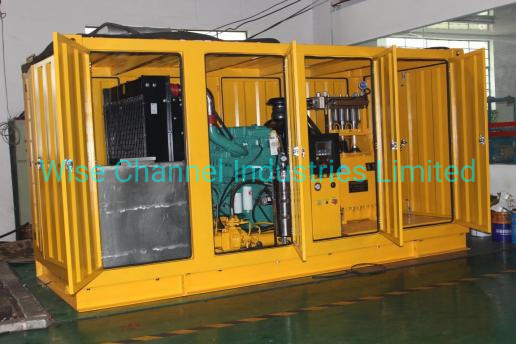

Stationary unit with diesel engine

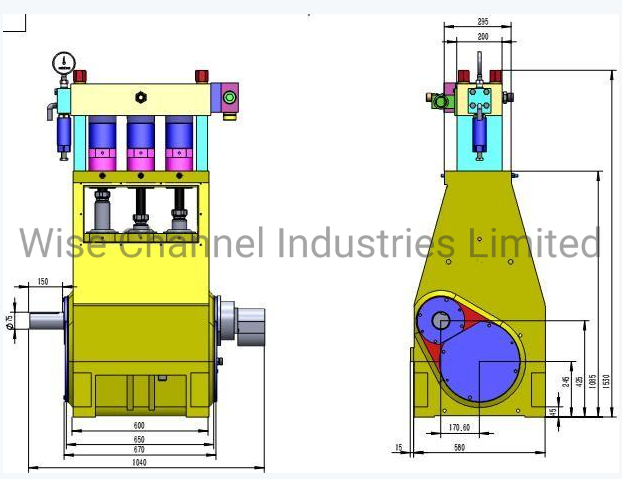

Length: 4500 mm
Width: 2000 mm
Height: 2400 mm
Weight: 7500 kg

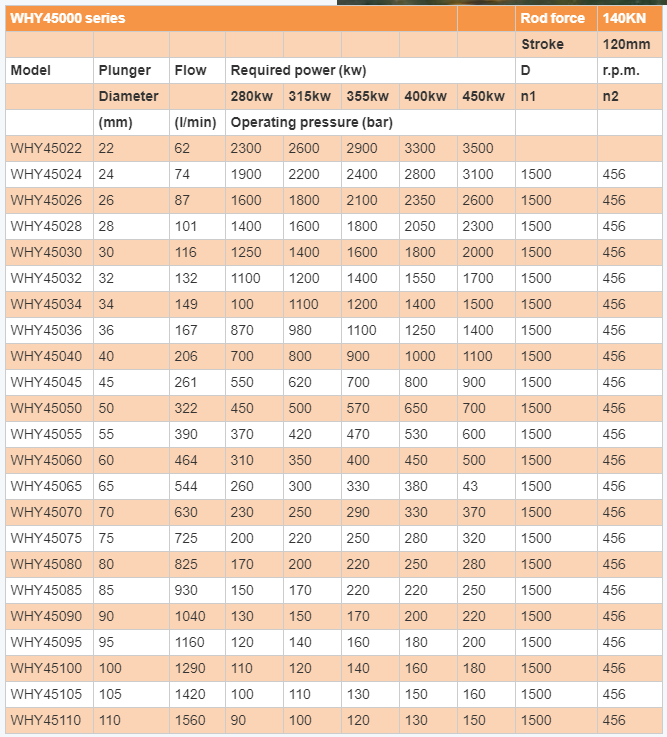

D=Piston/Plunger dia. [mm] WHY45024~WHY45032:A type Fluid End, spring loaded dynamic seal, SS fluid end n1=Motor/Engine r.p.m. WHY45030~WHY45055:B type Fluid End, spring loaded packing seal, alloy steel & SS fluid end n2=Crankshaft r.p.m WHY45060~WHY45110:C type Fluid End, spring loaded packing seal, alloy steel fluid end
N2 Plunger speed:0.73m/s Conversion table:Rating 1kW=1.34HP Rod force:140KN Op.pressure 1bar=14.5psi=0.1Mpa Stroke:120mm
Choice N2:366 Conversion efficiency of WHY high pressure pump can up to 90%~96%
