Pan head chipboard screws have a sharp point. With its sharp cutting threads, the chipboard screws can be used for wood or plastic applications.
Specification
Standard: DIN 7505 (B)
Material: Carbon Steel
Form: B
Diameter: 2.5, 3, 3.5, 4, 4.5, 5, 6
Finish: Plain, Black Oxide, Bright, Zinc Plated, Passivated
Head Type: Pan Head
Drive Type: Pozi Drive
MOQ: 1000kgs
Lead Time: 30 to 60 days

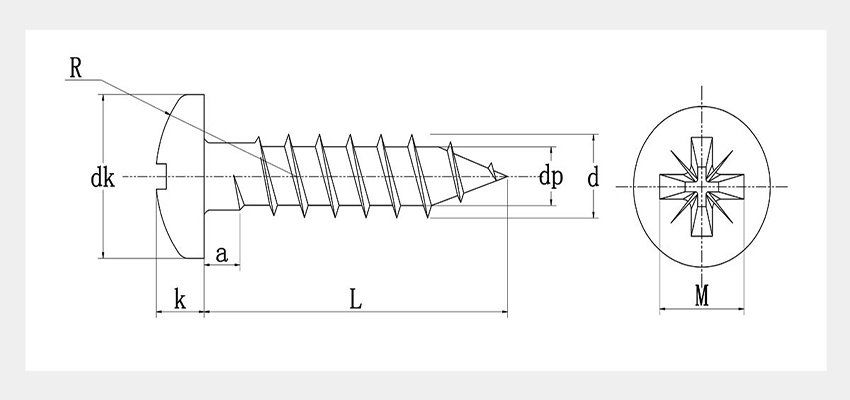

| SPECIFICATIONS | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | |
| D | max=nominal size | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 6 |
| min | 2.25 | 2.75 | 3.2 | 3.7 | 4.2 | 4.7 | 5.7 | |
| P | Pitch(±10%) | 1.1 | 1.35 | 1.6 | 1.8 | 2 | 2.2 | 2.6 |
| DK | max=nominal size | 5 | 6 | 7 | 8 | 9 | 10 | 12 |
| min | 4.52 | 5.52 | 6.42 | 7.42 | 8.42 | 9.42 | 11.3 | |
| K | Nominal Size | 2 | 2.25 | 2.6 | 2.8 | 3 | 3.5 | 4.1 |
| max | 2.12 | 2.37 | 2.72 | 2.92 | 3.15 | 3.65 | 4.25 | |
| min | 1.88 | 2.13 | 2.48 | 2.58 | 2.85 | 3.35 | 3.95 | |
| A | max | 1.1 | 1.35 | 1.6 | 1.8 | 2 | 2.2 | 2.6 |
| R | ≈ | 5 | 6 | 7 | 8 | 9 | 10 | 12 |
| DP | max=nominal size | 1.5 | 1.9 | 2.15 | 2.5 | 2.7 | 3 | 3.7 |
| min | 1.1 | 1.5 | 1.67 | 2.02 | 2.22 | 2.52 | 3.22 | |
| M ≈ | 2.6 | 3.12 | 3.81 | 4.65 | 5 | 5.28 | 6.63 | |
| SOCKET NO. | 1 | 1 | 2 | 2 | 2 | 2 | 3 | |
Packing Details
The packaging could be customized according to customer needs. And it would be fully reinforced to prevent unexpected damages during the shipment.
