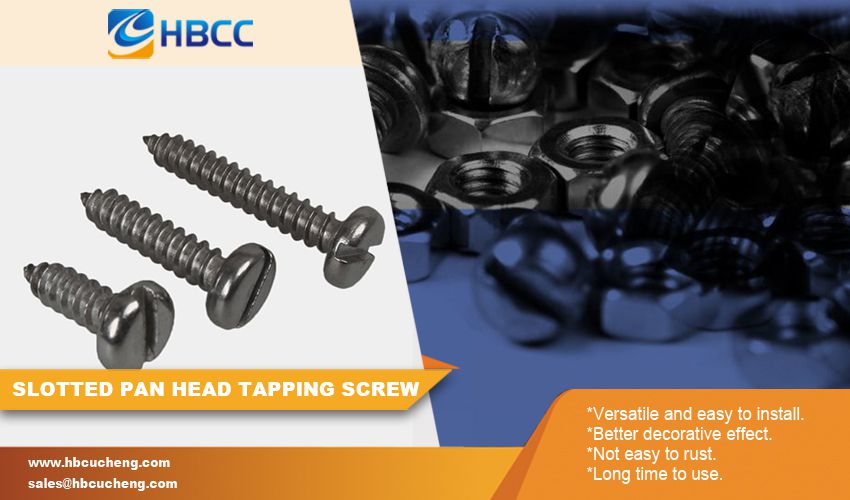

Slotted pan head self tapping screws also name self tapping pan head metal screws. Self-tapping screws are mainly used for the connection of some thinner plates. When connecting with fixed, first make a threaded bottom hole for the connected piece, and then screw the self-tapping screw into the threaded bottom hole of the connected piece.
Specification
Material: Steel, Stainless Steel
Diameter: ST2.2~ST6.3
Finish: Plain, Black, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type: Pan Head
Drive Type: Internal Slot
Thread Type: Self-Tapping Screw Thread
| Thread Size | ST2.2 | ST2.9 | ST3.5 | (ST3.9) | ST4.2 | ST4.8 | ST5.5 | ST6.3 | ||
| P | Pitch | 0.8 | 1.1 | 1.3 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 | |
| a | max | 0.8 | 1.1 | 1.3 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 | |
| dk | max=nominal size | 4.2 | 5.6 | 6.9 | 7.5 | 8.2 | 9.5 | 10.8 | 12.5 | |
| min | 3.9 | 5.3 | 6.54 | 7.14 | 7.84 | 9.14 | 10.37 | 12.07 | ||
| k | max=nominal size | 1.35 | 1.75 | 2.1 | 2.25 | 2.45 | 2.8 | 3.2 | 3.65 | |
| min | min | 1.15 | 1.5 | 1.85 | 2 | 2.15 | 2.5 | 2.85 | 3.3 | |
| n | Nominal Size | 0.6 | 0.8 | 1 | 1 | 1.2 | 1.2 | 1.6 | 1.6 | |
| min | 0.66 | 0.86 | 1.06 | 1.06 | 1.26 | 1.26 | 1.66 | 1.66 | ||
| max | 0.8 | 1 | 1.2 | 1.2 | 1.51 | 1.51 | 1.91 | 1.91 | ||
| t | min | 0.55 | 0.75 | 0.95 | 1.05 | 1.15 | 1.35 | 1.55 | 1.8 | |
| y | max | Form C | 2 | 2.6 | 3.2 | 3.5 | 3.7 | 4.3 | 5 | 6 |
| Form F | 1.6 | 2.1 | 2.5 | 2.7 | 2.8 | 3.2 | 3.6 | 3.6 | ||
Packing Details
The packaging could be customized according to customer needs. And it would be fully reinforced to prevent unexpected damages during the shipment.
Product Advantages
Quality Control
Application
