mono solar panles 300W -390W72 cells solar pv module 350wmono solar panel 370w Perc PV module 380w 390w360watt solar panelssolar energy pv module
L/CT/TD/P
Specifications and Details
Model | OS-M72-370 | OS-M72-380 | OS-M72-390 |
Cell | MONO | MONO | MONO |
Max Power | 370W | 380W | 390W |
Max Power Voltage | 39.02V | 39.38V | 40.12V |
Max Power Current | 9.48A | 9.65A | 9.72A |
Open Circuit Voltage | 47.98V | 48.44V | 49.31V |
Short Circuit Current | 9.98A | 10.09A | 10.19A |
Number of Cells | 72(6*12) | 72(6*12) | 72(6*12) |
Size of Cells (mm) | 156*156 | 156*156 | 156*156 |
Dimensions(mm) | 1955*992*35 | 1955*992*35 | 1955*992*35 |
Maximum system voltage | 1000VDC | ||

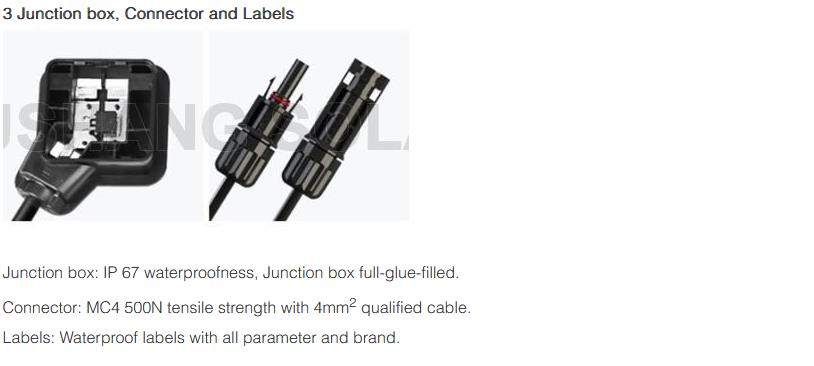

Junction Box Protection | IP67 | ||
Cables | 4mm2 | ||
Connector | MC4 | ||
Max wind load | 2400Pa | ||
Max snow load | 5400Pa | ||
Operating Temperature | -40℃~+85℃ | ||
Power Tolerance | ±3% | ||
