Construction & Decoration Hardware
MOQ:1.00 Ton(s)
Large Head NailsGalvanized Clout NailsFelt NailsStainless Steel Clout NailsRoofing Felt NailsRoofing Felt Clout NailsFlat Head Steel Clout NailsBig Flat Head Clout NailClout Nail With Overlarge HeadLarge Head Clout Nails
L/CT/TD/P

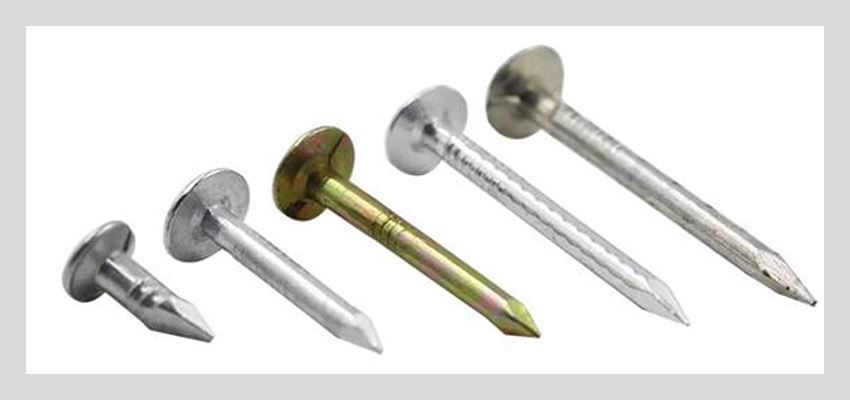

Clout nail is a relatively short and thick nail with a large and flat head, which is used to nail boards to wooden frames or boards. It is mostly used for fixing roof waterproof linoleum.
Specification
Diameter: 2.1mm ~ 4.0mm
Length: 12.7mm ~ 100mm
Material: Q195/Q235 carbon steel, aluminum, copper
Surface treatment: polished, electro galvanized, hot dipped galvanized
Type: flat head clout nail, coil roofing nail
Head type: Flatted head, checkered head, round head
Shank: smooth shank, ring shank, fluted shank

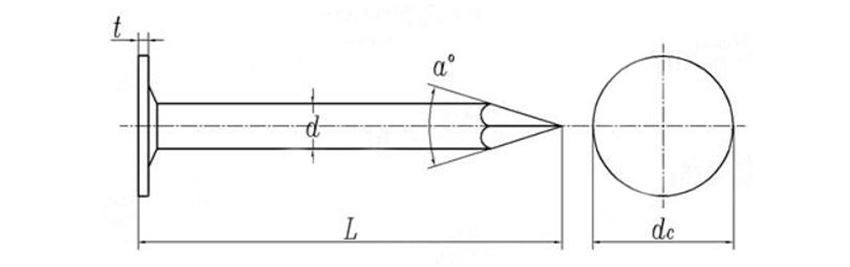

d | Nominal | 3.05 | 3.05 | 3.05 | 3.05 | 3.05 | 3.05 | 3.05 | 3.05 | 3.05 | 3.05 | 3.05 | 3.05 |
Max | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 | |
Min | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
L | Nominal | 12.7 | 15.9 | 19.0 | 22.2 | 25.4 | 28.6 | 31.8 | 38.1 | 44.5 | 50.8 | 63.5 | 76.2 |
Max | 13.9 | 17.1 | 20.2 | 23.4 | 26.6 | 30.2 | 33.4 | 39.7 | 46.1 | 52.4 | 65.1 | 77.8 | |
Min | 11.5 | 14.7 | 17.8 | 21.0 | 24.2 | 27.0 | 30.2 | 36.5 | 42.9 | 49.2 | 61.9 | 74.6 | |
a | 35° | 35° | 35° | 35° | 35° | 35° | 35° | 35° | 35° | 35° | 35° | 35° | |
dc | Nominal | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
Max | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
Min | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | |
t | Reference | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |

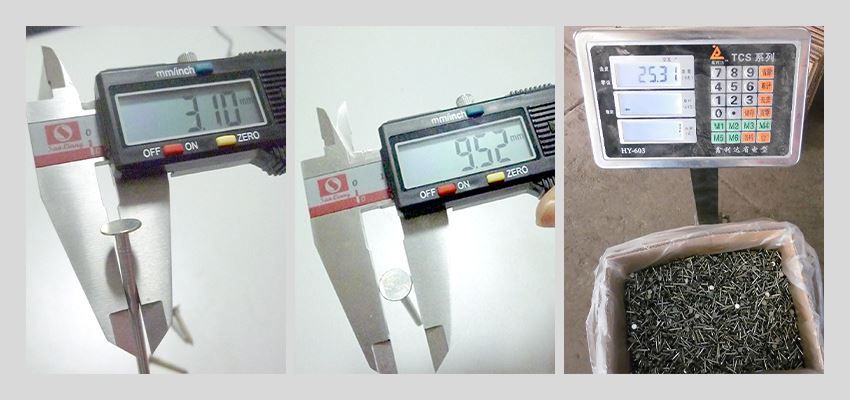

Quality Control

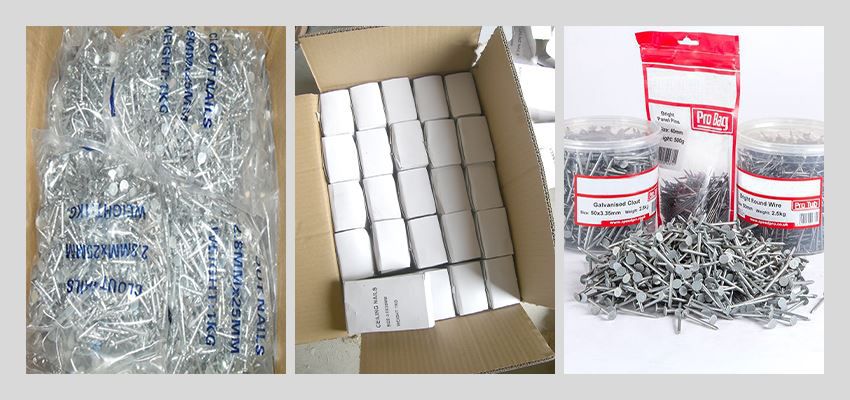

Packaging Details
1. Bulk packing, 25kg/ctn
2. Small packing: 1kg/small box, 25boxes/ctn
3. Small packing:1kg/plastic bag, 25bags/ctn
4. At customers' special request on weight
5. With or without pallet
Product Advantage

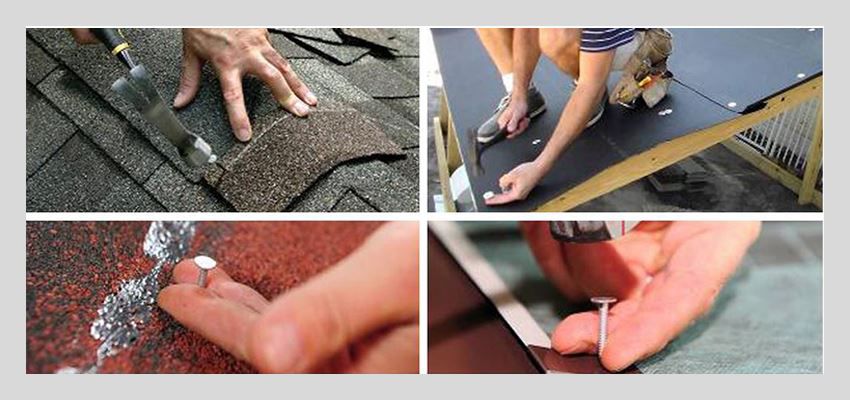

Application
Clout nail is used to fix felts and other objects. In order to prevent the nail cap from leaking down, linoleum washer is generally installed when using.
