oilfield shaker screen VSM 300 primary composite frame screen

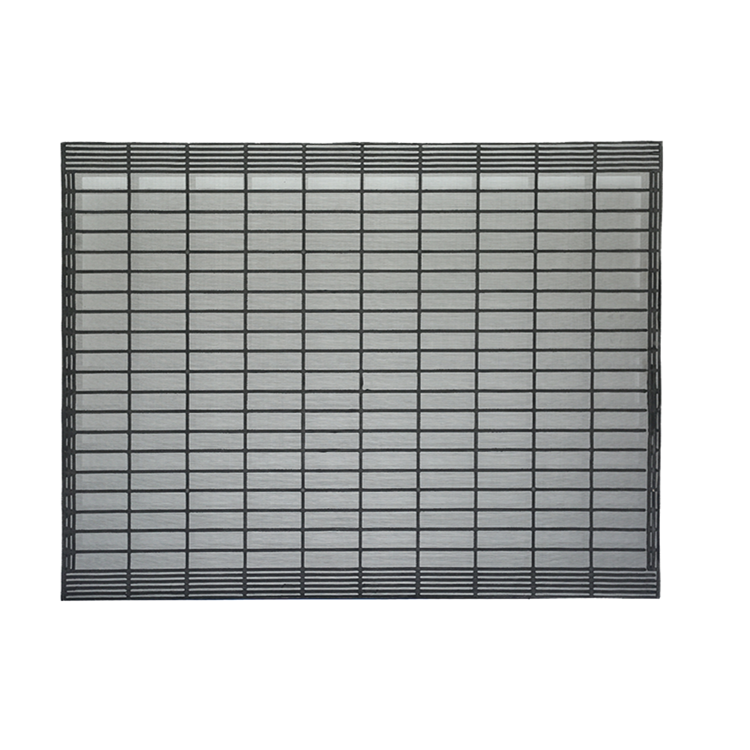

Brandt VSM 300 Primary composite frame shaker screen

Replacement Primary Screens for Lower Deck of Brandt VSM 300 Shaker

Technical Parameter

Model No. : GM-VSM 300P/1

Size : 889x686mm

Mesh Material: stainless steel 304/316

Body Material: composite

API RP 13C Designation: API 10 – API 325.

Package: 1 pcs per carton

GM-VSM 300 primary shale shaker screen is manufactured for the replacement screen which compatible with Brandt VSM 300 shale shaker. It is installed on the lower (primary) deck of the VSM 300 which mounted on a constant 7° ramp. Primary screen offers a higher throughput capacity and ensures consistent conveyance of solids thus minimize the solids build-up.

Adaptable Shale Shaker Model

GM-VSM 300 primary shaker screens are used as the substitute screen for

? Lower deck screen (4 screens) of Brandt VSM 300 shale shaker.

? Brandt VSM 300 vibrating screens.

? Brandt VSM 300 mud cleaner.
